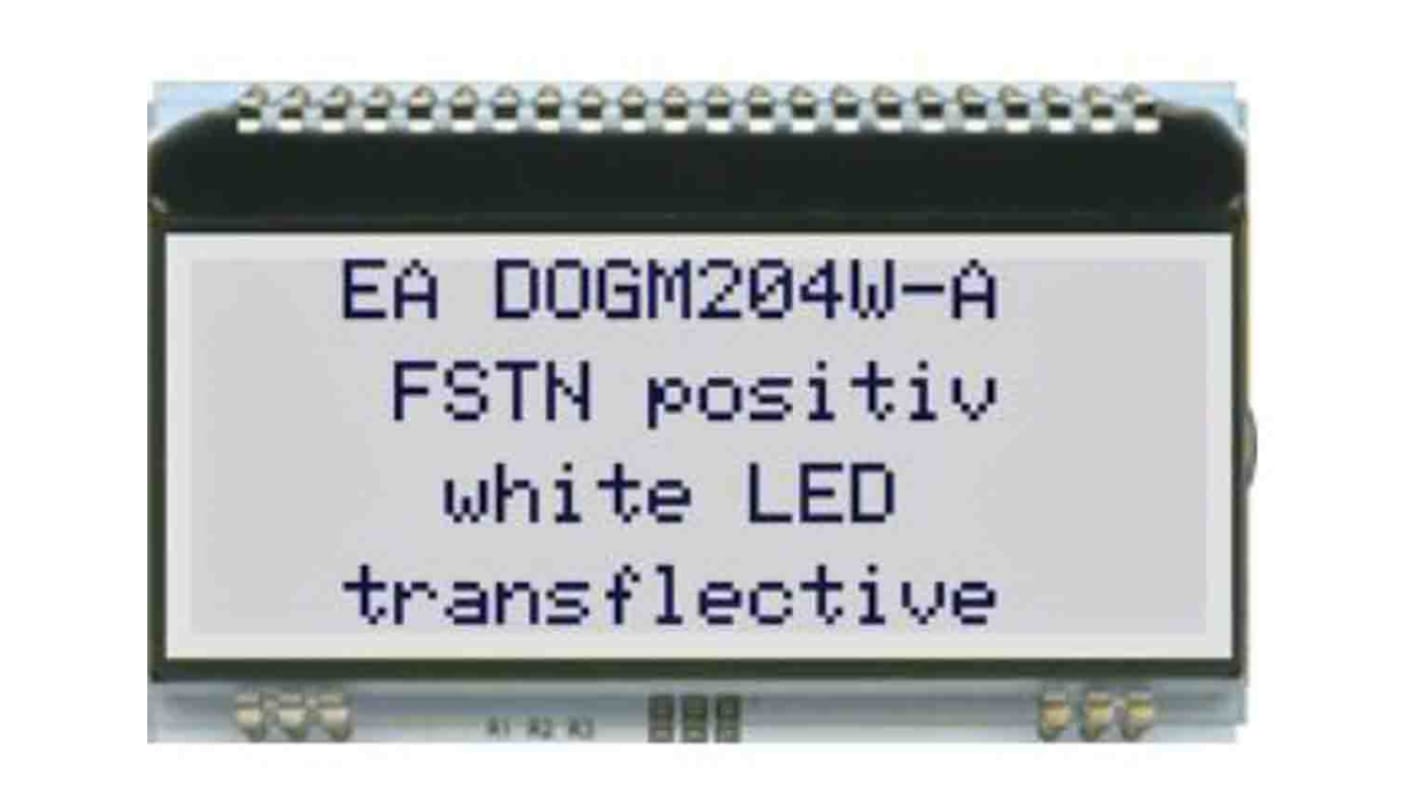

Display Visions EA DOGM204W-A EA DOG LCD Display
- RS Stock No.:
- 197-1261
- Mfr. Part No.:
- EA DOGM204W-A
- Brand:
- Display Visions
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 197-1261
- Mfr. Part No.:
- EA DOGM204W-A
- Brand:
- Display Visions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Display Visions | |
| Character Rows | 4 | |
| Characters per Row | 20 | |
| Interface Type | I2C, SPI | |
| Backlight Type | LED | |
| Controller Type | SSD1803A | |
| Display Matrix Technology | FSTN | |
| Voltage Rating | 3.3V | |
| Bezel Included | Yes | |
| Series | EA DOG | |
| Current Rating | 250µA | |
Select all | ||
|---|---|---|
Brand Display Visions | ||
Character Rows 4 | ||
Characters per Row 20 | ||
Interface Type I2C, SPI | ||
Backlight Type LED | ||
Controller Type SSD1803A | ||
Display Matrix Technology FSTN | ||
Voltage Rating 3.3V | ||
Bezel Included Yes | ||
Series EA DOG | ||
Current Rating 250µA | ||
- COO (Country of Origin):
- CN
The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.
4x20 character with 4.8 mm height.
No mounting required, simply solder into PCB
LED backlight 3 through 80mA at 3.3V or 2 through 40mA at 5V
No mounting required, simply solder into PCB
LED backlight 3 through 80mA at 3.3V or 2 through 40mA at 5V
