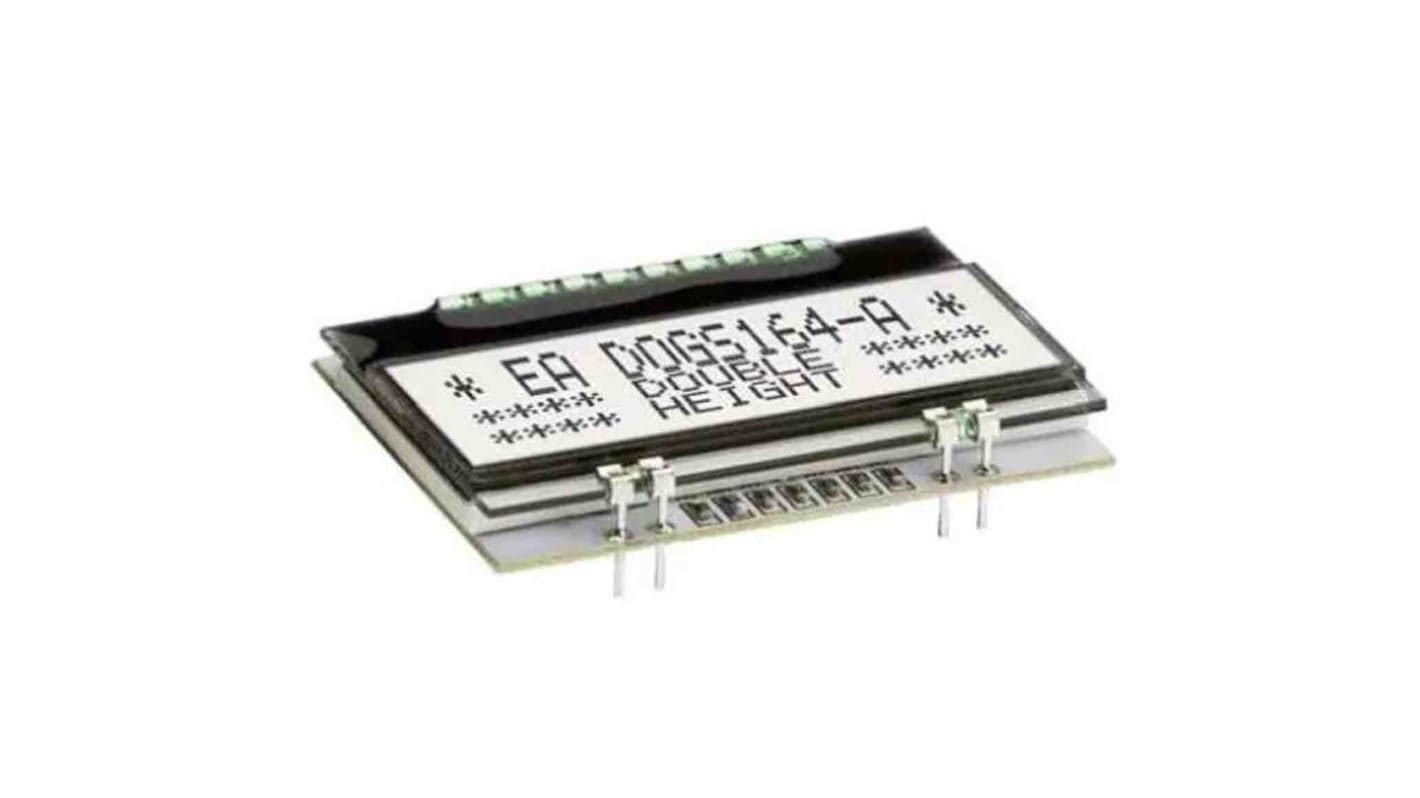

Display Visions EA DOGS164N-A EA DOG LCD Display

View all LCD Monochrome Displays
Unavailable
RS will no longer stock this product.
RS Stock No.:
197-1253
Mfr. Part No.:
EA DOGS164N-A
Brand:
Display Visions
Find similar products by selecting one or more attributes.
Select all

Brand

Display Visions

Character Rows

4

Characters per Row

16

Interface Type

I2C, SPI

Backlight Type

LED

Controller Type

SSD1803A

Display Matrix Technology

FSTN

Voltage Rating

3.3V

Bezel Included

No

Current Rating

440µA

Series

EA DOG

COO (Country of Origin):
CN
The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.

Controller SSD1803A with integrated graphic RAM.
High contrast LCD supertwist display.
LED backlighting 45mA
No mounting required because it can be soldered directly onto PCB.
