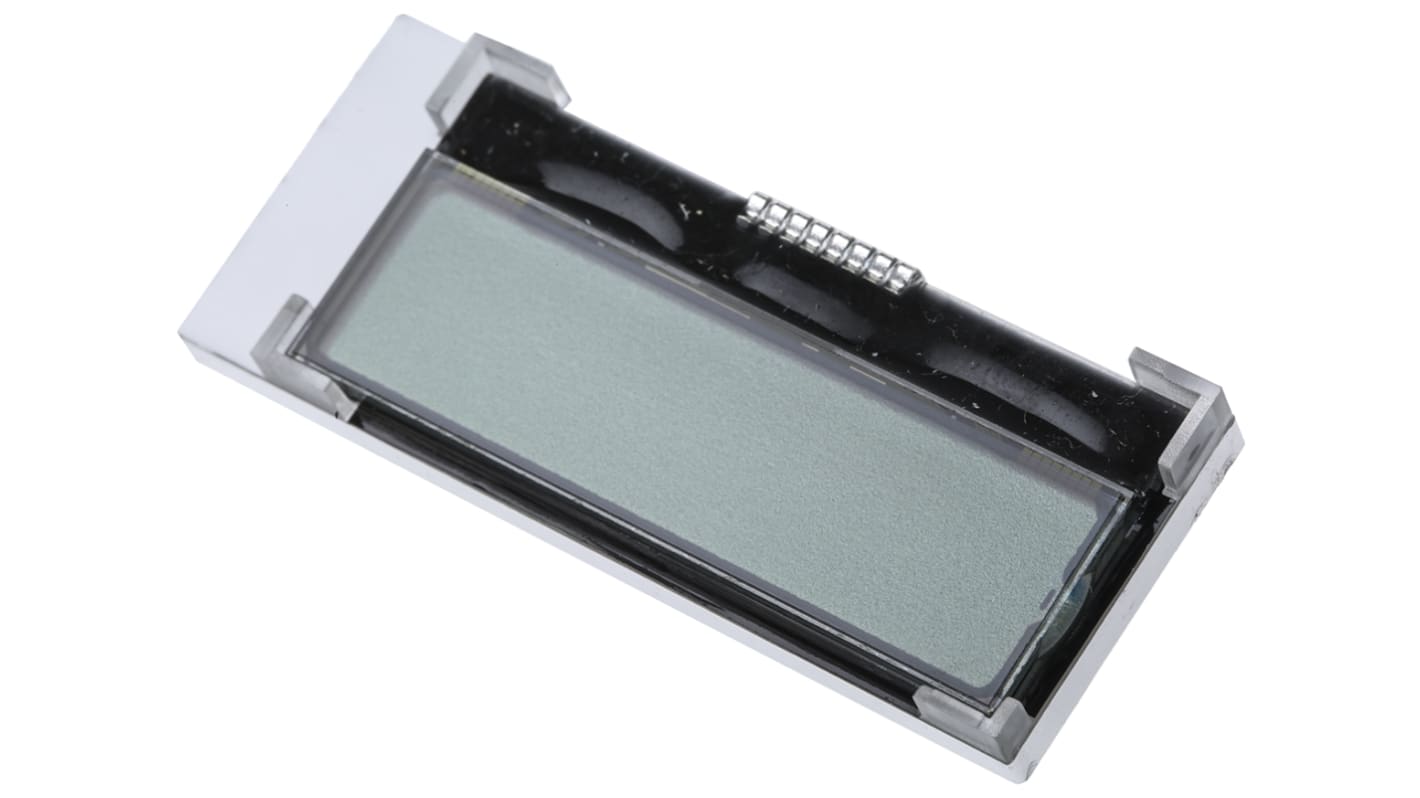

Midas MCCOG21605B6W-FPTLWI Alphanumeric LCD Display White, 2 Rows by 16 Characters, Transflective
- RS Stock No.:
- 146-0821
- Mfr. Part No.:
- MCCOG21605B6W-FPTLWI
- Brand:
- Midas
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 146-0821
- Mfr. Part No.:
- MCCOG21605B6W-FPTLWI
- Brand:
- Midas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Display Type | Alphanumeric | |
| Character Matrix | 2 Rows by 16 Characters | |
| Character Rows | 2 | |
| Characters per Row | 16 | |
| Character Width | 2mm | |
| Character Height | 3.8mm | |
| Viewing Area Dimensions | 40 x 10mm | |
| Viewing Area Height | 10mm | |
| Viewing Area Width | 40mm | |
| External Depth | 9.3mm | |
| Background Colour | White | |
| Backlight Type | LED | |
| External Height | 20.7mm | |
| External Width | 51.2mm | |
| External Dimensions | 51.2 x 20.7 x 9.3mm | |
| Display Mode | Transflective | |
| Display Matrix Technology | FSTN | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Driver Mounting | COG | |
| Operating Temperature Range | -20 → +70°C | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Display Type Alphanumeric | ||
Character Matrix 2 Rows by 16 Characters | ||
Character Rows 2 | ||
Characters per Row 16 | ||
Character Width 2mm | ||
Character Height 3.8mm | ||
Viewing Area Dimensions 40 x 10mm | ||
Viewing Area Height 10mm | ||
Viewing Area Width 40mm | ||
External Depth 9.3mm | ||
Background Colour White | ||
Backlight Type LED | ||
External Height 20.7mm | ||
External Width 51.2mm | ||
External Dimensions 51.2 x 20.7 x 9.3mm | ||
Display Mode Transflective | ||
Display Matrix Technology FSTN | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Driver Mounting COG | ||
Operating Temperature Range -20 → +70°C | ||
- COO (Country of Origin):
- TW
Midas Character COG LCD Displays
The chip-on-glass (COG) LCD displays, from Midas Displays, are available in 16, 20 and 24 character options. Technologies include super twisted nematic (STN) or film compensated super twisted nematic (FSTN). Alternative appearances are created with positive and negative modes available in the COB LCD displays. The COG LCD displays have an I2C interface and built in controller and include standard on board character sets. The COB LCD displays are available with a viewing angle of 6 o'clock.
I2C interface
Operating temperature -20 to +70 °C
STN and FSTN display options
Operating temperature -20 to +70 °C
STN and FSTN display options
