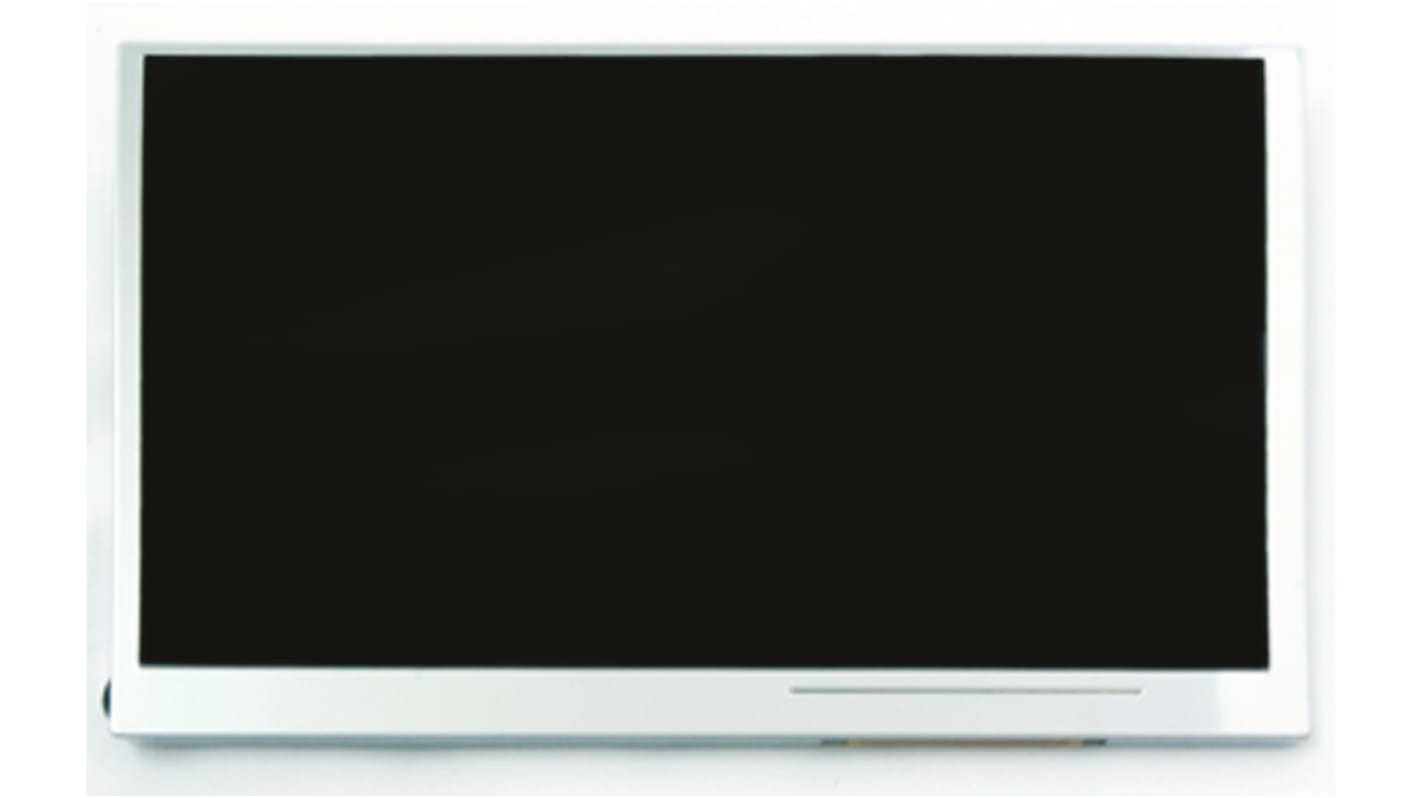

Ampire AM-800480RCTMQW-A1H TFT LCD Colour Display, 7in WVGA, 800 x 480pixels

  • RS Stock No. 830-4707
  • Mfr. Part No. AM-800480RCTMQW-A1H
  • Brand Ampire
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Ampire High Brightness TFT LCD Display Panels

This family of displays, from Ampire, are high brightness TFT LCD displays. They utilise an amorphous silicon TFT-LCD with driver unit, stainless bezel and white LED backlight. The Ampire displays also have a 3.3V built-in power supply circuit. Available in a variety of display sizes, this family of TFT displays are ideal for a wide variety of applications. This family of Ampire displays are good quality and reliable TFT LCD display.

Features of the Ampire high brightness TFT LCD displays:
- TFT LCD (thin film transistor liquid crystal display) modules
- Variety of display sizes
- Colour arrangement: RGB-stripe

Ampire Colour Graphic Displays

Specifications
Attribute Value
Diagonal Display Size 7in
Interface Type Serial
Resolution 800 x 480pixels
Touch Screen No
Viewing Area Dimensions 152.4 x 94.44mm
Touch Screen Type None
Supply Voltage 3.3 V
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 165 x 6.76 x 104.44mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Graphics Array Type WVGA
Brightness 1000cd/m²
Height 104.44mm
Response Time 16ms
Viewing Area Width 152.4mm
Aspect Ratio 16:9
Depth 6.76mm
Number of Colours 262,144
Width 165mm
Viewing Area Height 94.44mm
Operating Temperature Range -20 → +70°C
Contrast Ratio 400:1
12 In stock for FREE next working day delivery
Price Each
£ 86.40
(exc. VAT)
£ 103.68
(inc. VAT)
Units
Per unit
1 - 4
£86.40
5 +
£84.70
