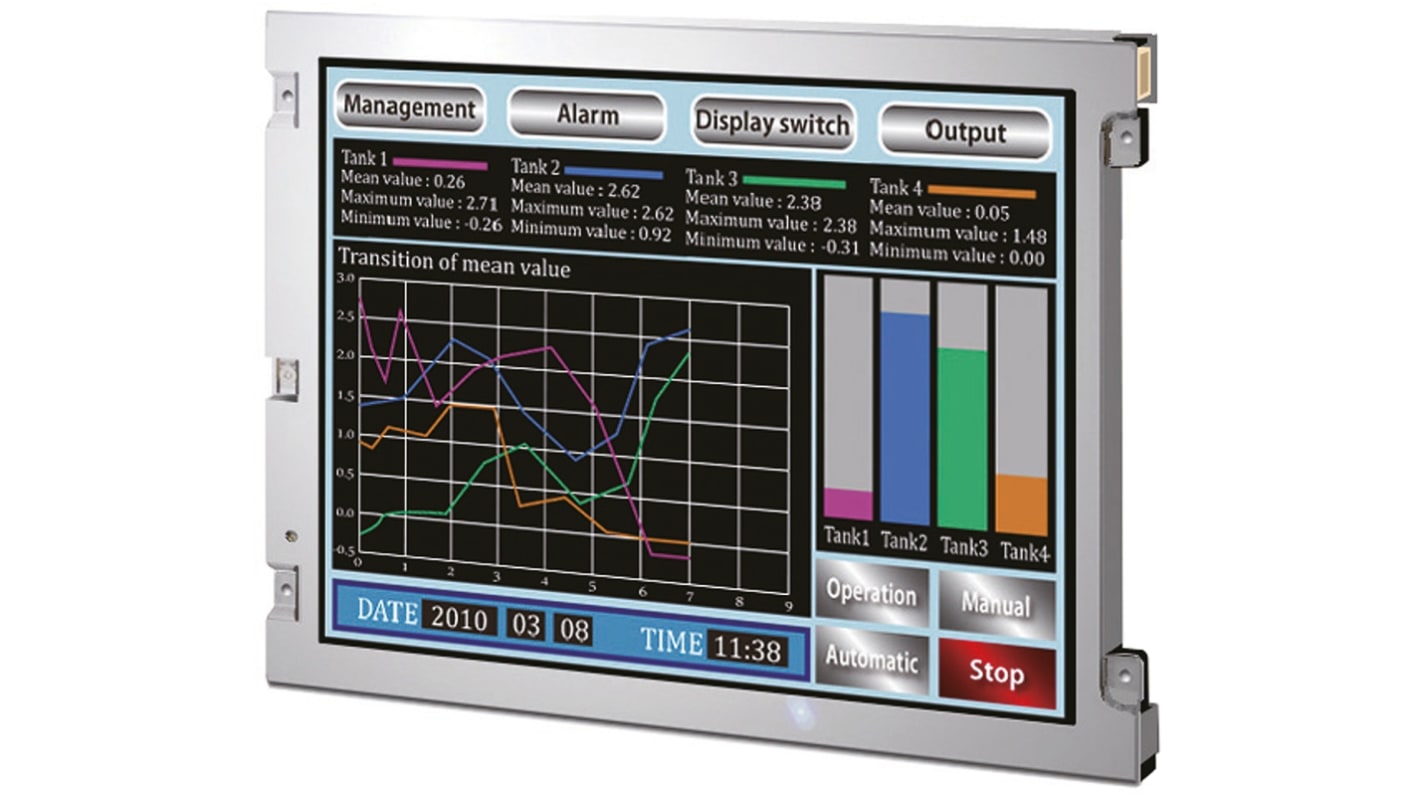

NLT NL8060BC21-11 TFT LCD Colour Display, 8.4in SVGA, 800 x 600pixels
- RS Stock No.:
- 814-9311
- Mfr. Part No.:
- NL8060BC21-11
- Brand:
- NLT
Discontinued
- RS Stock No.:
- 814-9311
- Mfr. Part No.:
- NL8060BC21-11
- Brand:
- NLT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NLT | |
| Diagonal Display Size | 8.4in | |
| Interface Type | LVDS | |
| Resolution | 800 x 600pixels | |
| Touch Screen | No | |
| Viewing Area Dimensions | 170.4 x 127.8mm | |
| Touch Screen Type | None | |
| Supply Voltage | 3.3 V | |
| Backlight Type | LED | |
| Dimensions | 200 x 8.7 x 152mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Brightness | 400cd/m² | |
| Graphics Array Type | SVGA | |
| Width | 200mm | |
| Viewing Area Width | 127.8mm | |
| Number of Colours | 16,777,216 | |
| Viewing Area Height | 170.4mm | |
| Contrast Ratio | 800:1 | |
| Aspect Ratio | 4:3 | |
| Height | 152mm | |
| Series | NLT | |
| Operating Temperature Range | -30 → +80°C | |
| Voltage Rating | 12V | |
| Depth | 8.7mm | |
| Response Time | 18ms | |
| Select all | ||
|---|---|---|
Brand NLT | ||
Diagonal Display Size 8.4in | ||
Interface Type LVDS | ||
Resolution 800 x 600pixels | ||
Touch Screen No | ||
Viewing Area Dimensions 170.4 x 127.8mm | ||
Touch Screen Type None | ||
Supply Voltage 3.3 V | ||
Backlight Type LED | ||
Dimensions 200 x 8.7 x 152mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Brightness 400cd/m² | ||
Graphics Array Type SVGA | ||
Width 200mm | ||
Viewing Area Width 127.8mm | ||
Number of Colours 16,777,216 | ||
Viewing Area Height 170.4mm | ||
Contrast Ratio 800:1 | ||
Aspect Ratio 4:3 | ||
Height 152mm | ||
Series NLT | ||
Operating Temperature Range -30 → +80°C | ||
Voltage Rating 12V | ||
Depth 8.7mm | ||
Response Time 18ms | ||
NLT TFT Colour LCD Modules
The TFT Colour LCD Modules, from NLT Technologies (formerly NEC), are high quality displays designed for industrial use. With a long production lifetime, the TFT LCD modules are ideal for industrial applications which require a display to last. NLT’s TFT LCD modules are composed of the amorphous silicon thin film transistor liquid crystal display (a-So TFT LCD) panel structure with driver LSIs for driving the TFT array and backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a colour-filter glass substrate. The NLT series of TFT Colour LCD Modules have an LVDS interface and are supported by specific interface kits. Their wide viewing angle, high contrast and low reflection make the displays suitable for use in industrial applications.
Adoption of ST-NLT (Super-Transmissive Natural Light TFT)
High luminance
High contrast
Low reflection
Wide viewing angle
Wide temperature range
LVDS interface
Reversible-scan direction
Selectable 8-bit or 6-bit digital signals for data of RGB
High luminance
High contrast
Low reflection
Wide viewing angle
Wide temperature range
LVDS interface
Reversible-scan direction
Selectable 8-bit or 6-bit digital signals for data of RGB
