NEWHAVEN DISPLAY INTERNATIONAL NHD-3.5-320240JF-ASXP-CTP IPS TFT LCD Colour Display / Touch Screen, 3.5in, 320 x
- RS Stock No.:
- 262-4111
- Mfr. Part No.:
- NHD-3.5-320240JF-ASXP-CTP
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
97 In stock - FREE next working day delivery available
Added
Price Each
£48.09
(exc. VAT)
£57.71
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £48.09 |
| 5 + | £46.89 |
- RS Stock No.:
- 262-4111
- Mfr. Part No.:
- NHD-3.5-320240JF-ASXP-CTP
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

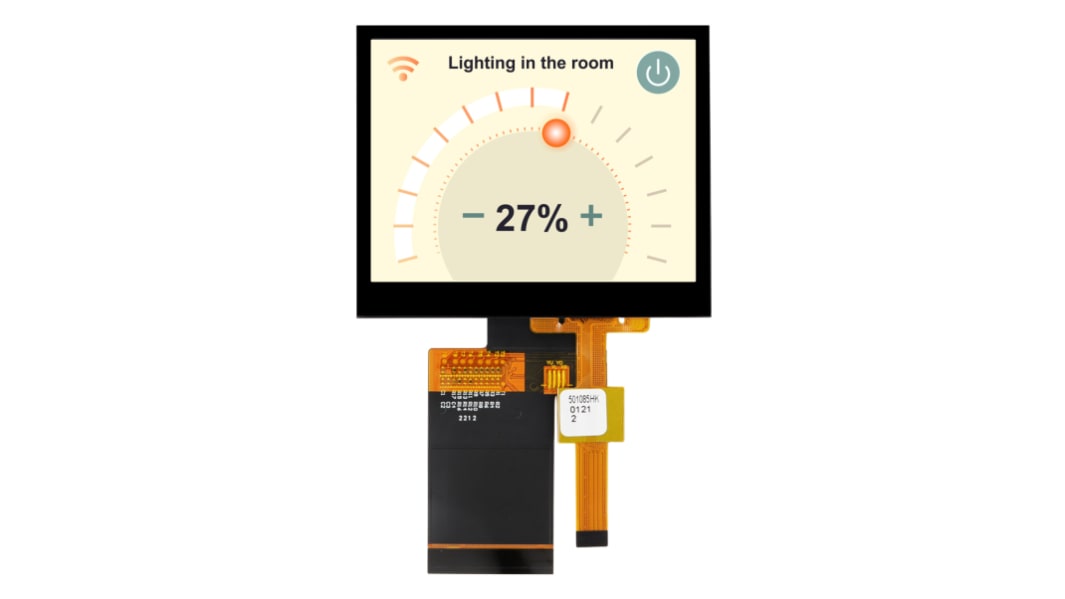

The NEWHAVEN DISPLAY INTERNATIONAL LCD display is a 320 x 240 pixel resolution IPS TFT display. The LCD screen includes IPS technology which delivers enhanced color reproduction, better image consistency, sunlight readable capabilities with high brightness backlight and boasts superior optical characteristics at any angle. This TFT is RoHS compliant and has a multi touch capacitive touchscreen.
Built in ST7272A IC driver
EMI shielding
Connection type is 40 pin FFC
Display mode is transmissive
EMI shielding
Connection type is 40 pin FFC
Display mode is transmissive
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 3.5in |
| Interface Type | RGB |
| Resolution | 320 x 240pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 70.68 x 53.16mm |
| Supply Voltage | 3.3 V |
| Touch Screen Type | Capacitive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | dc |
| Dimensions | 76.9 x 63.9 x 4.9mm |
| Display Matrix Technology | IPS TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Brightness | 900cd/m² |
| Operating Temperature Range | -20 → 70°C |
| Viewing Area Width | 53.16mm |
| Voltage Rating | 3.3V |
| Display Type | TFT |
| Width | 63.9mm |
| Power Supply Included | No |
| Height | 4.9mm |
| Series | NHD |
- RS Stock No.:
- 262-4111
- Mfr. Part No.:
- NHD-3.5-320240JF-ASXP-CTP
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
