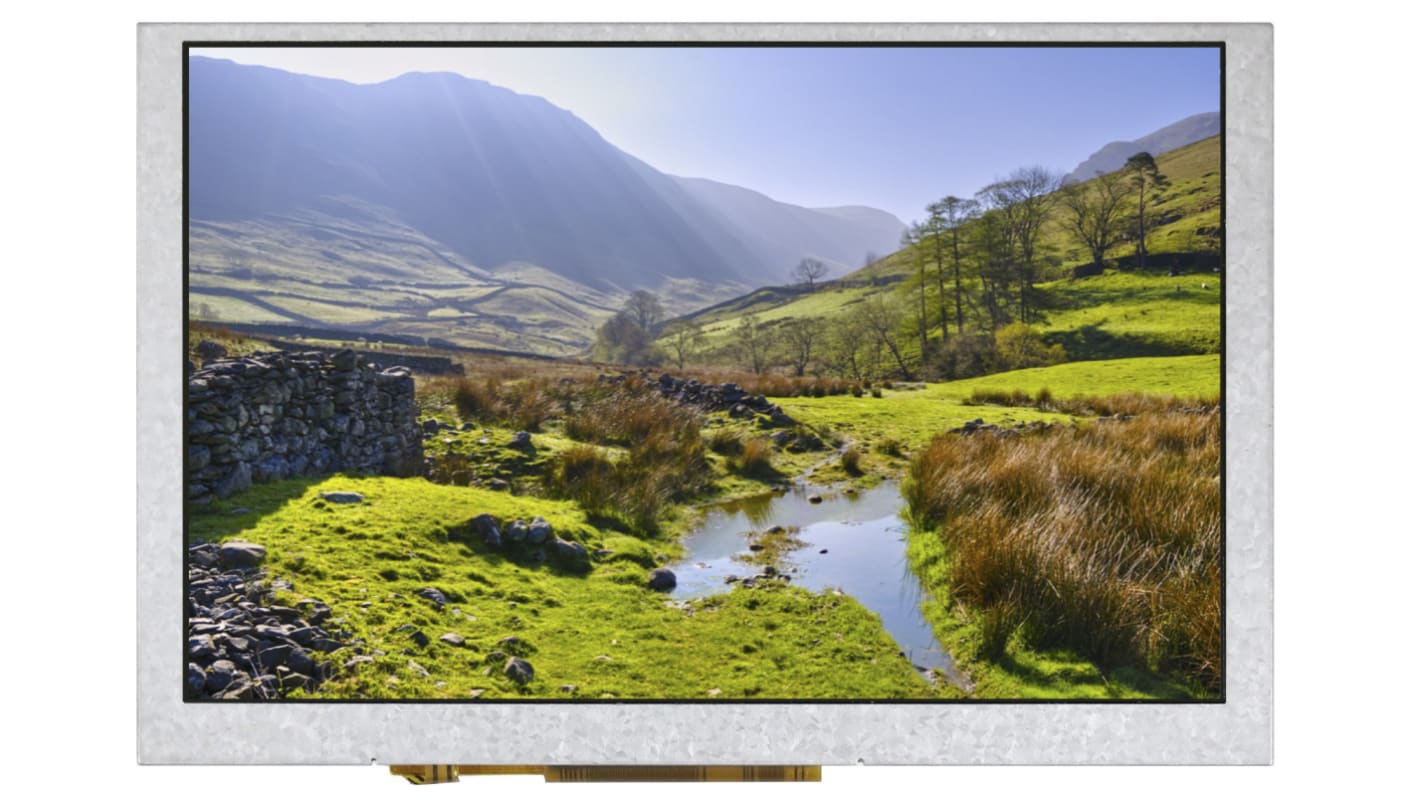

Midas MCT050ACA0TW800480LML TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels
- RS Stock No.:
- 168-5711
- Mfr. Part No.:
- MCT050ACA0TW800480LML
- Brand:
- Midas
Discontinued
- RS Stock No.:
- 168-5711
- Mfr. Part No.:
- MCT050ACA0TW800480LML
- Brand:
- Midas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 5in | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 108 x 64.8mm | |
| Supply Voltage | 3,1 V | |
| Touch Screen Type | Resistive | |
| Backlight Type | CCFL, LED | |
| Dimensions | 120.7 x 75.8 x 9.5mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 300cd/m² | |
| Height | 9,5mm | |
| Power Supply Included | No | |
| Current Rating | 150mA | |
| Response Time | 30 ms, 50 ms | |
| Depth | 75,8mm | |
| Viewing Area Width | 108mm | |
| Voltage Rating | 3,1V | |
| Operating Temperature Range | -20 → +70°C | |
| Series | A | |
| Viewing Area Height | 64,8mm | |
| Contrast Ratio | 700 | |
| Width | 120,7mm | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 5in | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 108 x 64.8mm | ||
Supply Voltage 3,1 V | ||
Touch Screen Type Resistive | ||
Backlight Type CCFL, LED | ||
Dimensions 120.7 x 75.8 x 9.5mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 300cd/m² | ||
Height 9,5mm | ||
Power Supply Included No | ||
Current Rating 150mA | ||
Response Time 30 ms, 50 ms | ||
Depth 75,8mm | ||
Viewing Area Width 108mm | ||
Voltage Rating 3,1V | ||
Operating Temperature Range -20 → +70°C | ||
Series A | ||
Viewing Area Height 64,8mm | ||
Contrast Ratio 700 | ||
Width 120,7mm | ||
These full colour (RGB) displays are available in various resolutions. Orientation includes landscape or portrait versions. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable. All of our TFT products include backlighting using either LED or CCFL.
This product is composed of a TFT LCD panel, Driver IC'S, FPC, control board and a backlight unit.
