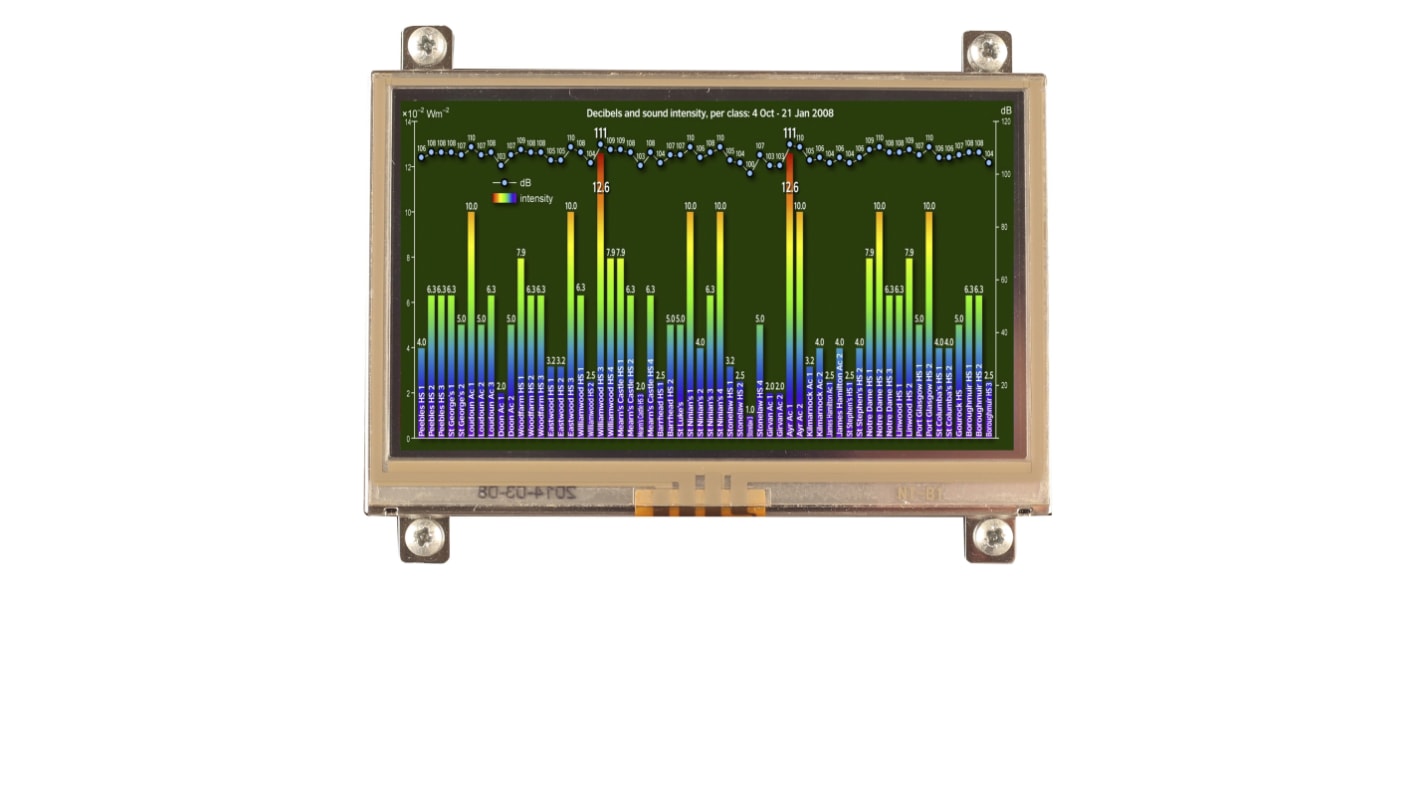

Midas MCT043LCA0TW480272LML TFT LCD Colour Display / Touch Screen, 4.3in, 480 x 272pixels
- RS Stock No.:
- 168-5708
- Mfr. Part No.:
- MCT043LCA0TW480272LML
- Brand:
- Midas
Discontinued
- RS Stock No.:
- 168-5708
- Mfr. Part No.:
- MCT043LCA0TW480272LML
- Brand:
- Midas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 4.3in | |
| Resolution | 480 x 272pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 118 x 89mm | |
| Touch Screen Type | Resistive | |
| Supply Voltage | 30 V | |
| Backlight Type | CCFL, LED | |
| Dimensions | 141.12 x 101.55 x 6.3mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 1500cd/m² | |
| Viewing Area Height | 89.1mm | |
| Series | L | |
| Operating Temperature Range | -20 → +70°C | |
| Depth | 101.55mm | |
| Response Time | 30 ms, 50 ms | |
| Current Rating | 8mA | |
| Power Supply Included | Yes | |
| Voltage Rating | 30V | |
| Viewing Area Width | 117.9mm | |
| Contrast Ratio | 350 | |
| Width | 141.12mm | |
| Height | 6.3mm | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 4.3in | ||
Resolution 480 x 272pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 118 x 89mm | ||
Touch Screen Type Resistive | ||
Supply Voltage 30 V | ||
Backlight Type CCFL, LED | ||
Dimensions 141.12 x 101.55 x 6.3mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 1500cd/m² | ||
Viewing Area Height 89.1mm | ||
Series L | ||
Operating Temperature Range -20 → +70°C | ||
Depth 101.55mm | ||
Response Time 30 ms, 50 ms | ||
Current Rating 8mA | ||
Power Supply Included Yes | ||
Voltage Rating 30V | ||
Viewing Area Width 117.9mm | ||
Contrast Ratio 350 | ||
Width 141.12mm | ||
Height 6.3mm | ||
- COO (Country of Origin):
- CN
These full colour (RGB) displays are available in various resolutions. Orientation includes landscape or portrait versions. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable. All of our TFT products include backlighting using either LED or CCFL.
This product is composed of a TFT LCD panel, Driver IC'S, FPC, control board and a backlight unit.
