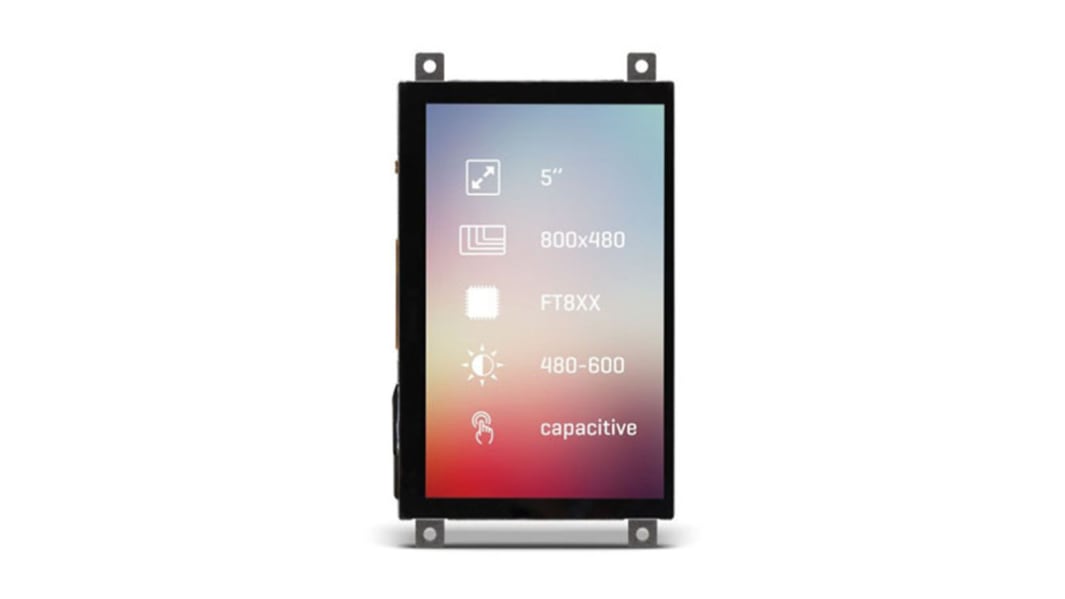

MikroElektronika MIKROE-2171 TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels
- RS Stock No. 139-3642
- Mfr. Part No. MIKROE-2171
- Brand MikroElektronika
Riverdi Colour TFT LCD Displays
A range of high quality, cost effective Riverdi colour TFT LCD displays from MikroElektronika. These portrait format displays are suitable for a wide range of industrial and consumer applications and are available in basic or capacitive touch screen versions. Most of the displays are available with a white or black protective bezel. The interface type is I2C/SPI for the 2.8, 3.5 and 4.3 inch displays, and SPI/QSPI for the 5 and 7 inch displays. A MikroElektronika Riverdi click adapter board is available to allow use of the displays with various items of MikroElektronika hardware, see RS 136-0795.
2.82" Displays, 320 x 240 pixels
MIKROE-2156 (139-3629) – Non touchscreen
MIKROE-2158 (139-3630) – Capacitive Touch
MIKROE-2159 (139-3631) – Capacitive Touch with White Bezel
MIKROE-2160 (139-3632) – Capacitive Touch with Black Bezel
3.5" Displays, 320 x 240 pixels
MIKROE-2161 (139-3633) – Non touchscreen
MIKROE-2163 (139-3635) – Capacitive Touch
4.3" Displays, 480 x 272 pixels
MIKROE-2164 (139-3636) – Non touchscreen
MIKROE-2166 (139-3637) – Capacitive Touch
MIKROE-2167 (139-3638) – Capacitive Touch with White Bezel
MIKROE-2168 (139-3639) – Capacitive Touch with Black Bezel
5.0" Displays, 800 x 480 pixels
MIKROE-2169 (139-3641) – Non touchscreen
MIKROE-2171 (139-3642) – Capacitive Touch
MIKROE-2172 (139-3643) – Capacitive Touch with White Bezel
MIKROE-2173 (139-3644) – Capacitive Touch with Black Bezel
7.0" Displays, 800 x 480 pixels
MIKROE-2174 (139-3645) – Non touchscreen
MIKROE-2176 (139-3646) – Capacitive Touch
MIKROE-2177 (139-3647) – Capacitive Touch with White Bezel
MIKROE-2178 (139-3648) – Capacitive Touch with Black Bezel
MikroElektronika Industrial Displays
| Attribute | Value |
|---|---|
| Diagonal Display Size | 5in |
| Interface Type | QSPI, SPI |
| Resolution | 800 x 480pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 108 x 64.8mm |
| Supply Voltage | 3 → 3.6 V |
| Touch Screen Type | Capacitive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 121.5 x 76.6 x 9.9mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Depth | 9.9mm |
| Number of Colours | 16,777,216 |
| Operating Temperature Range | -20 → +70°C |
| Contrast Ratio | 500:1 |
| Viewing Area Height | 64.8mm |
| Current Rating | 363mA |
| Height | 76.6mm |
| Width | 121.5mm |
| Response Time | 20ms |
| Viewing Area Width | 108mm |
| Brightness | 510cd/m² |
