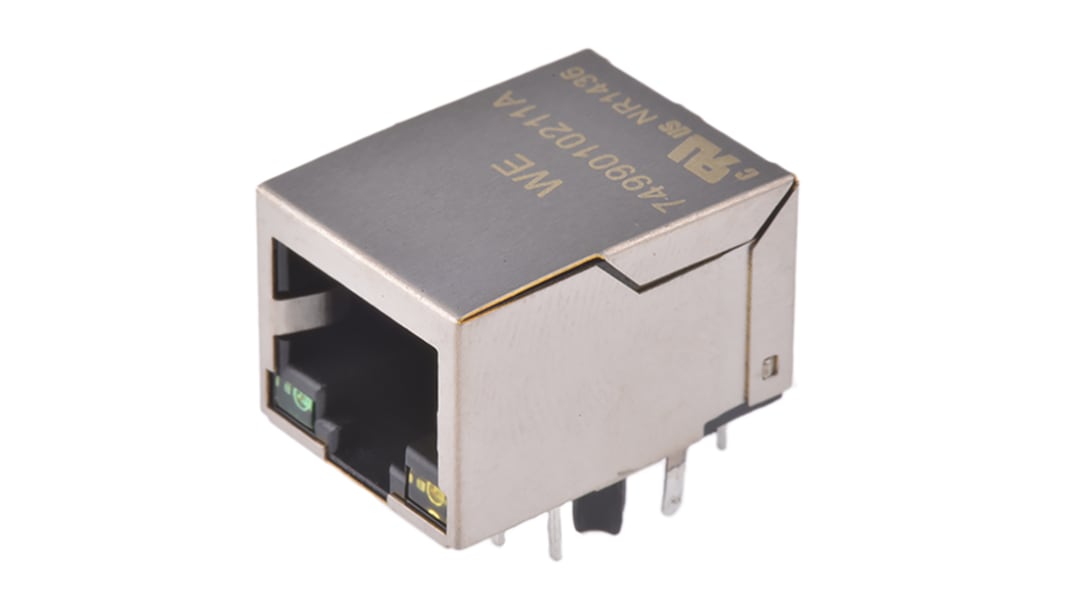

Through Hole Lan Ethernet Transformer, 13.5 x 15.88 x 21.84mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Würth RJ Data Sockets with integrated transformer/ common mode choke

A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.

Features & Benefits

350 μH min. OCL with 8 mA bias Complies with IEEE 802.3
Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.

Specifications
Attribute Value
Number of Output Ports 1
Insertion Loss -1.4dB
Mounting Type Through Hole
Dimensions 13.5 x 15.88 x 21.84mm
Depth 21.84mm
Length 13.5mm
Width 15.88mm
Turns Ratio 1:1
Maximum Temperature +70°C
Maximum Operating Frequency 100MHz
Minimum Operating Frequency 1MHz
Minimum Temperature 0°C
93 In stock - FREE next working day delivery available
Price Each (In a Tube of 31)
£ 6.30
(exc. VAT)
£ 7.56
(inc. VAT)
Units
Per unit
Per Tube*
31 +
£6.30
£195.30
*price indicative
