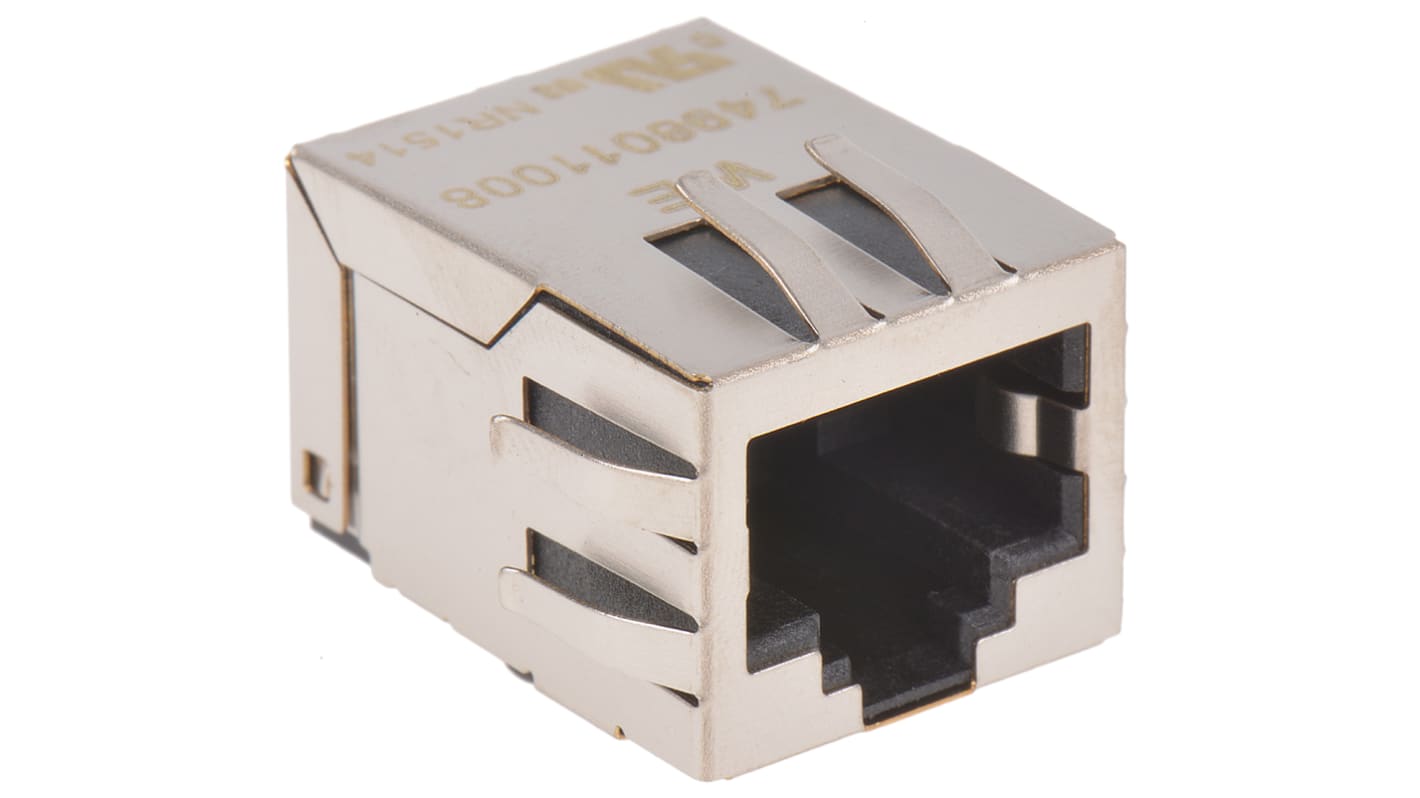

Surface Mount Lan Ethernet Transformer, 13.6 x 16.26 x 21.95mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Würth RJ Data Sockets with integrated transformer/ common mode choke

A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.

Features & Benefits

350 μH min. OCL with 8 mA bias Complies with IEEE 802.3
Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.

Specifications
Attribute Value
Number of Output Ports 1
Insertion Loss -1dB
Mounting Type Surface Mount
Dimensions 13.6 x 16.26 x 21.95mm
Depth 21.95mm
Length 13.6mm
Width 16.26mm
Minimum Temperature -40°C
Turns Ratio 1:1
Minimum Operating Frequency 1MHz
Maximum Temperature +85°C
Maximum Operating Frequency 100MHz
Available to back order for despatch 16/10/2020
Price Each (In a Tray of 70)
£ 5.242
(exc. VAT)
£ 6.29
(inc. VAT)
Units
Per unit
Per Tray*
70 +
£5.242
£366.94
*price indicative
