Roline 1 USB DVI over CATx KVM Extender, 100m
- RS Stock No.:
- 777-6757
- Mfr. Part No.:
- 14.01.3040
- Brand:
- Roline
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£528.12
(exc. VAT)
£633.74
(inc. VAT)
- RS Stock No.:
- 777-6757
- Mfr. Part No.:
- 14.01.3040
- Brand:
- Roline
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Roline | |
| Type | Extender Pair | |
| Video Connection Type | DVI | |
| Number of Ports | 1 | |
| Keyboard/Mouse Connection Type | USB | |
| Number of Displays Supported | 1 | |
| Transmission Method | CATx | |
| Maximum Resolution | 1920 x 1080 | |
| Receiver Dimensions | 131 x 130 x 27mm | |
| Extension Distance | 100m | |
| Transmitter Dimensions | 131 x 130 x 27mm | |
| Receiver Depth | 130mm | |
| Receiver Height | 27mm | |
| Receiver Width | 131mm | |
| Transmitter Depth | 130mm | |
| Transmitter Height | 27mm | |
| Transmitter Width | 131mm | |
Select all | ||
|---|---|---|
Brand Roline | ||
Type Extender Pair | ||
Video Connection Type DVI | ||
Number of Ports 1 | ||
Keyboard/Mouse Connection Type USB | ||
Number of Displays Supported 1 | ||
Transmission Method CATx | ||
Maximum Resolution 1920 x 1080 | ||
Receiver Dimensions 131 x 130 x 27mm | ||
Extension Distance 100m | ||
Transmitter Dimensions 131 x 130 x 27mm | ||
Receiver Depth 130mm | ||
Receiver Height 27mm | ||
Receiver Width 131mm | ||
Transmitter Depth 130mm | ||
Transmitter Height 27mm | ||
Transmitter Width 131mm | ||
- COO (Country of Origin):
- CN

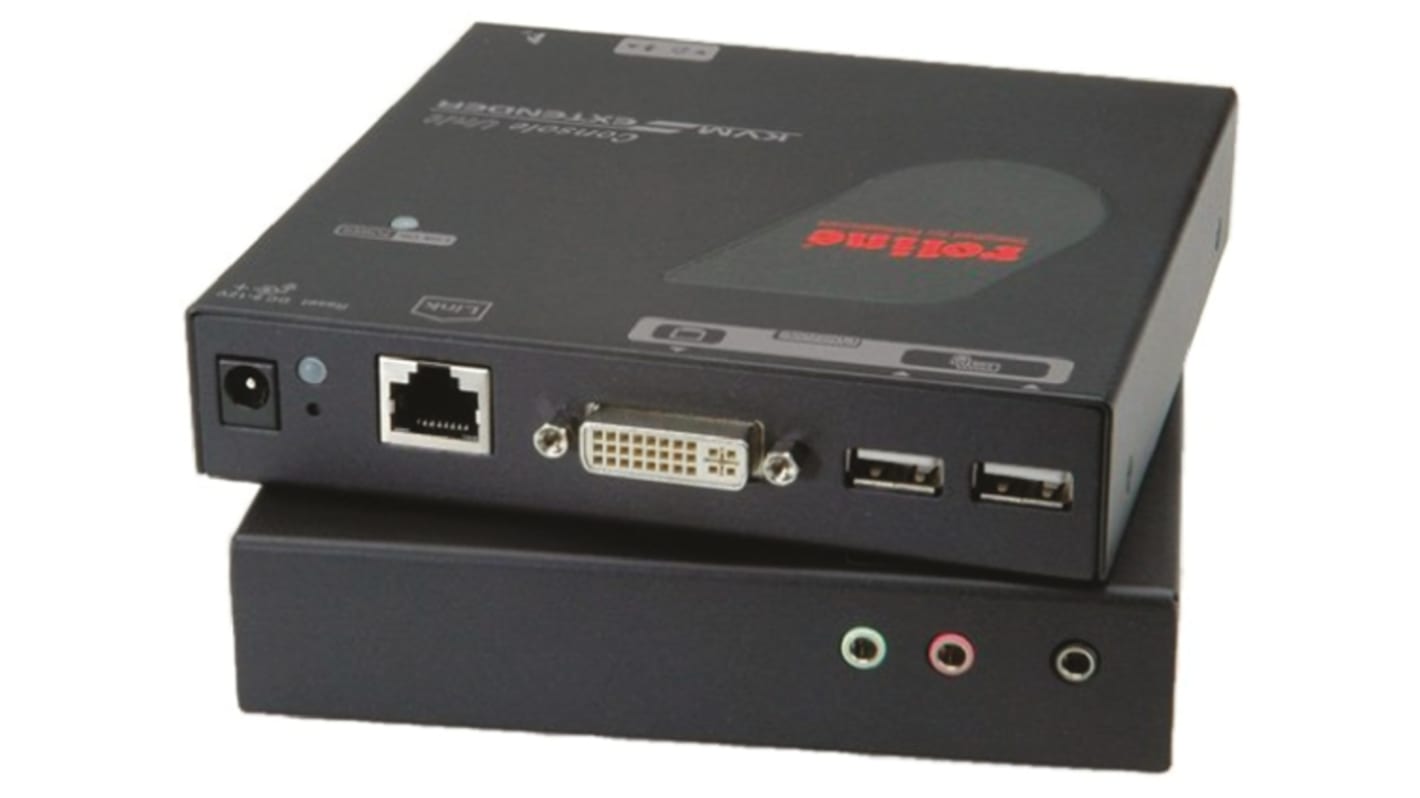

ROLINE KVM Extender
The ROLINE KVM extender enables users to work on a computer from a distance of 100m. Typically, it is a set of transmitter and receiver appliance. This KVM transmitter unit is connected to the computer system and captures the peripheral signals such as universal serial bus (USB) for keyboard and mouse, audio and video.
Supplied with:
Local unit, remote unit, 1x power supply EU plug and a manual.
Supplied with:
Local unit, remote unit, 1x power supply EU plug and a manual.
Features and Benefits
Supports DVI with high-resolution video up to 1600 X 1200 (UXGA), 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
Ability to extend IR control through the Cat.5 connection
Supports PS/2 and USB PC or KVM
Ideal for professional audio/video applications
Audio output on the remote unit
No drivers needed or software required
Power supplied by a single power supply unit
Console unit connectors consist of monitor
Ability to extend IR control through the Cat.5 connection
Supports PS/2 and USB PC or KVM
Ideal for professional audio/video applications
Audio output on the remote unit
No drivers needed or software required
Power supplied by a single power supply unit
Console unit connectors consist of monitor
1x DVI, keyboard/mouse
2x USB A, audio
1x MIC 1xspeaker, 1x RJ-45
Computer unit connectors consist of monitor
Computer unit connectors consist of monitor
1x DVI, keyboard/mouse
USB + PS/2 (Y-cable included), audio
1x MIC 1x speaker
1x RJ-45
Stable, metal housing
Stable, metal housing
