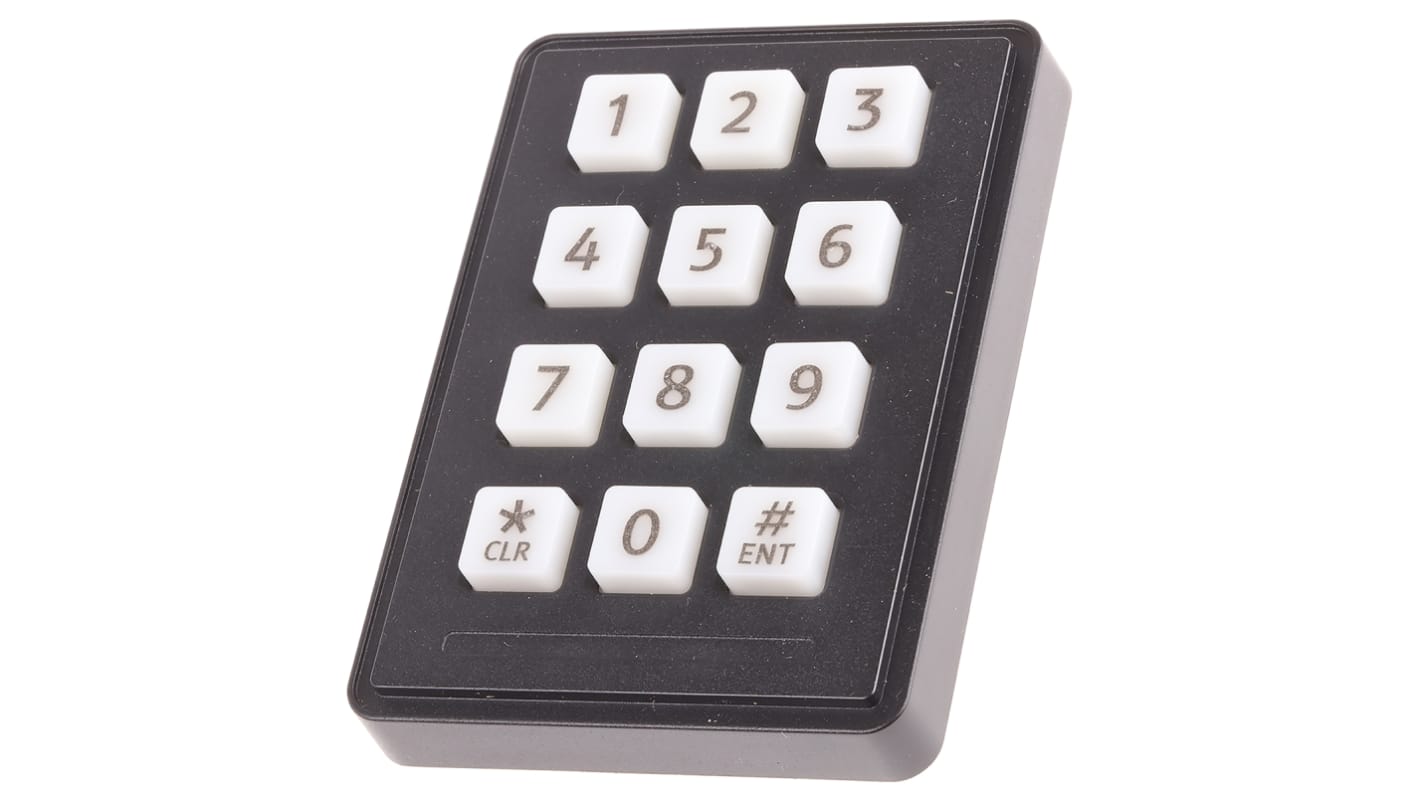

Storm IP65 12 Key Polymer Keypad

  • RS Stock No. 793-3714
  • Mfr. Part No. 7203-12T0202
  • Brand Storm
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Storm 720 TFX Series Sealed Keypads

These 720 TFX Series water resistant keypads from Storm Interface feature tactile keys with a responsive 'over centre' action.

Designed for use in harsh industrial enviroments
Above or below panel installation options
Maximum Switch Rating: 50 mA @ 24 V dc
Operational life of over 2 million cycles per key
Above panel water/ dust ingress IP65 protection rating

Specifications
Attribute Value
Keypad Layout 3 x 4
Number of Keys 12
Keypad Output Matrix
IP Rating IP65
Case Material Polymer
Case Colour Black
Mechanical Life Per Key 2000000Operations
Actuator Colour White
Actuator Material Plastic
Depth Behind Panel 12mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Operating Temperature Range -20 → +60°C
13 In stock for FREE next working day delivery
Price Each
£ 22.26
(exc. VAT)
£ 26.71
(inc. VAT)
Units
Per unit
1 - 4
£22.26
5 - 9
£20.30
10 - 24
£19.11
25 +
£17.35
