Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 877-1895
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Positions | 2 | |
| Switch Operation | Latching | |
| Contact Configuration | DPDT | |
| Contact Current Rating | 5 A | |
| IP Rating | IP40 | |
| Terminal Type | Solder | |
| Case Material | Stainless Steel | |
| Bezel Shape | Round | |
| Depth Behind Panel | 48.5mm | |
| Key Index Angle | 90° | |
| Contact Material | Silver | |
| Standards Met | CE, cUL, UL | |
| Maximum Operating Temperature | +55°C | |
| Mechanical Life | 50000Operations | |
| Operating Temperature Range | -20 → +55°C | |
| Priced to Clear | Yes | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating AC | 250V | |
| Voltage Rating DC | 30V | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Positions 2 | ||
Switch Operation Latching | ||
Contact Configuration DPDT | ||
Contact Current Rating 5 A | ||
IP Rating IP40 | ||
Terminal Type Solder | ||
Case Material Stainless Steel | ||
Bezel Shape Round | ||
Depth Behind Panel 48.5mm | ||
Key Index Angle 90° | ||
Contact Material Silver | ||
Standards Met CE, cUL, UL | ||
Maximum Operating Temperature +55°C | ||
Mechanical Life 50000Operations | ||
Operating Temperature Range -20 → +55°C | ||
Priced to Clear Yes | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating AC 250V | ||
Voltage Rating DC 30V | ||
- COO (Country of Origin):
- TW

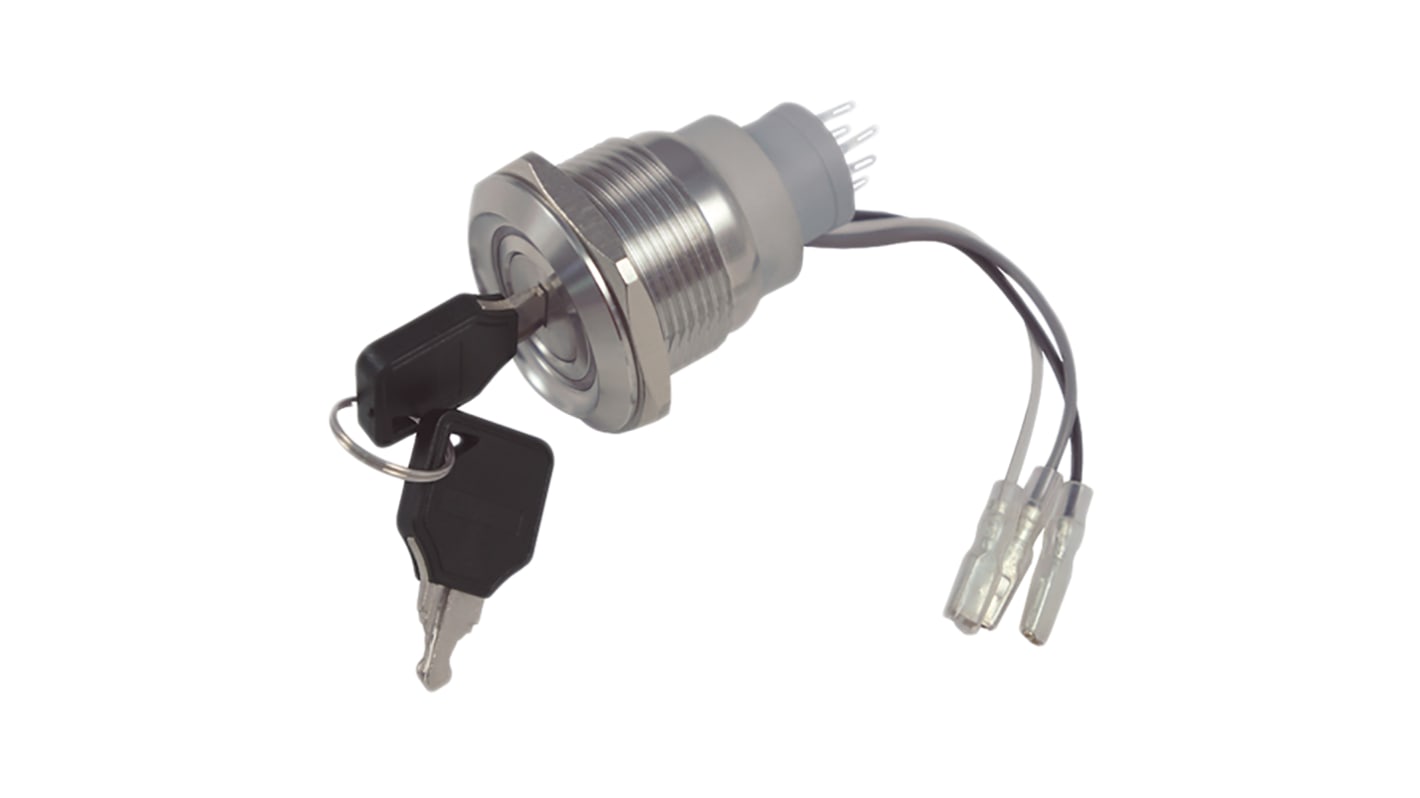

30mm Anti-Vandal Key Lock Switches
Anti-vandal key lock switches with ring illumination for indication. Three LED voltage types are available; 12V, 24V and 220V The illumination shows red when the switch is in the off position and green in the on position. The switches have an impact resistance rating of IK03, and a front panel protection rating of IP40. They are supplied with an LED resistor to protect from forward voltage fluctuations.The switch body and button are constructed from stainless steel with a varnish finish.
Electrical life: 50000 make and break operations at full load
Panel cut-out diameter: 30.2 mm
Keys can be removed in all positions
Panel cut-out diameter: 30.2 mm
Keys can be removed in all positions
