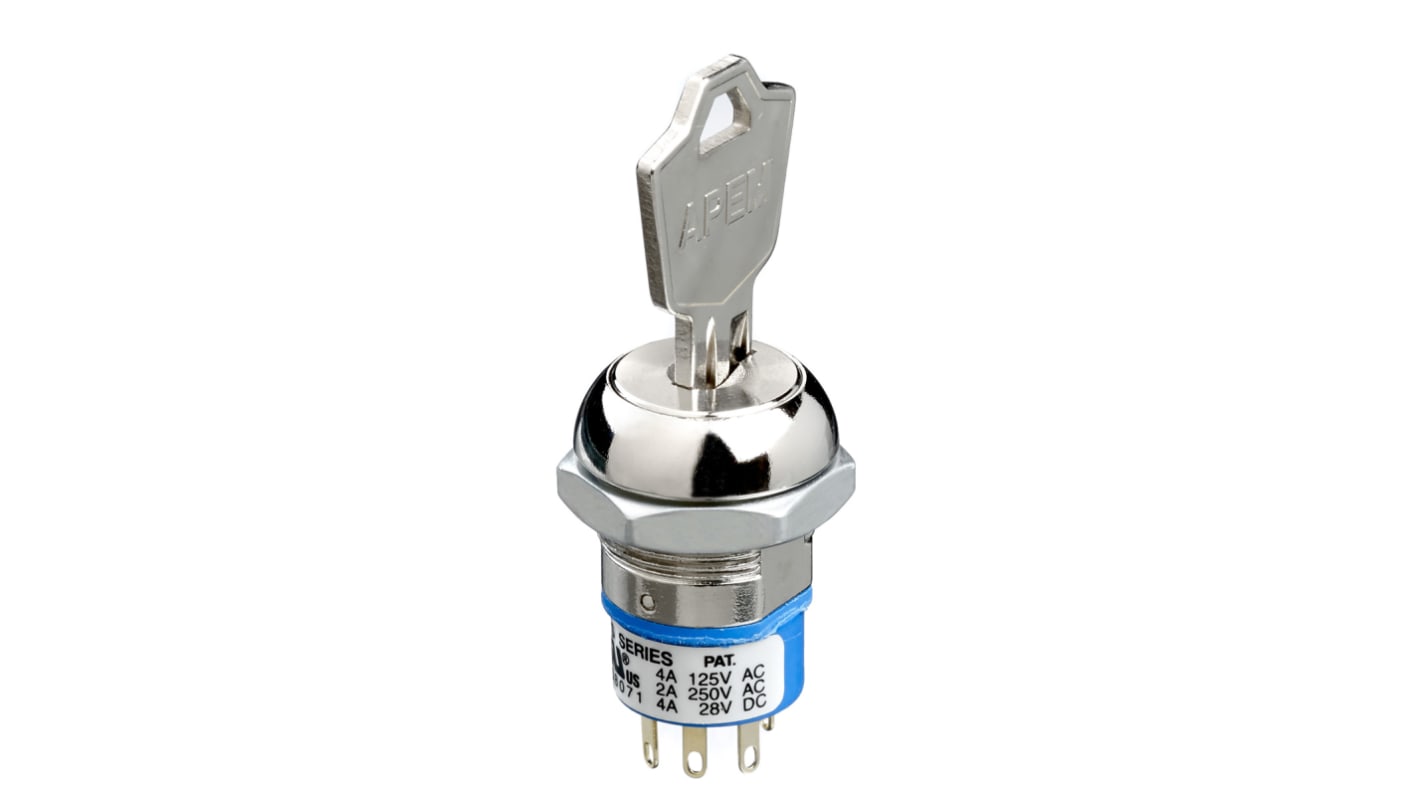

Keylock Switch, DPDT, 4 A 3-Way Flat-Key
- RS Stock No.:
- 125-8396
- Mfr. Part No.:
- LK5BNB126N3
- Brand:
- APEM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-8396
- Mfr. Part No.:
- LK5BNB126N3
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Positions | 3 | |
| Switch Operation | Momentary | |
| Contact Configuration | DPDT | |
| Contact Current Rating | 4 A | |
| Key Type | Flat | |
| Terminal Type | Solder | |
| Case Material | Glass Filled Polyester | |
| Bezel Shape | Round | |
| Application | Automatic Door Control, Automation Control, Communication Systems, Fire Alarm Panels, Power Distribution, Transportation | |
| Depth Behind Panel | 27.3mm | |
| Key Index Angle | 45° | |
| Contact Material | Copper Alloy | |
| Voltage Rating DC | 28V | |
| Voltage Rating AC | 125V | |
| Standards Met | cULUs Listed File E83438 | |
| Minimum Operating Temperature | -30°C | |
| Mechanical Life | 6000Cycles | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand APEM | ||
Number of Positions 3 | ||
Switch Operation Momentary | ||
Contact Configuration DPDT | ||
Contact Current Rating 4 A | ||
Key Type Flat | ||
Terminal Type Solder | ||
Case Material Glass Filled Polyester | ||
Bezel Shape Round | ||
Application Automatic Door Control, Automation Control, Communication Systems, Fire Alarm Panels, Power Distribution, Transportation | ||
Depth Behind Panel 27.3mm | ||
Key Index Angle 45° | ||
Contact Material Copper Alloy | ||
Voltage Rating DC 28V | ||
Voltage Rating AC 125V | ||
Standards Met cULUs Listed File E83438 | ||
Minimum Operating Temperature -30°C | ||
Mechanical Life 6000Cycles | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
Apem 19mm Keylock Switches LK Series
Features and Benefits
• Single and double pole options
• Maximum of four positions
• Maintained, momentary switching
• Various key pull positions
• 45° or 90° indexing
• Full load mechanical life: 6000 cycles
• UL Approved
• Maximum of four positions
• Maintained, momentary switching
• Various key pull positions
• 45° or 90° indexing
• Full load mechanical life: 6000 cycles
• UL Approved
Approvals
UL
