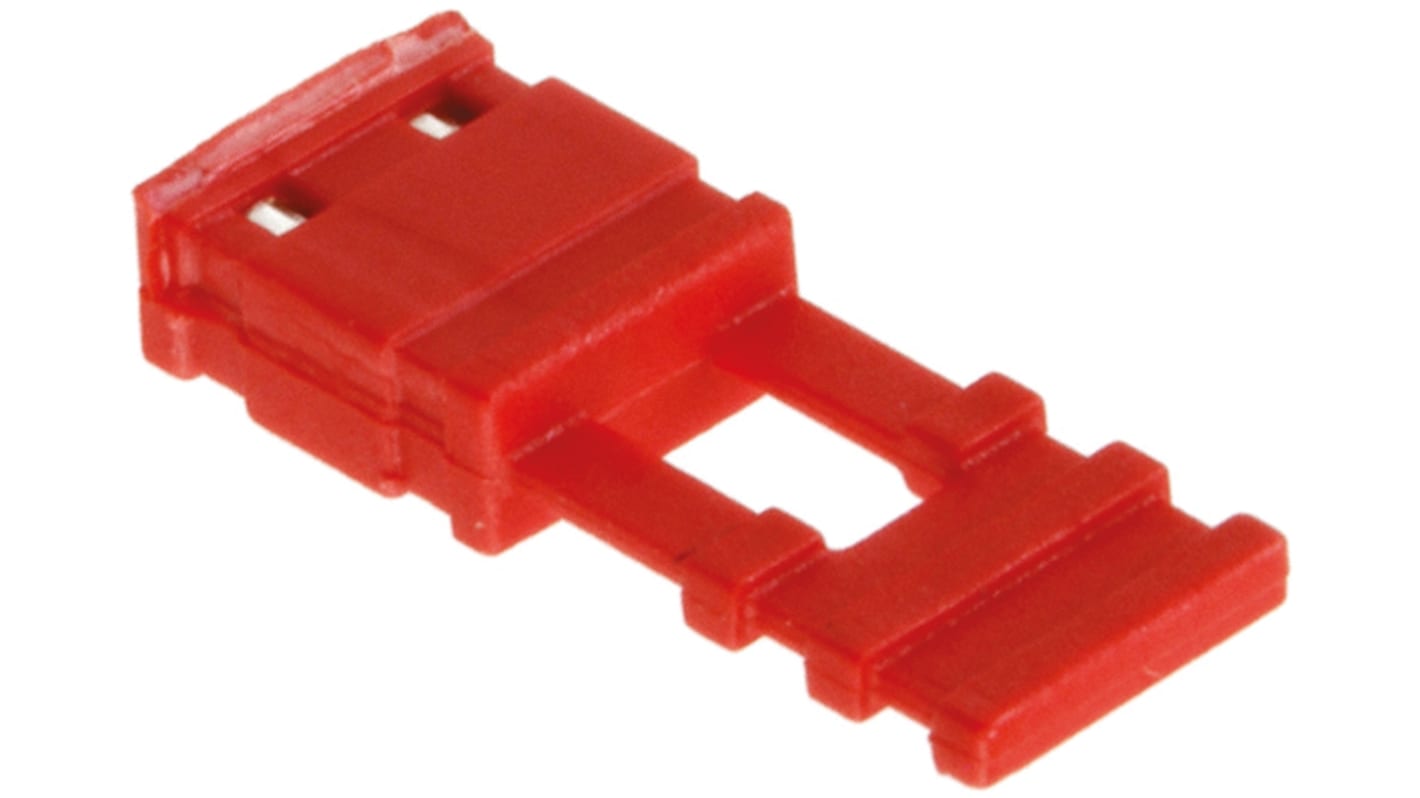

HARWIN, M20 Jumper Straight Female Red Closed Top 2 Way 1 Row 2.54 mm Pitch
- RS Stock No.:
- 745-7084
- Mfr. Part No.:
- M7681-05
- Brand:
- HARWIN
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£1.73
(exc. VAT)
£2.075
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 315 unit(s) shipping from 07 September 2026
- Plus 75 unit(s) shipping from 07 September 2026
- Plus 5,340 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £0.346 | £1.73 |
| 125 - 495 | £0.25 | £1.25 |
| 500 - 2495 | £0.21 | £1.05 |
| 2500 - 4995 | £0.132 | £0.66 |
| 5000 + | £0.126 | £0.63 |
*price indicative
- RS Stock No.:
- 745-7084
- Mfr. Part No.:
- M7681-05
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Sub Type | Closed Top | |
| Product Type | Jumper | |
| Number of Contacts | 2 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Polybutylene Terephthalate | |
| Voltage | 250V | |
| Connector Gender | Female | |
| Colour | Red | |
| Number of Rows | 1 | |
| Length | 14mm | |
| Series | M20 | |
| Contact Material | Phosphor Bronze | |
| Contact Gender | Female | |
| Contact Plating | Gold | |
| Depth | 2.4mm | |
| Standards/Approvals | No | |
| Orientation | Straight | |
| Width | 5mm | |
| Maximum Contact Resistance | 25mΩ | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Sub Type Closed Top | ||
Product Type Jumper | ||
Number of Contacts 2 | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Polybutylene Terephthalate | ||
Voltage 250V | ||
Connector Gender Female | ||
Colour Red | ||
Number of Rows 1 | ||
Length 14mm | ||
Series M20 | ||
Contact Material Phosphor Bronze | ||
Contact Gender Female | ||
Contact Plating Gold | ||
Depth 2.4mm | ||
Standards/Approvals No | ||
Orientation Straight | ||
Width 5mm | ||
Maximum Contact Resistance 25mΩ | ||
- COO (Country of Origin):
- GB
Harwin M20 Series 2.54mm Jumper Sockets
M20 series 2.54mm closed TOP jumper sockets or shunts which provide on-board programming when placed on an M20 series double row pin header. The housings of these M20 jumper sockets are colour coded and incorporate handles which enable easy placement and removal. The footprint of these jumper sockets or shunts is small enough to enable them to be stacked side by side or end to end. These 2.54mm M20 jumpers offer a high reliability multi-usage of up to 300 operations.
Part numbers M7681-05 to M7683-05 have 14mm flexible handles
Part numbers M7685-05 to M7687-05 have 10mm flexible handles
Part number M7967-05 has a solid handle
