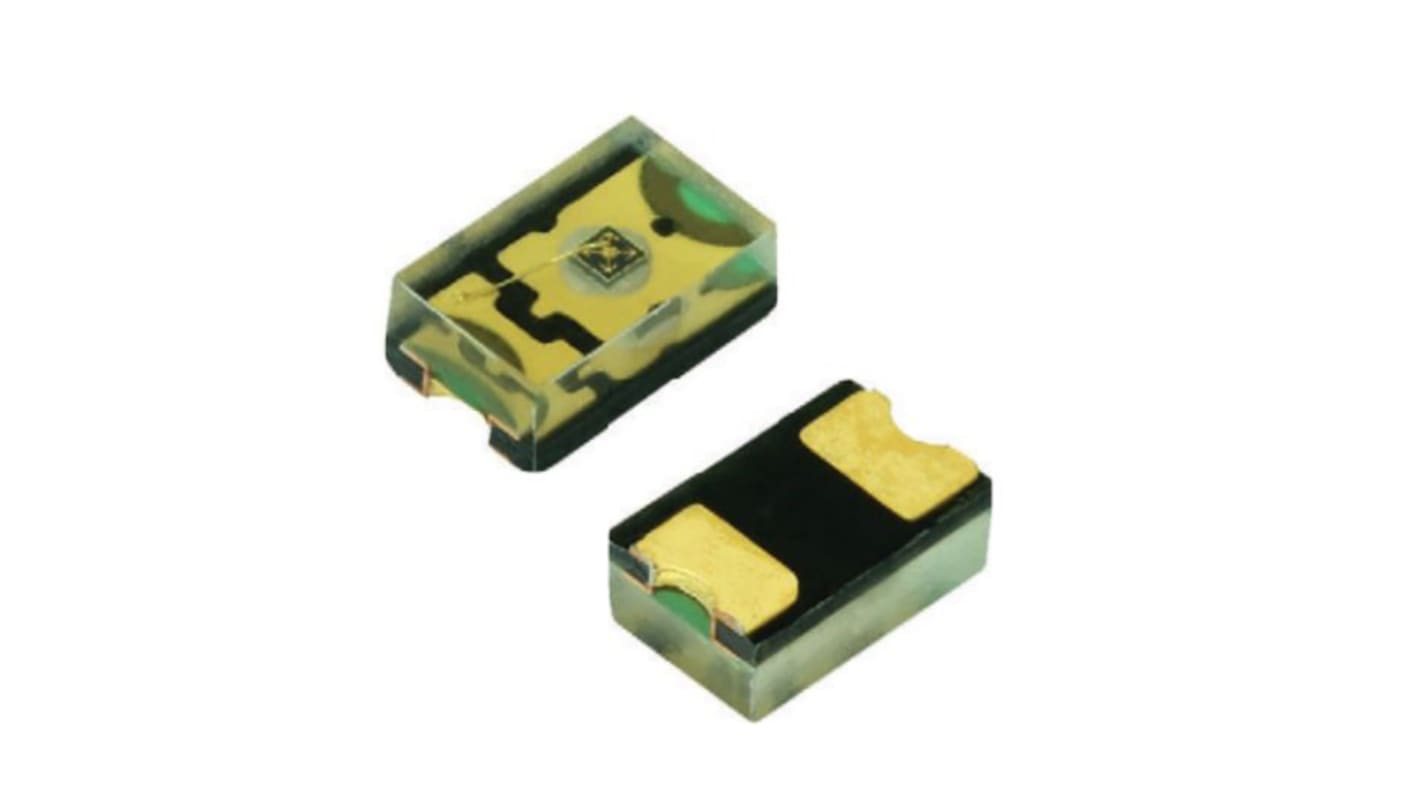

VSMB1940X01 Vishay, 940nm IR LED, 2012 (0805) SMD package
- RS Stock No.:
- 699-7714P
- Mfr. Part No.:
- VSMB1940X01
- Brand:
- Vishay
13730 In stock - FREE next working day delivery available
Price Each (Supplied as a Tape)
£0.484
(exc. VAT)
£0.581
(inc. VAT)
Units | Per unit |
|---|---|
| 100 - 240 | £0.484 |
| 250 - 490 | £0.351 |
| 500 - 990 | £0.305 |
| 1000 + | £0.28 |
- RS Stock No.:
- 699-7714P
- Mfr. Part No.:
- VSMB1940X01
- Brand:
- Vishay
Vishay VSMB1940 Series IR Emitting Diodes
The VSMB1940 series, from Vishay Semiconductors, are Infrared (IR) emitting diodes. They use double hetero (DH) technology for a high radiant power output. The VSMB1940 family come in a surface mount (SMT) package with a standard 0805 footprint.
Suitable applications for the VSMB1940 include; IR data transmission, transmissive or reflective sensors and other applications where space is limited.
Suitable applications for the VSMB1940 include; IR data transmission, transmissive or reflective sensors and other applications where space is limited.
Features of the VSMB1940 IR LEDs:
0805 footprint
Dimensions: 2 x 1.25 x 0.85 mm
Peak wavelength: 940nm
High reliability
High radiant intensity
High speed
Beam angle: 120°
Low forward voltage
0805 footprint
Dimensions: 2 x 1.25 x 0.85 mm
Peak wavelength: 940nm
High reliability
High radiant intensity
High speed
Beam angle: 120°
Low forward voltage
SurfLight™ Technology
SurfLight™ series, from Vishay Semiconductors, consists of high power Infrared (IR) emitters. Their SurfLight™ technology enables the majority of the light and power to be emitted directly through the top of the chip. Standard IR emitters send their light in all directions.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
Infrared (IR) Light Emitters, Vishay
Attribute | Value |
|---|---|
| Peak Wavelength | 940nm |
| Package Type | 2012 (0805) |
| Radiant Flux | 40mW |
| Radiant Intensity | 6mW/sr |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Dimensions | 2 x 1.25 x 0.85mm |
| Lens Shape | Rectangle |
| LED Material | GaAlAs |
