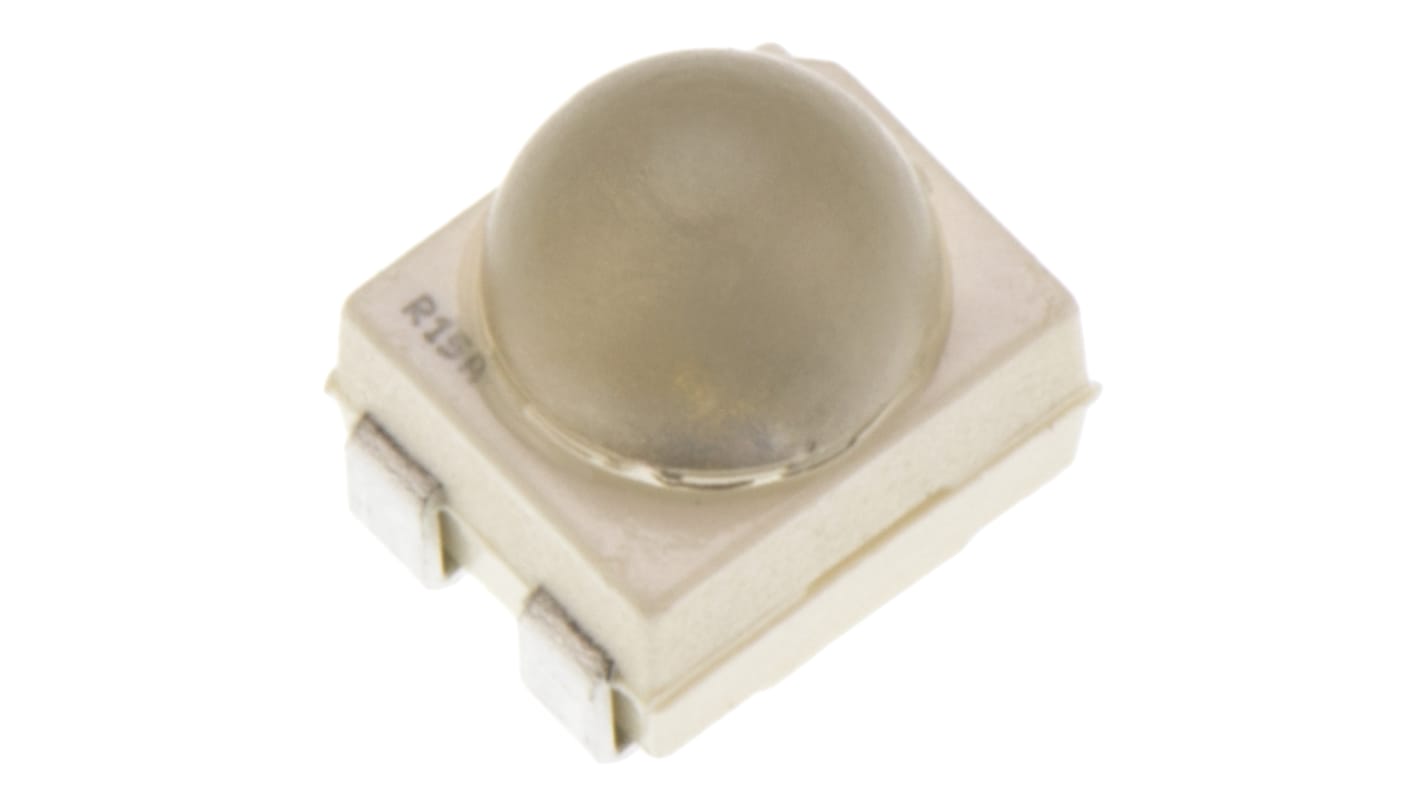

SFH 4249-Z ams OSRAM, Power TOPLED 950nm IR LED, PLCC 4 SMD package
- RS Stock No.:
- 665-5491
- Mfr. Part No.:
- SFH 4249-Z
- Brand:
- ams OSRAM
Discontinued
- RS Stock No.:
- 665-5491
- Mfr. Part No.:
- SFH 4249-Z
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Peak Wavelength | 950nm | |
| Package Type | PLCC 4 | |
| Radiant Flux | 65mW | |
| Radiant Intensity | 50mW/sr | |
| Mounting Type | Surface Mount | |
| Angle of Half Intensity | ±25° | |
| Number of LEDs | 1 | |
| Number of Pins | 4 | |
| Dimensions | 3.4 x 3 x 3.8mm | |
| Lens Shape | Dome | |
| Series | Power TOPLED | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Peak Wavelength 950nm | ||
Package Type PLCC 4 | ||
Radiant Flux 65mW | ||
Radiant Intensity 50mW/sr | ||
Mounting Type Surface Mount | ||
Angle of Half Intensity ±25° | ||
Number of LEDs 1 | ||
Number of Pins 4 | ||
Dimensions 3.4 x 3 x 3.8mm | ||
Lens Shape Dome | ||
Series Power TOPLED | ||
OSRAM Power TOPLED Series IR LEDs - 940/950nm
The Power TOPLED family, from OSRAM Opto Semiconductors, are surface mount (SMT) Infrared (IR) emitting LEDs. They are available in both flat top and dome lens types. The Power TOPLED family are high power IR LEDs with short switching times. Suitable applications include; IR illumination for cameras (CCTV), IR data transmission and sensor technology.
Features of the Power TOPLED IR LEDs:
Surface mount (SMT)
PLCC-4 package
Dimensions: 3 x 3.4 mm
Variety of lens types: flat top and dome
Wavelength: 940nm or 950nm
Surface mount (SMT)
PLCC-4 package
Dimensions: 3 x 3.4 mm
Variety of lens types: flat top and dome
Wavelength: 940nm or 950nm
Infrared (IR) Light Emitters, OSRAM Opto Semiconductors
