Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1,192.33
(exc. VAT)
£1,430.80
(inc. VAT)
- RS Stock No.:
- 877-2463
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Overhead | |
| Supply Voltage | 220V ac | |
| Depth | 940mm | |
| Offset Voltage | 10 → 25V | |
| Height | 89mm | |
| Air Flow | 255 → 510m³/h | |
| Width | 165mm | |
| Number of Fans | 3 | |
| Complies with EN 61340-5-1 | Yes | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Overhead | ||
Supply Voltage 220V ac | ||
Depth 940mm | ||
Offset Voltage 10 → 25V | ||
Height 89mm | ||
Air Flow 255 → 510m³/h | ||
Width 165mm | ||
Number of Fans 3 | ||
Complies with EN 61340-5-1 Yes | ||
- COO (Country of Origin):
- US

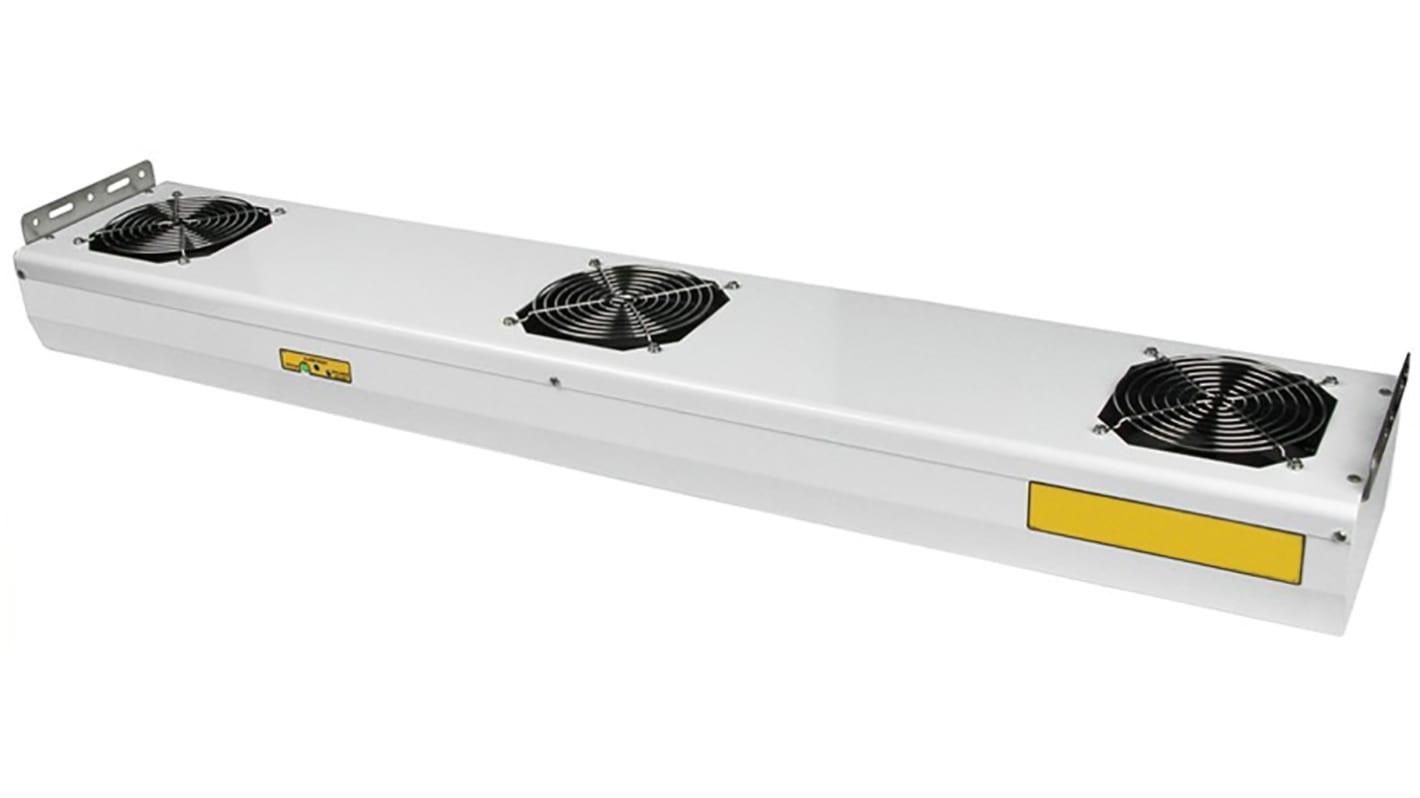

RS PRO Fan Overhead Ioniser
This overhead ioniser is a simple and effective way neutralise a workspace and remove the risk of electrostatic discharge, which can damage sensitive electronic components.
The steady-state ioniser has a shrouded fan blade design to ionise air molecules in the working area. It's fitted with an auto-feedback system and an audible and visual alarm, which uses a tricolour LED to show when ionisation falls below the required level. Replaceable emitter pins make for easy maintenance. To suit your environment and needs, the fan can be set to one of three speeds.
As part of the RS PRO range, the fan ioniser has been thoroughly tested for effectiveness and quality. It also meets British Standards requirements for electrostatic control equipment. Ionisers of this kind are commonly used in workshops where electronic components are being assembled or repaired.
The steady-state ioniser has a shrouded fan blade design to ionise air molecules in the working area. It's fitted with an auto-feedback system and an audible and visual alarm, which uses a tricolour LED to show when ionisation falls below the required level. Replaceable emitter pins make for easy maintenance. To suit your environment and needs, the fan can be set to one of three speeds.
As part of the RS PRO range, the fan ioniser has been thoroughly tested for effectiveness and quality. It also meets British Standards requirements for electrostatic control equipment. Ionisers of this kind are commonly used in workshops where electronic components are being assembled or repaired.
Features and Benefits
• Bench-top ioniser
• Neutralises objects that cannot be grounded
• White powder-coated steel housing
• Pure tungsten emitter points for improved mechanical strength and ionisation stability
• Steady-state DC
• Height of 89 mm
• Width of 165 mm
• Length of 940 mm
• Weight of 4.54 kg
• Input power of 220 V ac, 50-60 Hz
• High voltage power supply of 5.5 kV nominal
• 400 mA slow blow fuse
• Air volume of 100 to 300 CFM (cubic feet per minute)
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Neutralises objects that cannot be grounded
• White powder-coated steel housing
• Pure tungsten emitter points for improved mechanical strength and ionisation stability
• Steady-state DC
• Height of 89 mm
• Width of 165 mm
• Length of 940 mm
• Weight of 4.54 kg
• Input power of 220 V ac, 50-60 Hz
• High voltage power supply of 5.5 kV nominal
• 400 mA slow blow fuse
• Air volume of 100 to 300 CFM (cubic feet per minute)
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
