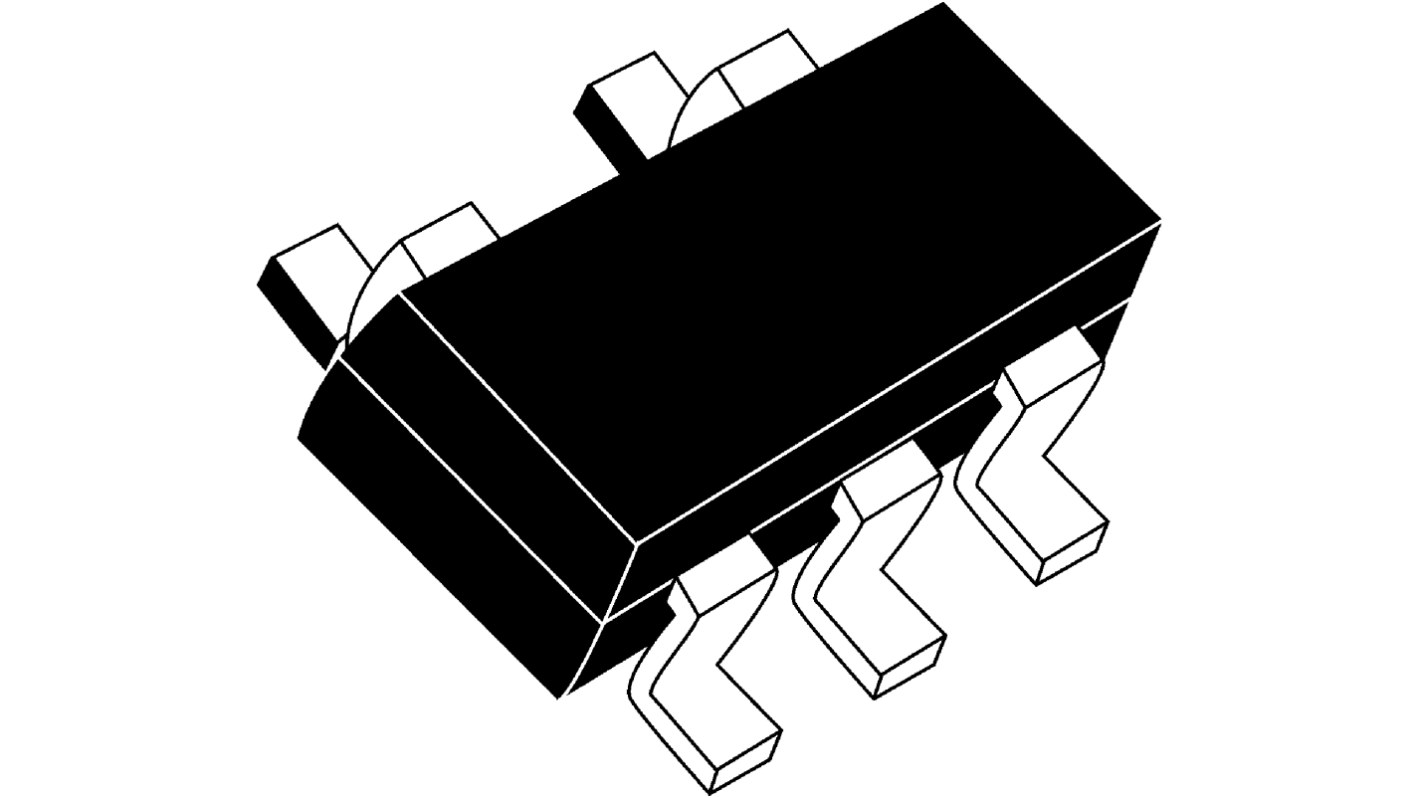

DiodesZetex 74LVC1G14W5-7 Schmitt Trigger Inverter, 5-Pin SOT-25

RS Stock No.:: 822-8701P
Mfr. Part No.:: 74LVC1G14W5-7
Brand:: DiodesZetex

DiodesZetex 74LVC1G14W5-7 Schmitt Trigger Inverter, 5-Pin SOT-25

17000 In stock - FREE next working day delivery available

Price Each (Supplied on a Reel) Quantities below 150 on continuous strip

£0.025

(exc. VAT)

£0.03

(inc. VAT)

Units	Per unit
200 +	£0.025

RS Stock No.:: 822-8701P
Mfr. Part No.:: 74LVC1G14W5-7
Brand:: DiodesZetex

Single Schmitt-Trigger Inverter Datasheet
ESD Control Selection Guide V1

Attribute	Value
Logic Function	Inverter
Input Type	Schmitt Trigger
Output Type	Push-Pull
Number of Elements per Chip	1
Schmitt Trigger Input	Yes
Maximum Propagation Delay Time @ Maximum CL	6.5 ns @ 50 pF
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	32mA
Mounting Type	Surface Mount
Package Type	SOT-25
Pin Count	5
Logic Family	LVC
Dimensions	3.1 x 1.7 x 1.3mm
Height	1.3mm
Maximum Operating Supply Voltage	5.5 V
Propagation Delay Test Condition	50pF
Length	3.1mm
Width	1.7mm
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Minimum Operating Supply Voltage	1.65 V

DiodesZetex 74LVC1G14W5-7 Schmitt Trigger Inverter, 5-Pin SOT-25

74LVC1G Family, Diodes Inc
