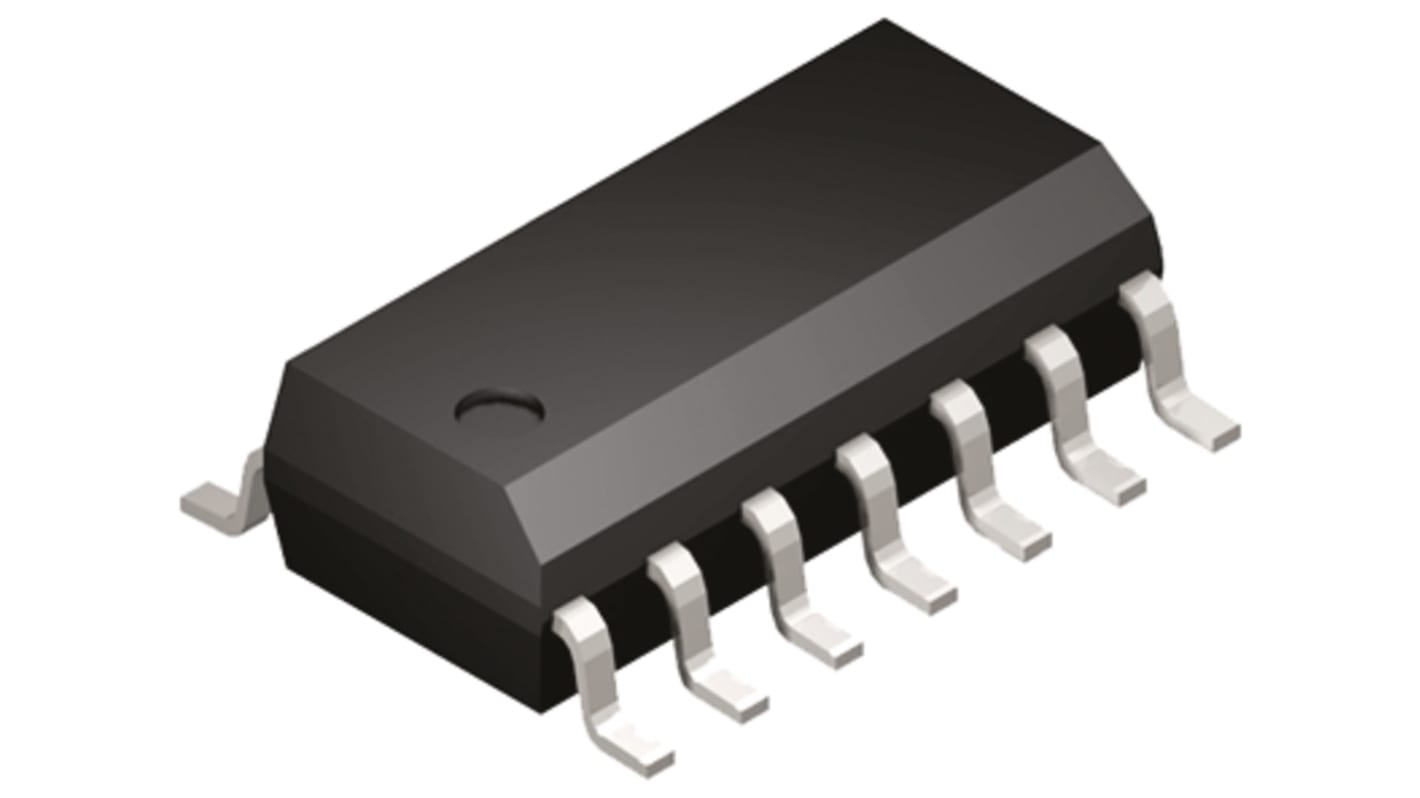

onsemi MC74AC04DR2G Hex Inverter, 14-Pin SOIC

View all Inverters ICs
Bulk discount available

Subtotal (1 tape of 50 units)*

£12.05

(exc. VAT)

£14.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
50 - 450£0.241£12.05
500 - 950£0.208£10.40
1000 +£0.18£9.00

*price indicative

Packaging Options:
RS Stock No.:
806-2132
Mfr. Part No.:
MC74AC04DR2G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Logic Function

Inverter

Output Type

Single Ended

Number of Elements per Chip

6

Schmitt Trigger Input

No

Maximum Propagation Delay Time @ Maximum CL

9.5 ns @ 50 pF

Maximum High Level Output Current

-24mA

Maximum Low Level Output Current

24mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Logic Family

AC

Dimensions

8.75 x 4 x 1.5mm

Maximum Operating Supply Voltage

6 V

Height

1.5mm

Maximum Operating Temperature

+85 °C

Propagation Delay Test Condition

50pF

Minimum Operating Temperature

-40 °C

Length

8.75mm

Minimum Operating Supply Voltage

2 V

Width

4mm
