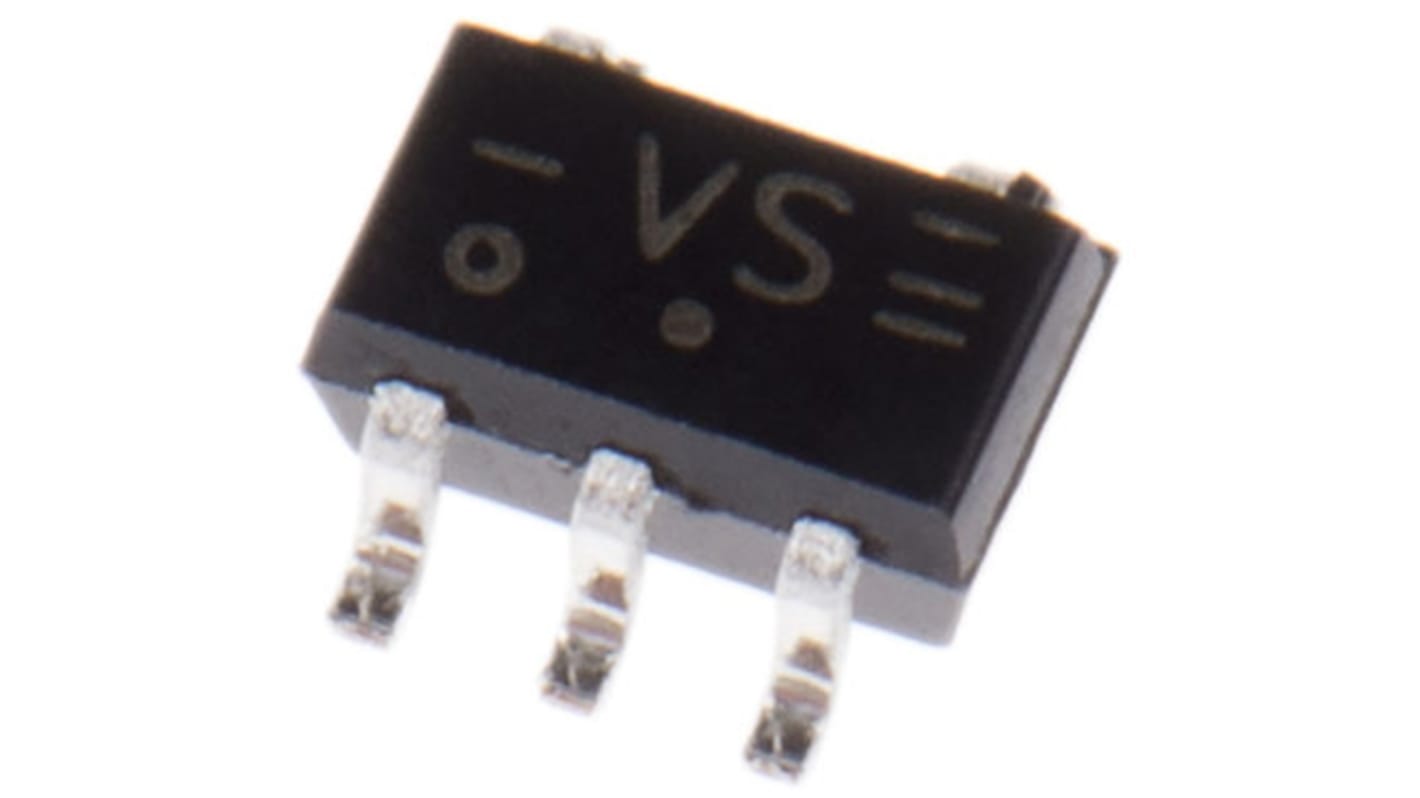

Nexperia 74HCT1G14GW,125 Schmitt Trigger Inverter, 5-Pin TSSOP
- RS Stock No.:
- 775-7781P
- Mfr. Part No.:
- 74HCT1G14GW,125
- Brand:
- Nexperia
Bulk discount available
Subtotal 60 units (supplied on a continuous strip)*
£13.68
(exc. VAT)
£16.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,940 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 60 - 120 | £0.228 |
| 150 - 270 | £0.096 |
| 300 - 570 | £0.091 |
| 600 + | £0.086 |
*price indicative
- RS Stock No.:
- 775-7781P
- Mfr. Part No.:
- 74HCT1G14GW,125
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Number of Elements per Chip | 1 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 51ns | |
| Maximum High Level Output Current | -2mA | |
| Maximum Low Level Output Current | 2mA | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 5 | |
| Logic Family | HCT | |
| Dimensions | 2.25 x 1.35 x 1mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Height | 1mm | |
| Propagation Delay Test Condition | 50pF | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Width | 1.35mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Length | 2.25mm | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Number of Elements per Chip 1 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 51ns | ||
Maximum High Level Output Current -2mA | ||
Maximum Low Level Output Current 2mA | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 5 | ||
Logic Family HCT | ||
Dimensions 2.25 x 1.35 x 1mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Height 1mm | ||
Propagation Delay Test Condition 50pF | ||
Minimum Operating Supply Voltage 4.5 V | ||
Width 1.35mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Length 2.25mm | ||
- COO (Country of Origin):
- MY
74HCT1G/74HCT2G/74HCT3G Family, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
