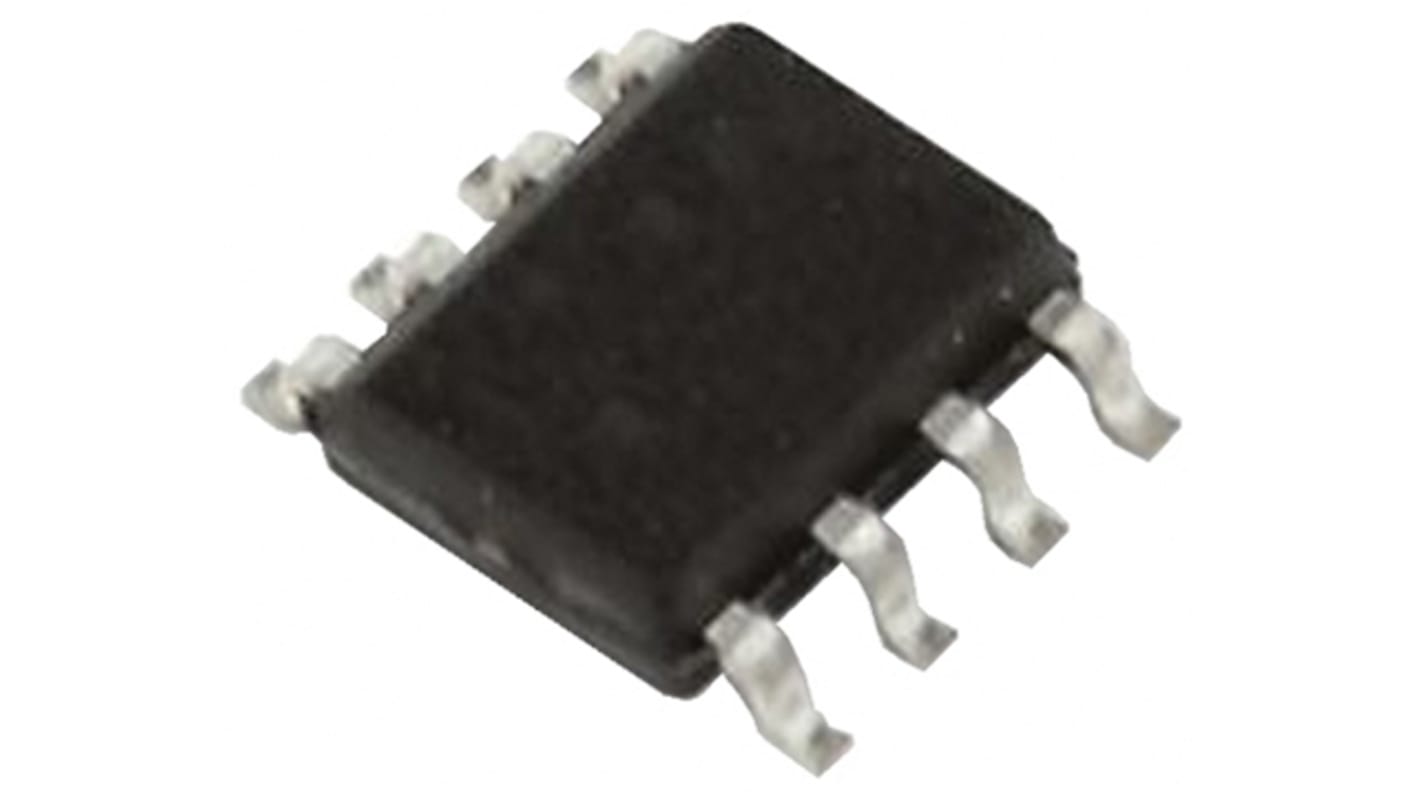

Texas Instruments SN74LVC3G14DCTR Triple Schmitt Trigger CMOS Inverter, 8-Pin SSOP
- RS Stock No.:
- 662-9032
- Mfr. Part No.:
- SN74LVC3G14DCTR
- Brand:
- Texas Instruments
Subtotal (1 pack of 5 units)*
£1.74
(exc. VAT)
£2.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8,160 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 7,275 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.348 | £1.74 |
*price indicative
- RS Stock No.:
- 662-9032
- Mfr. Part No.:
- SN74LVC3G14DCTR
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Number of Elements per Chip | 3 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 4.3 ns @ 5 V, 5.4 ns @ 3.3 V | |
| Maximum High Level Output Current | -32mA | |
| Maximum Low Level Output Current | 32mA | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 8 | |
| Logic Family | LVC | |
| Dimensions | 2.95 x 2.8 x 1.29mm | |
| Height | 1.29mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Propagation Delay Test Condition | 50pF | |
| Minimum Operating Supply Voltage | 1.65 V | |
| Width | 2.8mm | |
| Length | 2.95mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Number of Elements per Chip 3 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 4.3 ns @ 5 V, 5.4 ns @ 3.3 V | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 32mA | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 8 | ||
Logic Family LVC | ||
Dimensions 2.95 x 2.8 x 1.29mm | ||
Height 1.29mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Propagation Delay Test Condition 50pF | ||
Minimum Operating Supply Voltage 1.65 V | ||
Width 2.8mm | ||
Length 2.95mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
