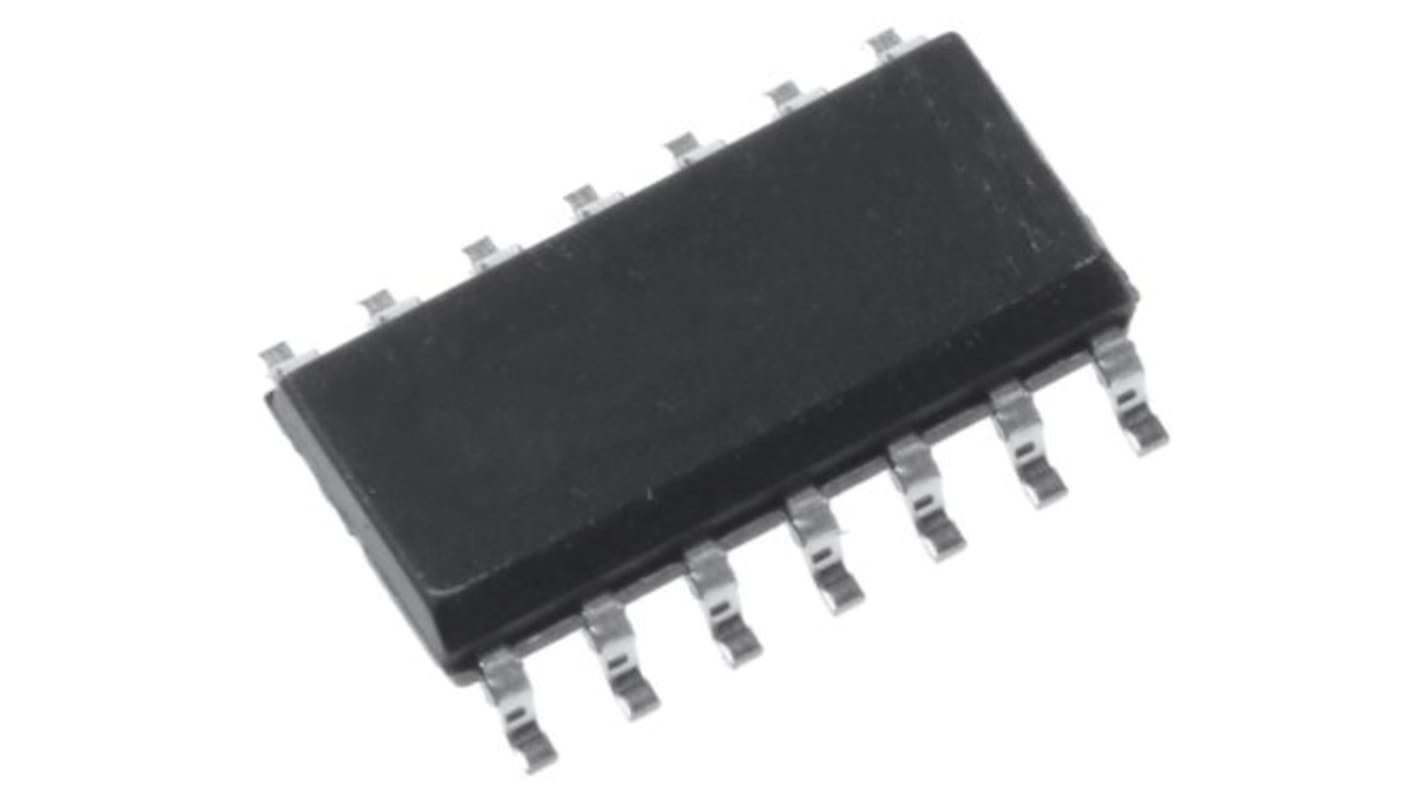

onsemi MC74HC132ADG Quad Schmitt Trigger Schmitt Trigger Inverter, 14-Pin SOIC

View all Inverters ICs
Bulk discount available

Subtotal (1 tube of 55 units)*

£12.98

(exc. VAT)

£15.565

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,595 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
55 - 495£0.236£12.98
550 - 1045£0.172£9.46
1100 +£0.145£7.975

*price indicative

RS Stock No.:
184-4275
Mfr. Part No.:
MC74HC132ADG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Logic Function

NAND

Input Type

Schmitt Trigger

Number of Elements per Chip

4

Schmitt Trigger Input

Yes

Maximum Propagation Delay Time @ Maximum CL

190ns

Maximum High Level Output Current

-25mA

Maximum Low Level Output Current

25mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Dimensions

8.75 x 4 x 1.5mm

Maximum Operating Supply Voltage

7 V

Height

1.5mm

Propagation Delay Test Condition

50pF

Width

4mm

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

-0.5 V

Minimum Operating Temperature

-55 °C

Automotive Standard

AEC-Q100

Length

8.75mm
