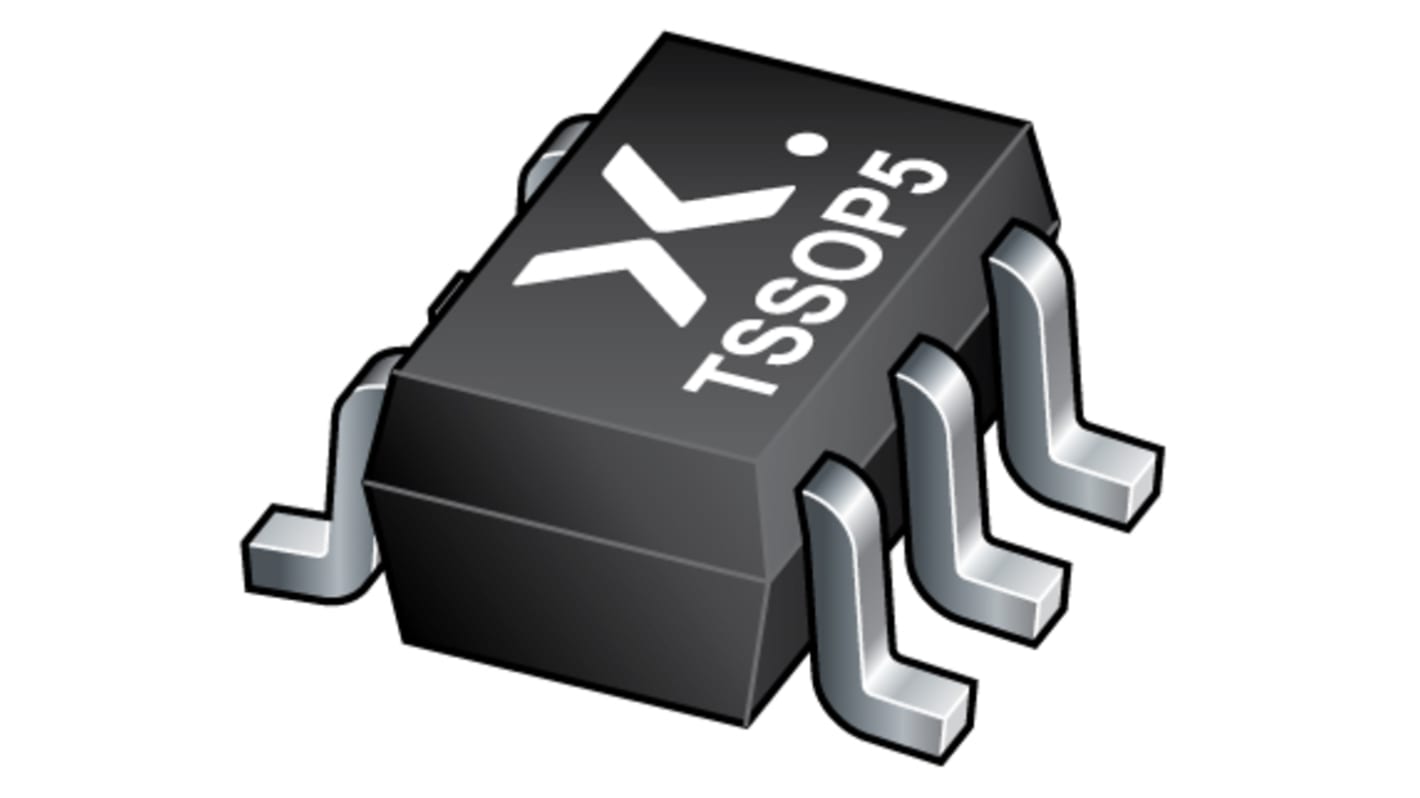

Nexperia 74LVC1G14GW-Q100,1 Schmitt Trigger CMOS Inverter, 5-Pin TSSOP5
- RS Stock No.:
- 152-6507P
- Mfr. Part No.:
- 74LVC1G14GW-Q100,1
- Brand:
- Nexperia
Bulk discount available
Subtotal 200 units (supplied on a reel)*
£7.80
(exc. VAT)
£9.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 33,000 unit(s) shipping from 21 January 2026
- Plus 9,000 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 200 - 400 | £0.039 |
| 500 - 900 | £0.037 |
| 1000 - 2400 | £0.036 |
| 2500 + | £0.035 |
*price indicative
- RS Stock No.:
- 152-6507P
- Mfr. Part No.:
- 74LVC1G14GW-Q100,1
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | CMOS | |
| Number of Elements per Chip | 1 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 14 ns @ 50 pF | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP5 | |
| Pin Count | 5 | |
| Logic Family | LVC | |
| Dimensions | 3.1 x 1.7 x 1mm | |
| Maximum Operating Supply Voltage | +6.5 V | |
| Height | 1mm | |
| Minimum Operating Supply Voltage | -0.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Length | 3.1mm | |
| Width | 1.7mm | |
| Propagation Delay Test Condition | 50pF | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Output Type CMOS | ||
Number of Elements per Chip 1 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 14 ns @ 50 pF | ||
Mounting Type Surface Mount | ||
Package Type TSSOP5 | ||
Pin Count 5 | ||
Logic Family LVC | ||
Dimensions 3.1 x 1.7 x 1mm | ||
Maximum Operating Supply Voltage +6.5 V | ||
Height 1mm | ||
Minimum Operating Supply Voltage -0.5 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Length 3.1mm | ||
Width 1.7mm | ||
Propagation Delay Test Condition 50pF | ||
Automotive Standard AEC-Q100 | ||
Single Schmitt trigger inverter, The 74LVC1G14-Q100 provides the inverting buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment. Schmitt trigger action at the input makes the circuit tolerant for slower input rise and fall time.
Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 1.65 V to 5.5 V
High noise immunity
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 1.65 V to 5.5 V
High noise immunity
