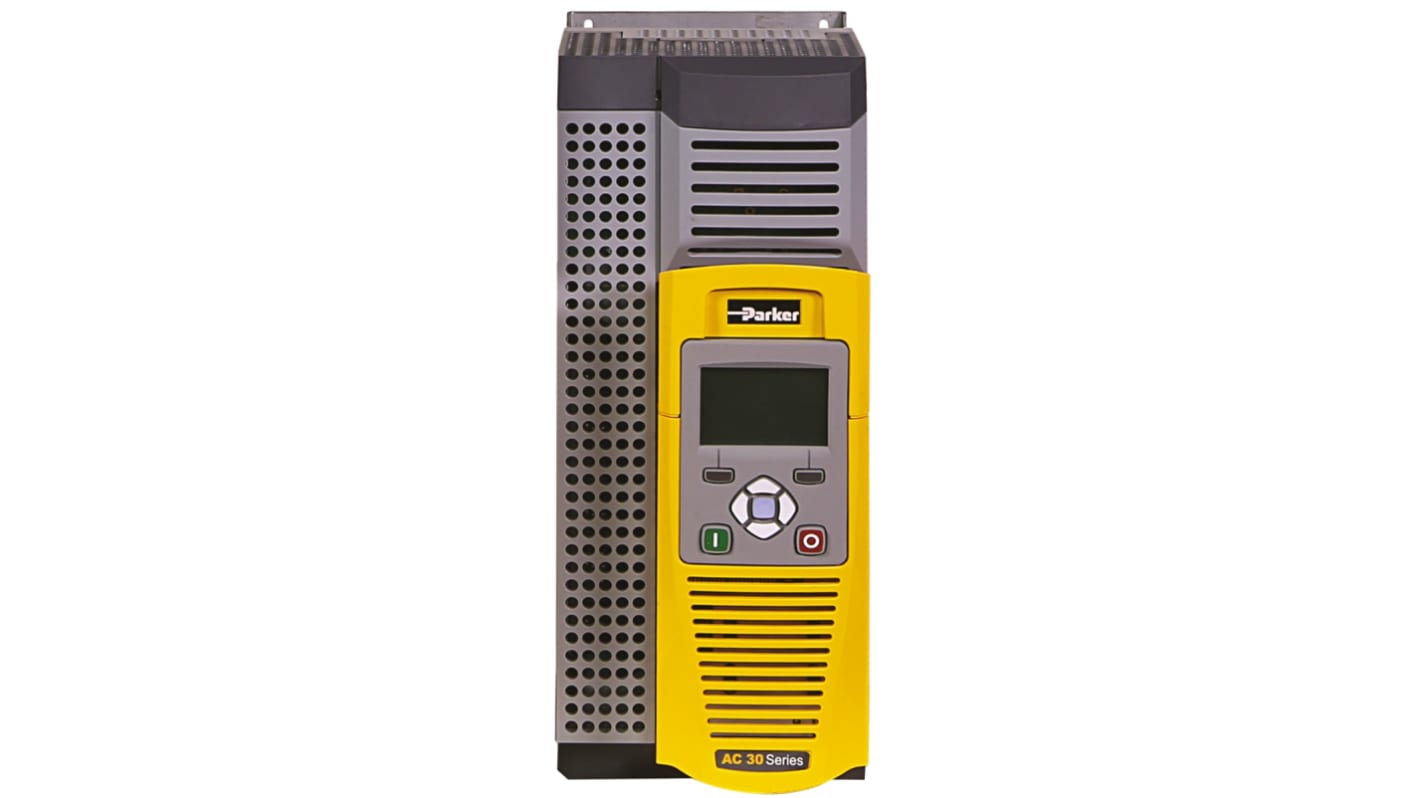

    Parker AC30 Inverter Drive, 3-Phase In, 0 → 1500Hz Out, 18.5 kW, 400 V ac, 32 A, 38 A

    RS Stock No.:
    778-1920
    Mfr. Part No.:
    31V-4F0038-BE-2S-0000
    Brand:
    Parker
    Parker
    View all Inverter Drives
    2 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £2,673.15

    (exc. VAT)

    £3,207.78

    (inc. VAT)

    UnitsPer unit
    1 +£2,673.15
    RS Stock No.:
    778-1920
    Mfr. Part No.:
    31V-4F0038-BE-2S-0000
    Brand:
    Parker

    Legislation and Compliance


    Product Details

    AC30V Inverter, Three Phase Input


    Providing users with exceptional levels of performance up to 75kW, AC30V can be used to control simple open-loop pumps and fans through to closed-loop process line applications. Its highly modular construction enables a wide range of communications and I/O options to be easily added as required. Integrated macros and a Codesys based IEC61131 programming environment delivers maximum flexibility for users


    Suitable for operation with AC induction and Permanent Magnet AC (PMAC) servo motors
    Ethernet TCP/IP as standard
    I/O expansion options
    Support for popular industrial fieldbuses
    Chassis or through-panel mount as standard
    Multi-language graphical keypad
    Terminal covers removable with drive in-situ
    Conformally coated for harsh environment protection as standard (class 3C3 and 3C4 for H2S)
    Spring clamp control terminal connections
    Isolated power stack cooling with removable fan


    Optional pulse encoder feedback module for closed-loop operation
    Conformally coated for harsh environment protection as standard (class 3C3
    and 3C4 for H2S)
    Spring clamp control terminal connections
    Isolated power stack cooling with removable fan
    Optional integrated EMC filter to C2 1st environment
    Parker Drive Developer (PDD) IEC61131-3 Codesys programming software



    Parker AC30V Range


    Specifications

    AttributeValue
    Power Rating18.5 kW
    Phase3
    Supply Voltage400 V ac
    Current Rating32 A, 38 A
    Output Frequency0 → 1500Hz
    For Use WithAC Motors
    SeriesAC30
    IP RatingIP20
    STOYes
    Control PanelYes
    Filter IncludedYes
    Overall Length383mm
    Overall Width150mm
    Overall Depth255mm
