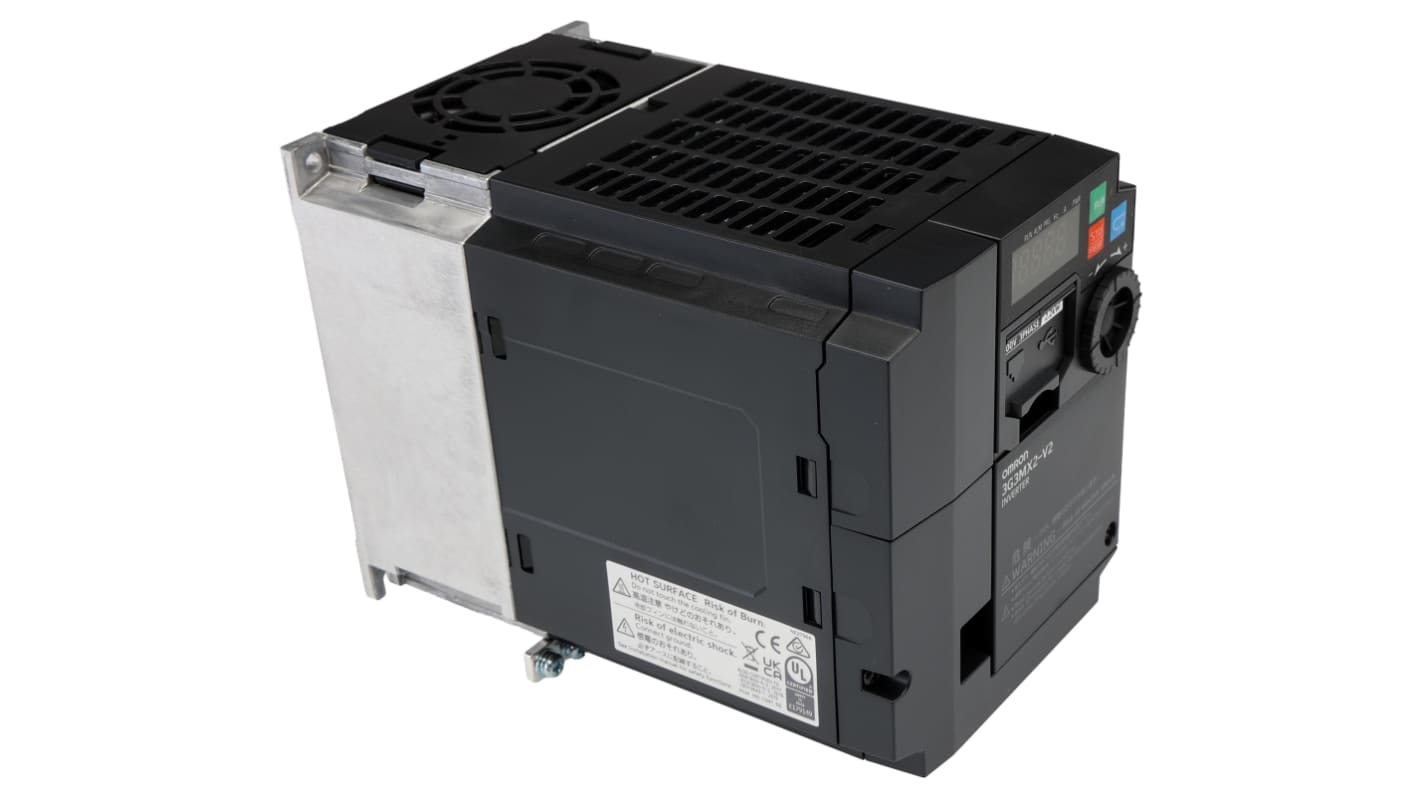

Omron Inverter Drive, 2.2 kW, 3 Phase, 400 V ac, 5.5 A, 3G3MX2 Series
- RS Stock No.:
- 705-1759
- Distrelec Article No.:
- 303-88-385
- Mfr. Part No.:
- 3G3MX2-A4022-EV2
- Brand:
- Omron
Subtotal (1 unit)*
£718.00
(exc. VAT)
£861.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 4 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £718.00 |
*price indicative
- RS Stock No.:
- 705-1759
- Distrelec Article No.:
- 303-88-385
- Mfr. Part No.:
- 3G3MX2-A4022-EV2
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Power Rating | 2.2 kW | |
Phase | 3 | |
Supply Voltage | 400 V ac | |
Current Rating | 5.5 A | |
For Use With | AC Motors | |
Series | 3G3MX2 | |
Field Bus Communication Type | Modbus | |
IP Rating | IP20 | |
Output Frequency | 400Hz | |
STO | Yes | |
Drive Type | Vector Control | |
Control Panel | Yes | |
Standards Met | CE, cULus, RoHS | |
Overall Depth | 171 mm | |
Interface | RS485 | |
Overall Length | 128 mm | |
Overall Width | 108 mm | |
Select all | ||
---|---|---|
Brand Omron | ||
Power Rating 2.2 kW | ||
Phase 3 | ||
Supply Voltage 400 V ac | ||
Current Rating 5.5 A | ||
For Use With AC Motors | ||
Series 3G3MX2 | ||
Field Bus Communication Type Modbus | ||
IP Rating IP20 | ||
Output Frequency 400Hz | ||
STO Yes | ||
Drive Type Vector Control | ||
Control Panel Yes | ||
Standards Met CE, cULus, RoHS | ||
Overall Depth 171 mm | ||
Interface RS485 | ||
Overall Length 128 mm | ||
Overall Width 108 mm | ||
Omron 3G3MX2 Series Inverter Drive, 2.2 kW Power Rating, 400V AC Supply Voltage - 3G3MX2-A4022-EV2
This inverter drive is designed to effectively control AC motors, specifically featuring vector control technology. With a power rating of 2.2 kW and operating on a three-phase supply voltage of 400V AC, this drive ensures efficient motor performance and control. The compact dimensions of 171mm in depth, 128mm in length, and 108mm in width make it suitable for various industrial applications.
Features & Benefits
• Offers high starting torque of 200% at 0.5 Hz for improved responsiveness
• Provides built-in logic programming for customised control solutions
• Supports Modbus communication for seamless integration into existing systems
• Equipped with a control panel and USB port for easy programming
• Safety features compliant with ISO13849-1 enhance operational security
• Compact design allows for flexible installation in limited spaces
• Provides built-in logic programming for customised control solutions
• Supports Modbus communication for seamless integration into existing systems
• Equipped with a control panel and USB port for easy programming
• Safety features compliant with ISO13849-1 enhance operational security
• Compact design allows for flexible installation in limited spaces
Applications
• Used with industrial AC motors to optimise automation processes
• Ideal for requiring precise speed and torque control
• Utilised in manufacturing environments for conveyor belt operations
• Suitable for machinery that demands compliance with safety standards
• Ideal for requiring precise speed and torque control
• Utilised in manufacturing environments for conveyor belt operations
• Suitable for machinery that demands compliance with safety standards
What communication protocols are supported for integration?
The device supports Modbus communication, allowing it to easily connect with various automation systems for effective management and control.
How does this product ensure safe operation in demanding environments?
It incorporates safety features compliant with ISO13849-1, including a double input circuit and external device monitor, ensuring reliable operation under various conditions.
What benefits can be expected from using vector control technology?
Vector control technology enhances motor performance, providing precise speed and torque adjustments in response to varying load conditions, which improves overall system efficiency.
Omron MX2 range
The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.
