Omron Variable Speed Drive, 400 W, 1 Phase, M1 Series 200V ac 1.9 A
- RS Stock No.:
- 282-4579
- Mfr. Part No.:
- 3G3M1-AB002
- Brand:
- Omron
Subtotal (1 unit)*
£323.00
(exc. VAT)
£387.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £323.00 |
*price indicative
- RS Stock No.:
- 282-4579
- Mfr. Part No.:
- 3G3M1-AB002
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Power Rating | 400W | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 1 | |
| Maximum Output Current | 1.9A | |
| Series | M1 | |
| IP Rating | IP20 | |
| Overall Length | 127mm | |
| Output Frequency | 590Hz | |
| Minimum Supply Voltage | 200V ac | |
| Maximum Supply Voltage | 200V ac | |
| Drive Type | Variable Speed | |
| Minimum Operating Temperature | -10°C | |
| Compatible Motor Type | Asynchronous Motor, Permanent Magnet Motor | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 68mm | |
| Standards/Approvals | RoHS, CE, cULus, KC, RCM, UKCA | |
| Overall Depth | 98mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Power Rating 400W | ||
Product Type Variable Speed Drive | ||
Number of Phases 1 | ||
Maximum Output Current 1.9A | ||
Series M1 | ||
IP Rating IP20 | ||
Overall Length 127mm | ||
Output Frequency 590Hz | ||
Minimum Supply Voltage 200V ac | ||
Maximum Supply Voltage 200V ac | ||
Drive Type Variable Speed | ||
Minimum Operating Temperature -10°C | ||
Compatible Motor Type Asynchronous Motor, Permanent Magnet Motor | ||
Maximum Operating Temperature 50°C | ||
Overall Width 68mm | ||
Standards/Approvals RoHS, CE, cULus, KC, RCM, UKCA | ||
Overall Depth 98mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

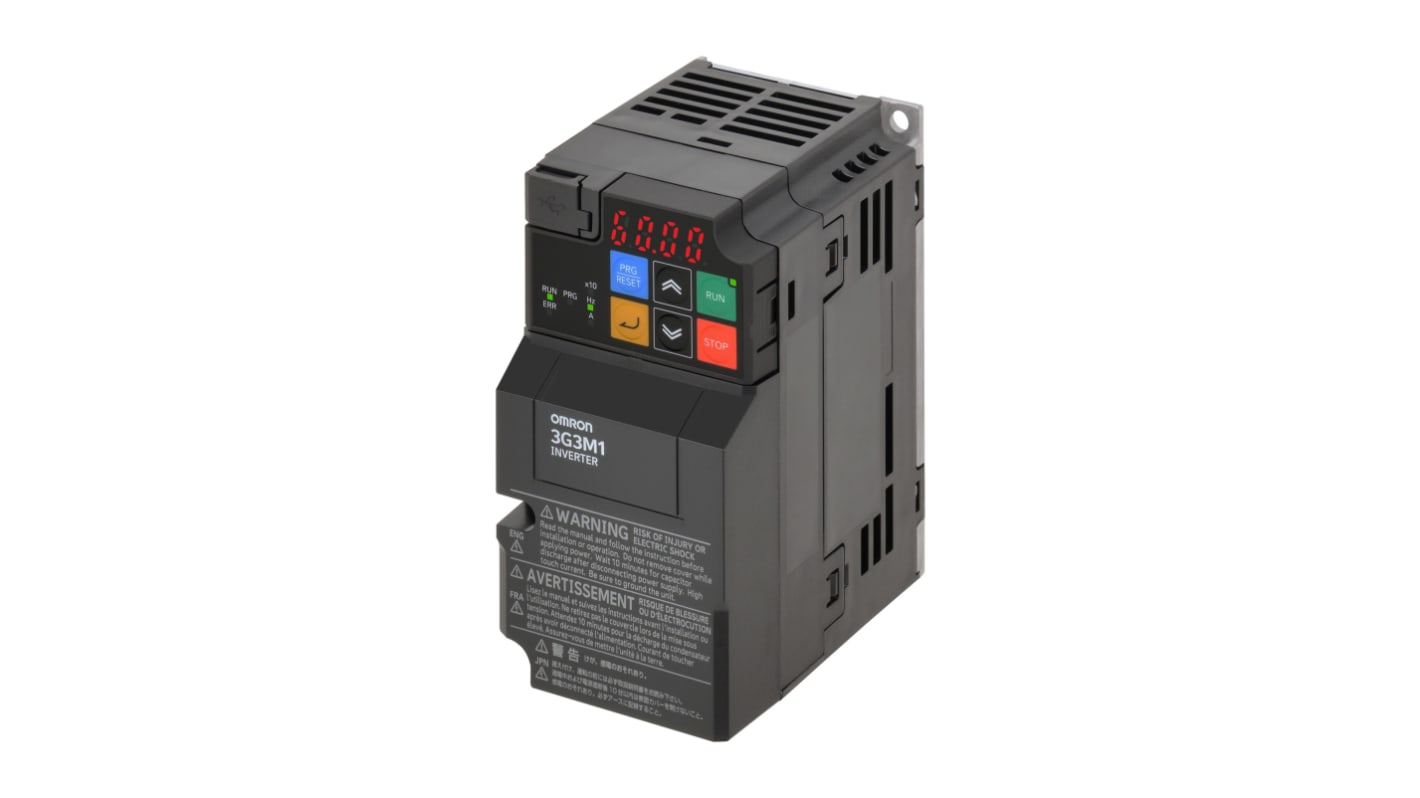

Omron Series M1 Variable Speed Drive, 0.4kW Power Rating, 1.9A Current - 3G3M1-AB002
This variable speed drive is a Compact solution designed for efficient motor control. As an AC drive with a power rating of 0.4kW, it operates on a single phase with a supply voltage of 230V AC. With overall dimensions of 127mm in length, 68mm in width, and a depth of 98mm, this unit provides significant versatility while adhering to an IP20 rating for protection. The drive supports Modbus communication, making it an excellent choice for various automation applications.
Features & Benefits
• Unique design Compact enough for limited installation space
• Handles a maximum current rating of 1.9A satisfactorily
• Designed specifically for use with AC drives for enhanced performance
• Provides reliable operation without integrated filtering
• Handles a maximum current rating of 1.9A satisfactorily
• Designed specifically for use with AC drives for enhanced performance
• Provides reliable operation without integrated filtering
Applications
• Used with industrial machinery to enhance control
• Ideal for systems requiring variable speed control capabilities
• Effective in automation needing Modbus integration
• Utilised in HVAC systems for efficient energy management
• Suitable for pump operations that demand variable frequency control
• Ideal for systems requiring variable speed control capabilities
• Effective in automation needing Modbus integration
• Utilised in HVAC systems for efficient energy management
• Suitable for pump operations that demand variable frequency control
How does this drive ensure efficient motor control?
It adjusts output frequency and voltage to match motor requirements, optimising performance and reducing energy consumption.
What type of communication does this drive support?
It supports Modbus communication, allowing for straightforward integration with existing automation systems.
What is the significance of the output frequency?
An output frequency of 590Hz ensures high-performance capabilities, enabling precise speed control for different motor applications.
