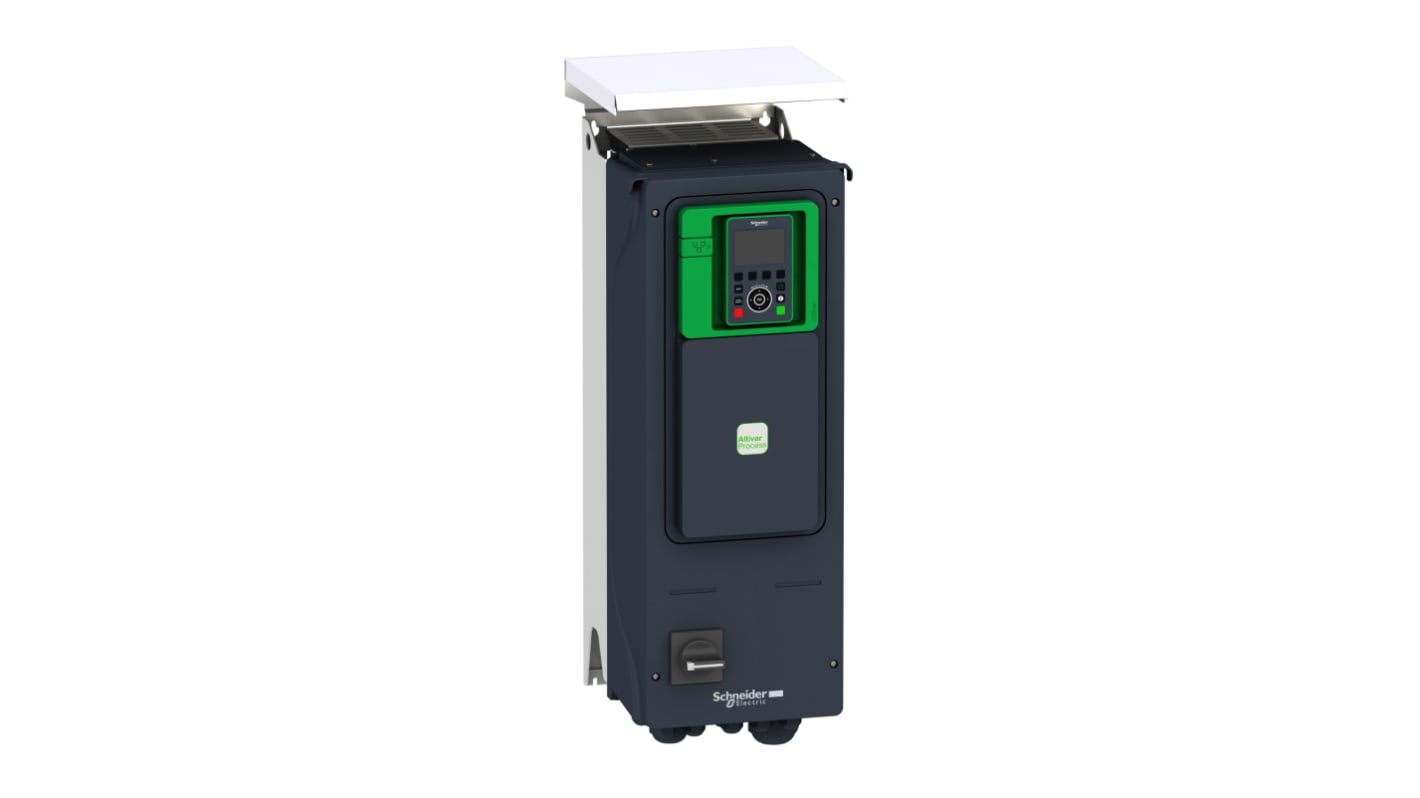

Schneider Electric Variable Speed Drive, 2.2 kW, 3 Phase, Altivar Series 480V 3.8 A
- RS Stock No.:
- 275-6762
- Mfr. Part No.:
- ATV950U22N4EU
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,272.00
(exc. VAT)
£1,526.40
(inc. VAT)
FREE delivery for orders over £60.00
- Ready to ship from 27 October 2026
Units | Per unit |
|---|---|
| 1 + | £1,272.00 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 275-6762
- Mfr. Part No.:
- ATV950U22N4EU
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 2.2kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 3.8A | |
| Series | Altivar | |
| Mount Type | Wall | |
| IP Rating | IP55 | |
| Overall Length | 678mm | |
| Minimum Supply Voltage | 380V | |
| Output Frequency | 599Hz | |
| Maximum Supply Voltage | 480V | |
| Compatible Motor Type | Asynchronous Motor, Synchronous | |
| Minimum Operating Temperature | -15°C | |
| Drive Type | Variable Speed | |
| Maximum Operating Temperature | 40°C | |
| Overall Width | 264mm | |
| Standards/Approvals | EN/IEC 61800-5-1, EN/IEC 61800-3, IEC 60721-3, IEC 61000-3-12, IEC 61508 and IEC 13849-1, UL 508C | |
| Better World Claim | Saves Energy | |
| Better World Product | Yes | |
| Overall Depth | 300mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 2.2kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 3.8A | ||
Series Altivar | ||
Mount Type Wall | ||
IP Rating IP55 | ||
Overall Length 678mm | ||
Minimum Supply Voltage 380V | ||
Output Frequency 599Hz | ||
Maximum Supply Voltage 480V | ||
Compatible Motor Type Asynchronous Motor, Synchronous | ||
Minimum Operating Temperature -15°C | ||
Drive Type Variable Speed | ||
Maximum Operating Temperature 40°C | ||
Overall Width 264mm | ||
Standards/Approvals EN/IEC 61800-5-1, EN/IEC 61800-3, IEC 60721-3, IEC 61000-3-12, IEC 61508 and IEC 13849-1, UL 508C | ||
Better World Claim Saves Energy | ||
Better World Product Yes | ||
Overall Depth 300mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
