Schneider Electric Variable Speed Drive, 75 kW, 3 Phase, 690 V, 87.7 A, ATV630 Series
- RS Stock No.:
- 275-6694
- Mfr. Part No.:
- ATV630D75Y6
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£9,077.90
(exc. VAT)
£10,893.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £9,077.90 |
*price indicative
- RS Stock No.:
- 275-6694
- Mfr. Part No.:
- ATV630D75Y6
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Power Rating | 75 kW | |
Phase | 3 | |
Supply Voltage | 690 V | |
Current Rating | 87.7 A | |
For Use With | Asynchronous & Synchronous Motors | |
Series | ATV630 | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Power Rating 75 kW | ||
Phase 3 | ||
Supply Voltage 690 V | ||
Current Rating 87.7 A | ||
For Use With Asynchronous & Synchronous Motors | ||
Series ATV630 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IN

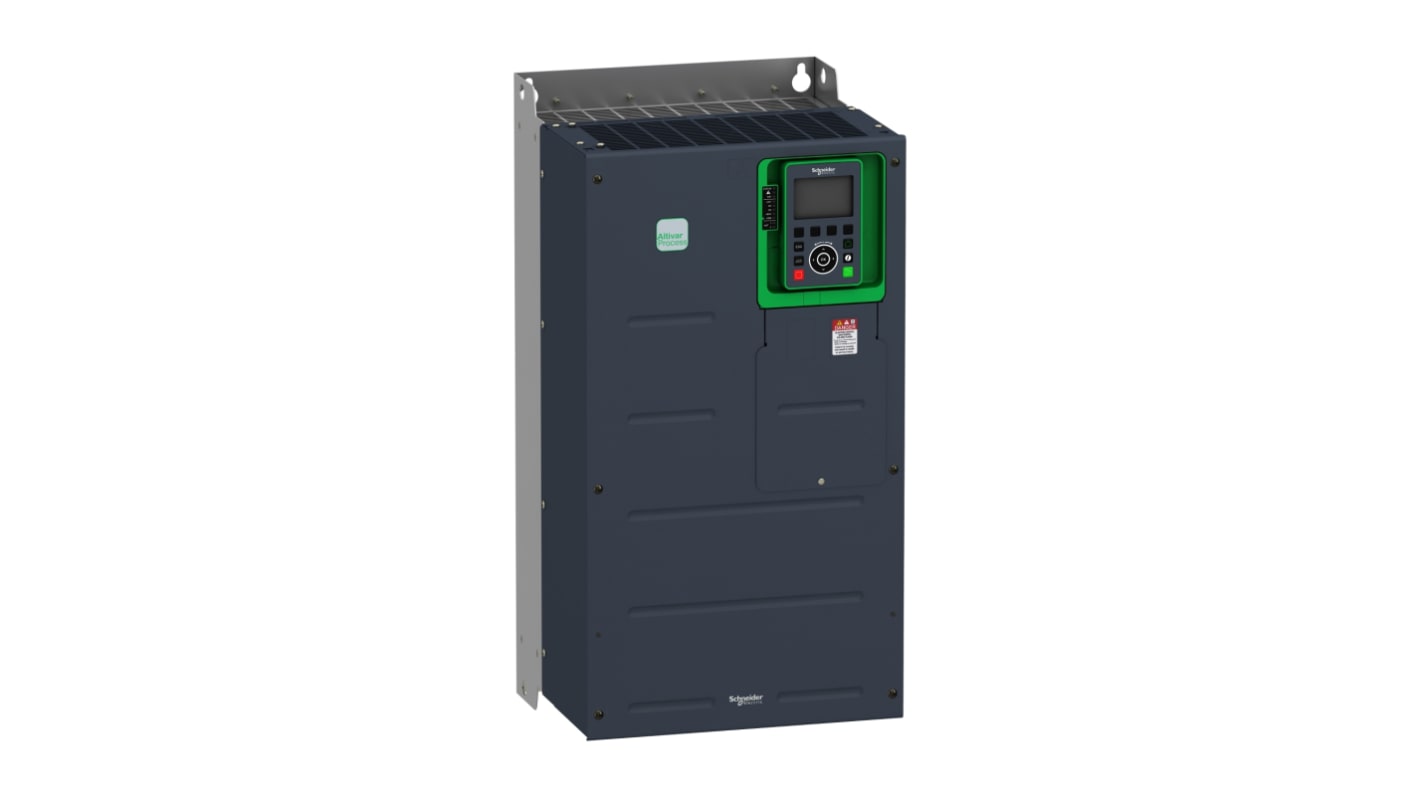

Schneider Electric ATV630D75Y6
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 75kW/100HP (500V supply voltage) for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW/75HP (500V supply voltage) for applications requiring significant overload (up to 150%). Its dimensions are 331mm (width) x 297mm (depth) x 630mm (height). It weighs 53kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
The Schneider Electric variable speed drive can feed 3-phase synchronous and asynchronous power motors. It offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications.
Efficient equipment
Improved performance
Improved performance
