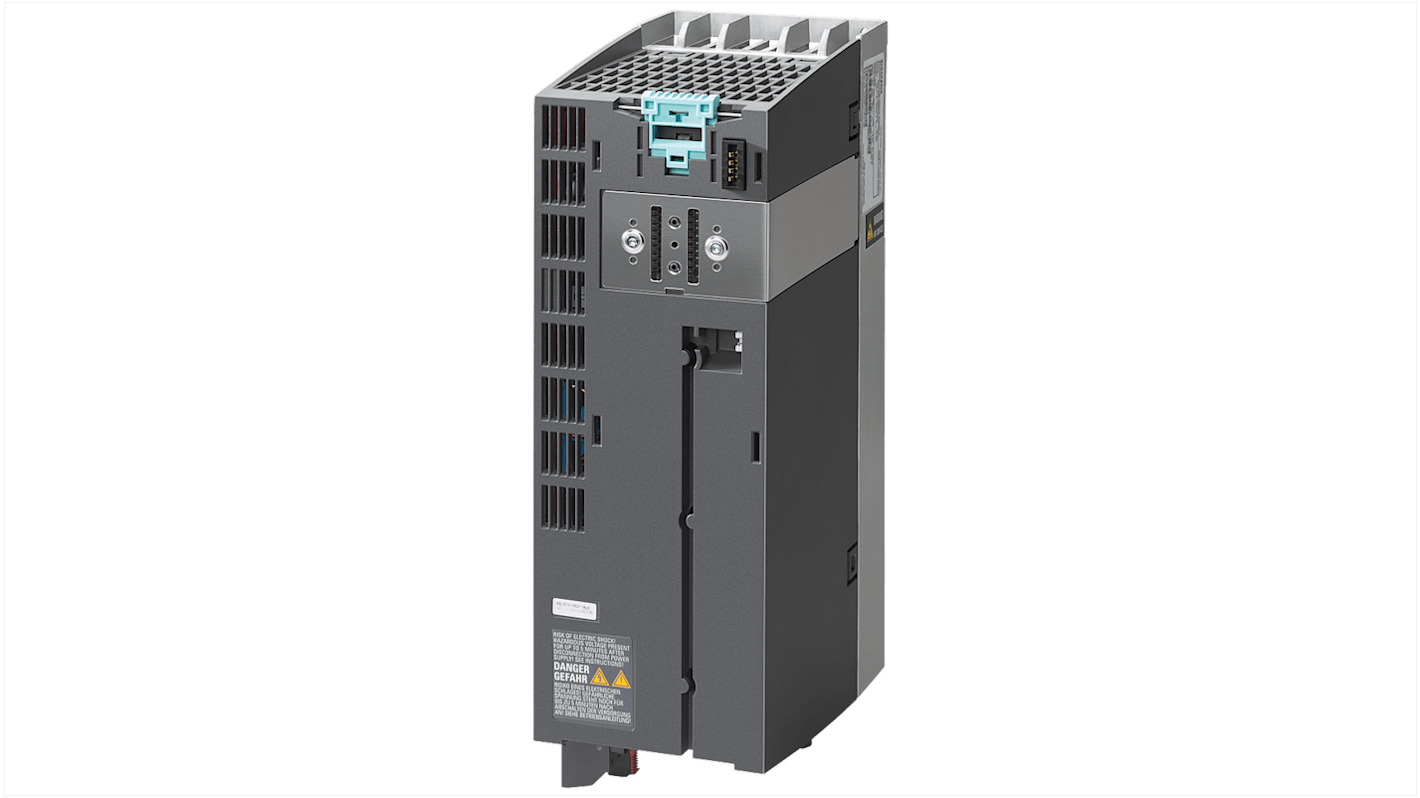

Siemens Power Module, 4 kW, 3 Phase, PM240-2 Series 240 V 7.5 A
- RS Stock No.:
- 217-6627
- Distrelec Article No.:
- 302-64-237
- Mfr. Part No.:
- 6SL3210-1PE21-1UL0
- Brand:
- Siemens
Subtotal (1 unit)*
£670.85
(exc. VAT)
£805.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £670.85 |
*price indicative
- RS Stock No.:
- 217-6627
- Distrelec Article No.:
- 302-64-237
- Mfr. Part No.:
- 6SL3210-1PE21-1UL0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Power Rating | 4kW | |
| Product Type | Power Module | |
| Number of Phases | 3 | |
| Maximum Output Current | 7.5A | |
| Series | PM240-2 | |
| Mount Type | Panel | |
| IP Rating | IP20 | |
| Overall Length | 196mm | |
| Minimum Supply Voltage | 200V | |
| Output Frequency | 200Hz | |
| Maximum Supply Voltage | 240V | |
| Minimum Operating Temperature | -5°C | |
| Compatible Motor Type | AC Motor | |
| Drive Type | Vector Control | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | UL, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC, cUL, C-Tick (RCM), CE | |
| Overall Width | 73mm | |
| Overall Depth | 165 mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Power Rating 4kW | ||
Product Type Power Module | ||
Number of Phases 3 | ||
Maximum Output Current 7.5A | ||
Series PM240-2 | ||
Mount Type Panel | ||
IP Rating IP20 | ||
Overall Length 196mm | ||
Minimum Supply Voltage 200V | ||
Output Frequency 200Hz | ||
Maximum Supply Voltage 240V | ||
Minimum Operating Temperature -5°C | ||
Compatible Motor Type AC Motor | ||
Drive Type Vector Control | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals UL, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC, cUL, C-Tick (RCM), CE | ||
Overall Width 73mm | ||
Overall Depth 165 mm | ||
- COO (Country of Origin):
- GB
The Siemens PM240-2 3-phase power module has power high overload of 3kW and power low overload of 4kW. It is unfiltered with integrated braking chopper.
Line voltage: 380V to 480V
Rated current: 13.30A
Rated voltage: 400V
IP20 rated
Internal air cooling
