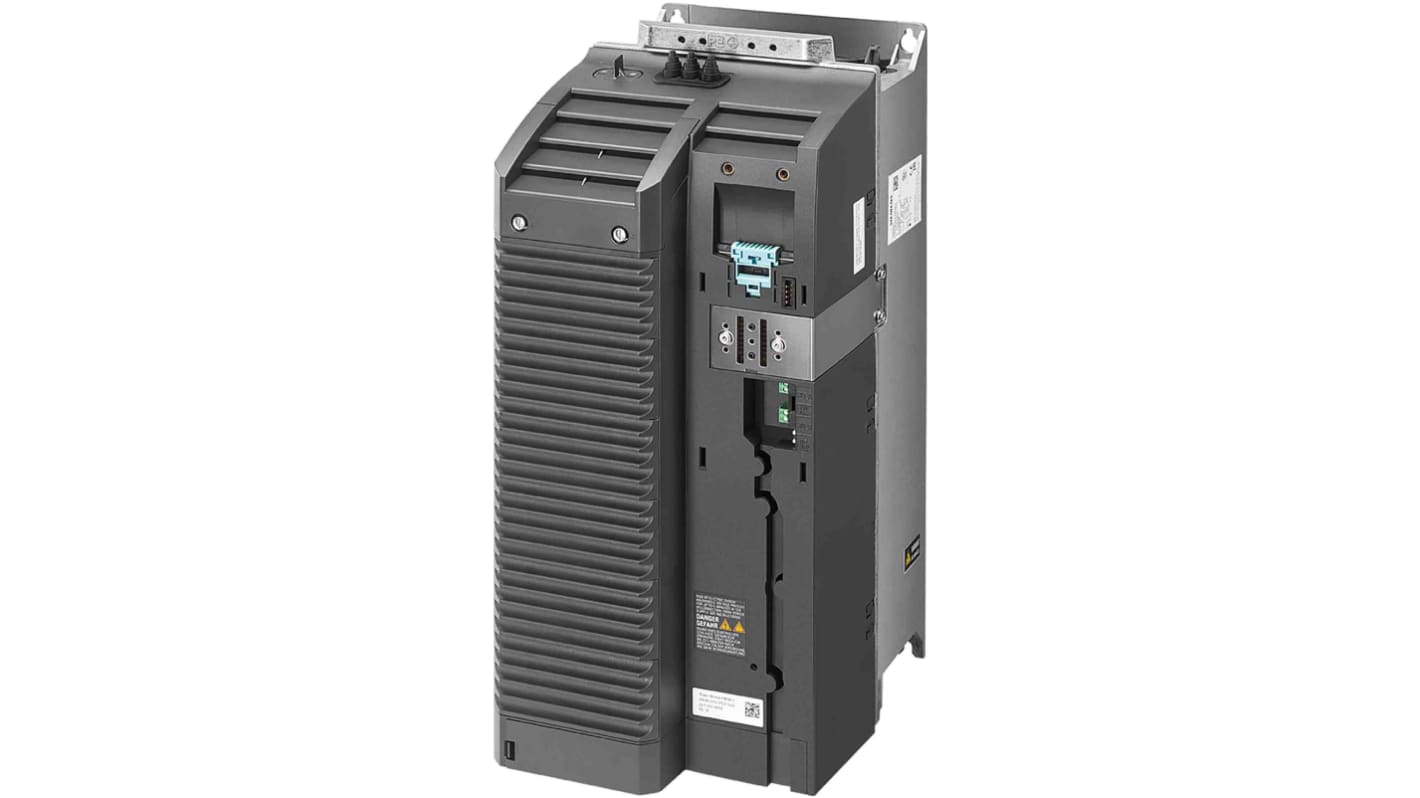

Siemens Power Module, 30 kW, 3 Phase, 380 → 480 V ac, 90 A, SINAMICS PM240-2 Series
- RS Stock No.:
- 211-6949
- Mfr. Part No.:
- 6SL3210-1PE26-0UL0
- Brand:
- Siemens
Subtotal (1 unit)*
£3,365.57
(exc. VAT)
£4,038.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,365.57 |
*price indicative
- RS Stock No.:
- 211-6949
- Mfr. Part No.:
- 6SL3210-1PE26-0UL0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Power Rating | 30 kW | |
| Phase | 3 | |
| Supply Voltage | 380 → 480 V ac | |
| Current Rating | 90 A | |
| For Use With | SINAMICS G120 | |
| Series | SINAMICS PM240-2 | |
| IP Rating | IP20 | |
| Output Frequency | 550Hz | |
| STO | Yes | |
| Filter Included | No | |
| Overall Depth | 237mm | |
| Standards Met | CE | |
| Overall Length | 472mm | |
| Overall Width | 200mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Power Rating 30 kW | ||
Phase 3 | ||
Supply Voltage 380 → 480 V ac | ||
Current Rating 90 A | ||
For Use With SINAMICS G120 | ||
Series SINAMICS PM240-2 | ||
IP Rating IP20 | ||
Output Frequency 550Hz | ||
STO Yes | ||
Filter Included No | ||
Overall Depth 237mm | ||
Standards Met CE | ||
Overall Length 472mm | ||
Overall Width 200mm | ||
- COO (Country of Origin):
- DE
Siemens Power Module, 550Hz Maximum Output Frequency, 17kg Weight - SINAMICS PM240-2 Series - 6SL3210-1PE26-0UL0
Maximise the performance of your AC motors with this three-phase power module from Siemens. It's a middleman that sits between an electrical source and your equipment to manage the precision control of speed and torque. Thanks to a current rating of 90A, the unit has the muscle to meet the demands of heavy-duty applications such as air conditioners, industrial conveyors and pumps. It runs on supply voltages between 380 and 480V AC, so it handles power dips and spikes to reduce system damage and cut downtime. The built-in STO function safely disconnects torque-generated energy to prevent accidental startups.
Features & Benefits
• IP20-rated housing shields against objects larger than 12.5mm, so it's touch-proof
• Brake chopper regulates DC link voltage to prevent damage from power surges
• Screw terminals hold conductors firmly in place for uninterrupted performance
• Brake chopper regulates DC link voltage to prevent damage from power surges
• Screw terminals hold conductors firmly in place for uninterrupted performance
Is this power module protected against overheating?
Yes, this device has internal cooling to prevent it from overheating. It works without a glitch in temperatures up to +50°C in the case of high overloads.
How big is this component?
It's a compact module measuring just 200 (W) x 472 (H) x 237mm (D), so you can easily fit it in a crowded panel.
