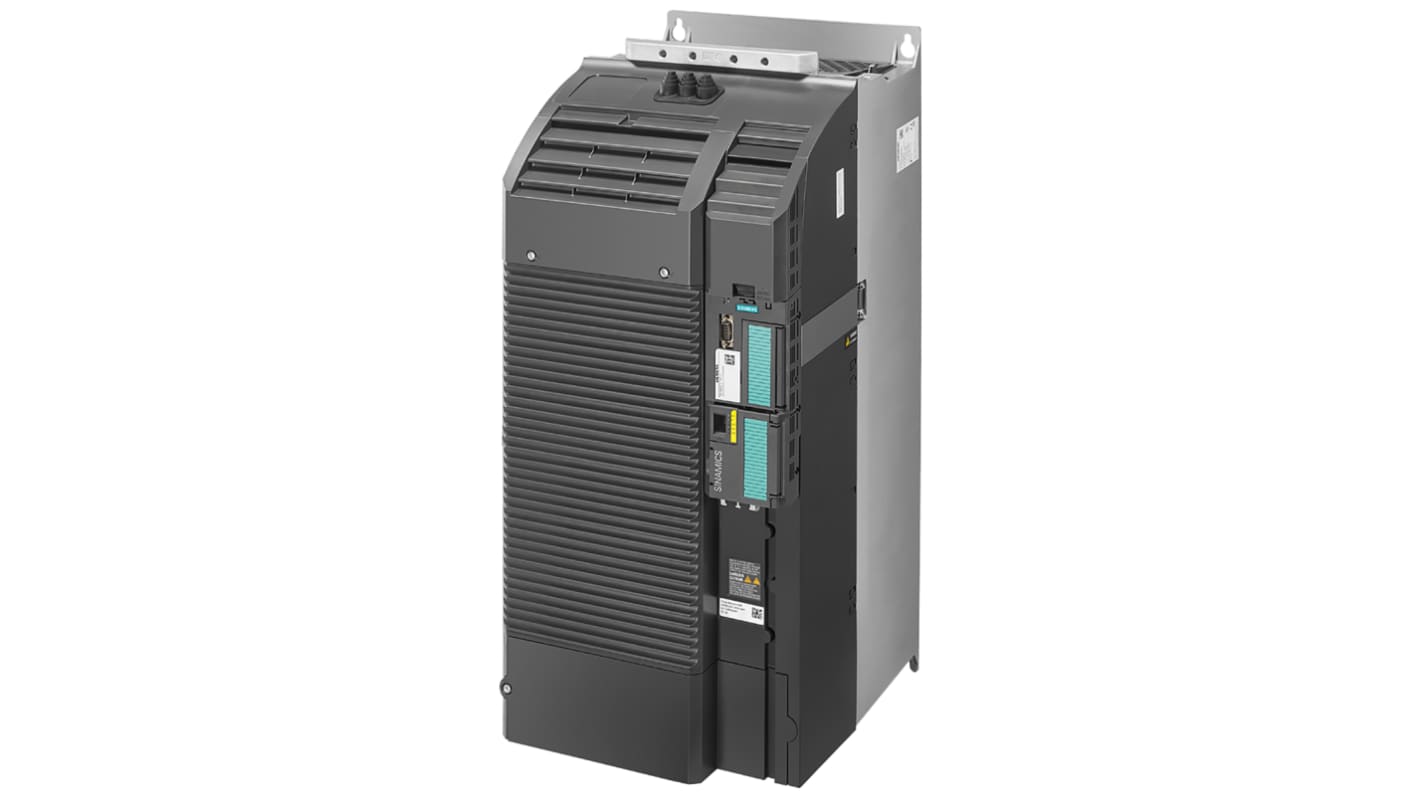

Siemens Inverter Drive, 75 kW, 3 Phase, 400 V ac, 112 A, 134 A, 6SL3210 Series
- RS Stock No.:
- 196-3711
- Mfr. Part No.:
- 6SL32101KE314UF1
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6,616.44
(exc. VAT)
£7,939.73
(inc. VAT)
- RS Stock No.:
- 196-3711
- Mfr. Part No.:
- 6SL32101KE314UF1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Power Rating | 75 kW | |
| Phase | 3 | |
| Supply Voltage | 400 V ac | |
| Current Rating | 112 A, 134 A | |
| Series | 6SL3210 | |
| For Use With | SINAMICS G120C | |
| Field Bus Communication Type | EtherNet, IP, PROFINET | |
| IP Rating | IP20 | |
| Output Frequency | 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz | |
| STO | Yes | |
| Drive Type | Vector Control | |
| Mounting Type | Panel Mount | |
| Overall Length | 305mm | |
| Interface | Ethernet | |
| Overall Depth | 708mm | |
| Special Features | Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control | |
| Overall Width | 357mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Power Rating 75 kW | ||
Phase 3 | ||
Supply Voltage 400 V ac | ||
Current Rating 112 A, 134 A | ||
Series 6SL3210 | ||
For Use With SINAMICS G120C | ||
Field Bus Communication Type EtherNet, IP, PROFINET | ||
IP Rating IP20 | ||
Output Frequency 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz | ||
STO Yes | ||
Drive Type Vector Control | ||
Mounting Type Panel Mount | ||
Overall Length 305mm | ||
Interface Ethernet | ||
Overall Depth 708mm | ||
Special Features Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control | ||
Overall Width 357mm | ||
- COO (Country of Origin):
- DE
SINAMICS G120C RATED POWER 75.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO, 1AI, 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN SIZE: FSF 708x 305x 357(HXWXD) EXTERNAL 24V
