Schneider Electric Variable Speed Drive, 2.2 kW, 1 Phase, 200 → 240 V ac, 24 A, ATV320 Series

RS Stock No.:: 186-0902
Mfr. Part No.:: ATV320U22M2WS
Brand:: Schneider Electric

Schneider Electric Variable Speed Drive, 2.2 kW, 1 Phase, 200 → 240 V ac, 24 A, ATV320 Series

Subtotal (1 unit)*

£783.82

(exc. VAT)

£940.58

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 24 August 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£783.82

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 186-0902
Mfr. Part No.:: ATV320U22M2WS
Brand:: Schneider Electric

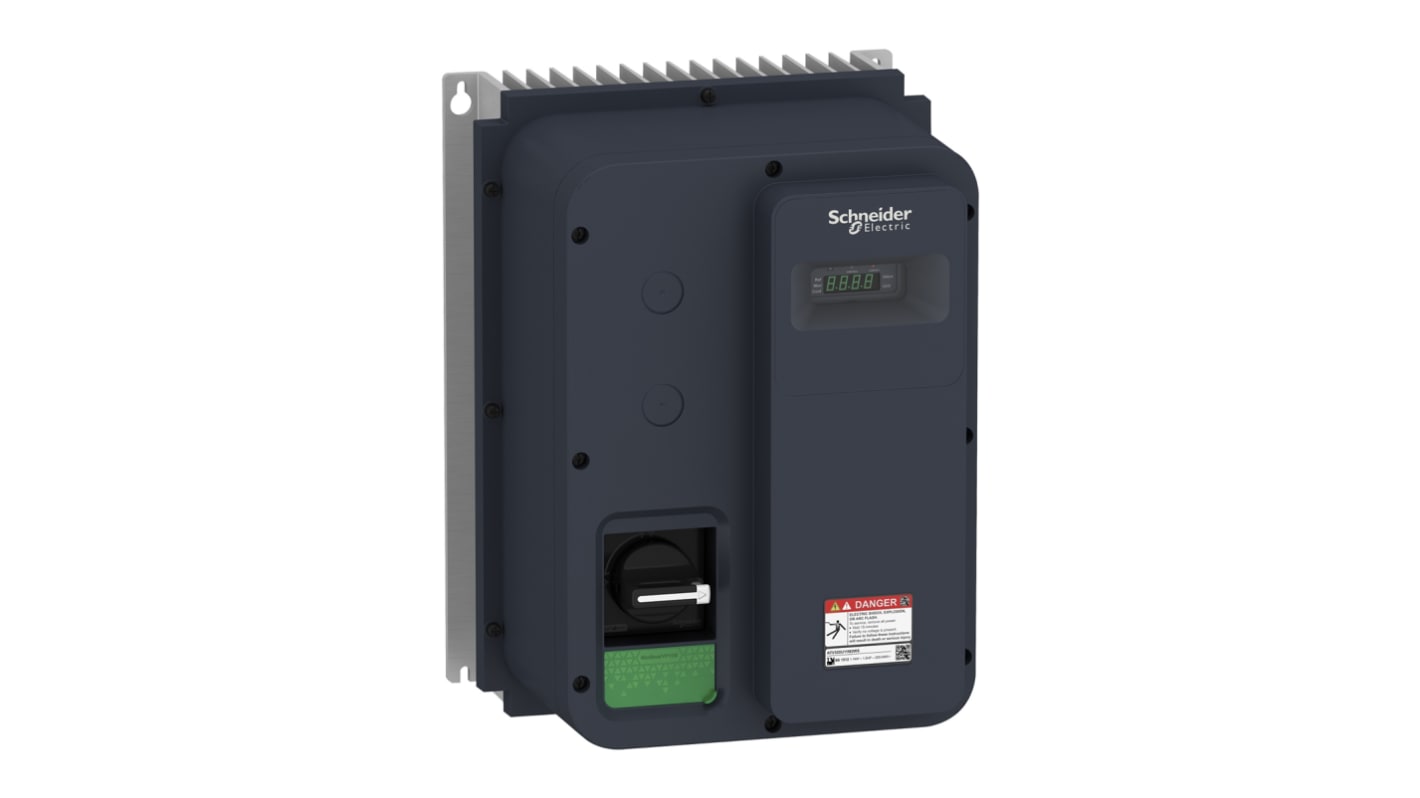

Schneider Electric ATV320U22M2WS

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed single-phase synchronous and asynchronous motors. It works at a rated power up to 2.2kW, and a rated voltage from 200V to 240V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 7.8kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Features and Benefits.

Enhanced automation capabilities through open loop motor control being combined with simplicity for asynchronous and synchronous motors – this also applies at a low speed, dynamic accuracy for start/stop applications.

Advanced connectivity with automation architectures such as EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet.

Featuring functions such as ATVLogic which bring application expertise and flexibility to the machines.

The Altivar Machine ATV320 variable speed drives carry on their predecessors’ tradition of robustness and reliability.

To maximise the machine operation time, especially as the production changes the safety diagnostics and operation, system integration and network configuration can be achieved in a timely manner.

The ATV320 has been engineered cost effective, easy installation for a number of machine layouts and for the placement for inside in places such as cabinets and machine frames.

Due to the robust, strong and reliable design these VFD’s and also having IEC 60721-3-3 class 3C3 coated printed circuit boards the variable frequency drives can extend the machine availability in harsh conditions.

This series have different mounting options, depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side)

Comprehensive embedded safety accounts for the machine having an additional safety torque OFF, four functions of full safety monitoring to simplify machine certification and compliance with Machinery Directive 2006/42/EC.

Easy-fit communication cards in cassette format.

Where would you normally find a Variable Frequency Drive?

The ATV320 series can be used in simple or/and advanced machine requirements.

This series can be used for mechanical and electrical instillations.

Material handling – small conveyors

Packaging – small labelling machines, small bagging machines

Machinery that has machines fitted with fans - Air or smoke extraction, plastic film making machines, ovens and boilers.

Simple consumer machines such as handling access barriers, rotating advertising hoardings.

The health industry such as medical beds and running machines.

They can also be found in the food and drink industry being used in machine such as mills, kneading machines and mixers.

These types of Inverter Drives can also be a great solution for companies wanting to hoist goods or materials from one place to another.

How to look after the ATV320 Series VFD.

The Altivar 12 does not need any preventative maintenance, although we do advise that you perform a few regular checks to ensure optimum delivery.

The condition and tightness of any of the connections.

Make sure that the temperature around the unit remains at an acceptable level and that ventilation is effective. The average service life of the fans is an impressive ten years.

Make sure that if any dust is apparent, it is removed.

Keep a look out that the fans are always in proper operation and that there is no physical damage to the covers.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Power Rating	2.2 kW
	Phase	1
	Supply Voltage	200 → 240 V ac
	Current Rating	24 A
	For Use With	Altivar Machine ATV320
	Series	ATV320
	Field Bus Communication Type	CANopen, Modbus
	IP Rating	IP65
	Output Frequency	0.1 → 599Hz
	STO	Yes
	Drive Type	Variable Speed
	Mounting Type	Wall Mount
	Filter Included	Yes
	Better World Product	Yes
	Better World Claim	Saves energy
	Better World Verification	Green Premium
	Function	Motor Control, Open Loop Speed Control
	Standards Met	CSA Certified, C-Tick Certified, EN/IEC 61800-3, EN/IEC 61800-5-1, GOST Certified, IEC 13849-1, IEC 60721-3, IEC 61508, NOM Certified, REACH Certified, UL 61800-5-1, UL Listed
	Overall Length	250mm
	Special Features	Extended Frequency Range for High Speed Motors
	Interface	Ethernet
	Overall Width	235mm
	Overall Depth	340mm

	Select all
	Brand Schneider Electric
	Power Rating 2.2 kW
	Phase 1
	Supply Voltage 200 → 240 V ac
	Current Rating 24 A
	For Use With Altivar Machine ATV320
	Series ATV320
	Field Bus Communication Type CANopen, Modbus
	IP Rating IP65
	Output Frequency 0.1 → 599Hz
	STO Yes
	Drive Type Variable Speed
	Mounting Type Wall Mount
	Filter Included Yes
	Better World Product Yes
	Better World Claim Saves energy
	Better World Verification Green Premium
	Function Motor Control, Open Loop Speed Control
	Standards Met CSA Certified, C-Tick Certified, EN/IEC 61800-3, EN/IEC 61800-5-1, GOST Certified, IEC 13849-1, IEC 60721-3, IEC 61508, NOM Certified, REACH Certified, UL 61800-5-1, UL Listed
	Overall Length 250mm
	Special Features Extended Frequency Range for High Speed Motors
	Interface Ethernet
	Overall Width 235mm
	Overall Depth 340mm
