Siemens Inverter Drive, 3 kW, 1, 3 Phase, 230 V ac, 35.6 A, SINAMICS G110 Series

View all Inverter Drives
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
174-9192
Mfr. Part No.:
6SL3211-0AB23-0AB1
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Power Rating

3 kW

Phase

1, 3

Supply Voltage

230 V ac

Current Rating

35.6 A

Series

SINAMICS G110

For Use With

Conveyor System, Factory Gate, Fans, Fitness Equipments, Garage Door Drive, Moving Billboards, Pumps

Field Bus Communication Type

RS485

IP Rating

IP20

Output Frequency

0 → 650Hz

Mounting Type

Panel Mount

Filter Included

Yes

Overall Length

184mm

Overall Width

152mm

Overall Depth

181mm

COO (Country of Origin):
GB

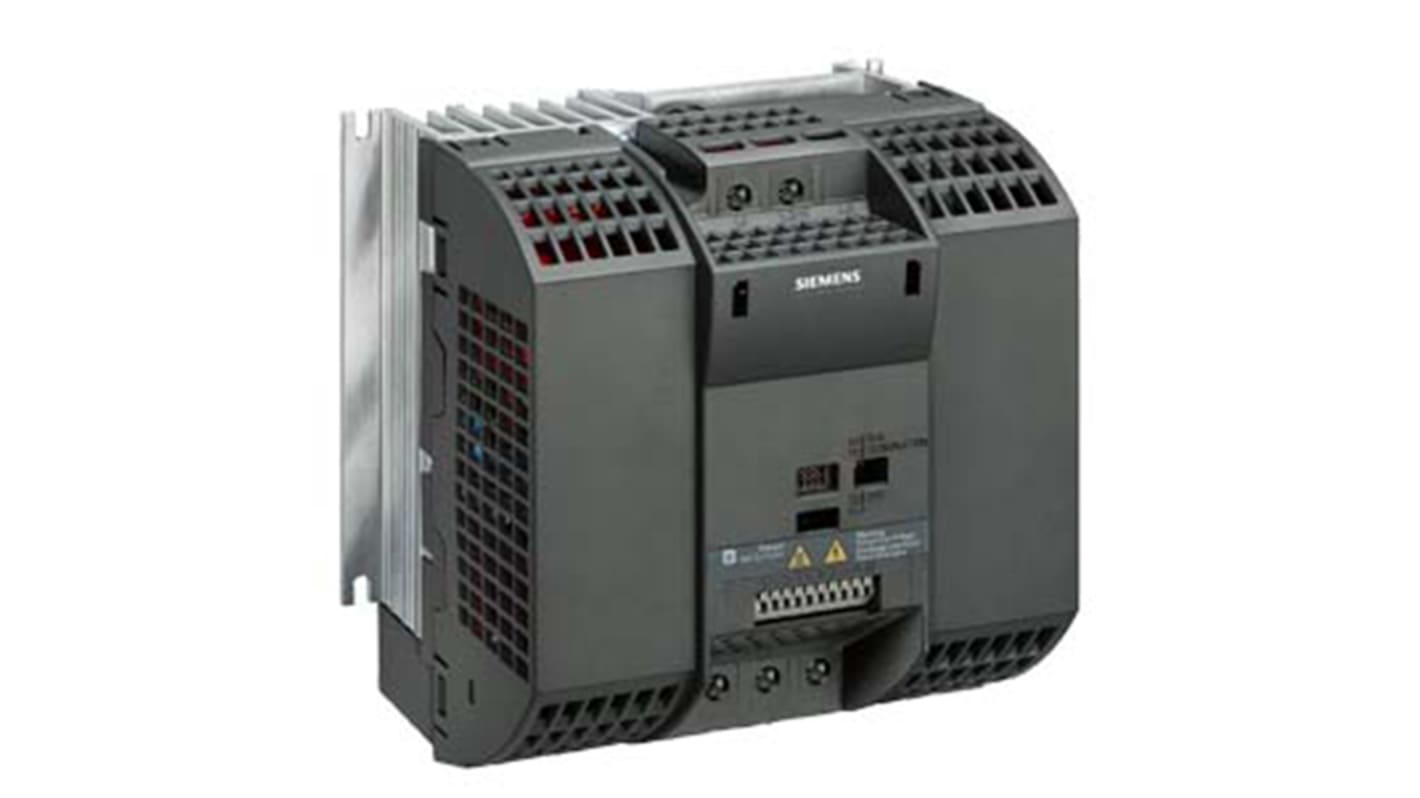

Siemens Inverter Drive


The Siemens 1-phase inverter drive from the SINAMICS G110 series has an electrical rating of 230V, 35.6A, 3kW at 650Hz. It is available with V/f linear, square-law and parameterizable control techniques. It has 3 digital inputs and 1 digital output with an isolated optocoupler output and NPN type terminal.

Features and Benefits


• Ambient temperature ranges between -10°C and 40°C
• Compact size inverter
• EMC filter to limit electromagnetic interference
• Low cost
• Panel mount inverter drive
• Parameterization is performed using the BOP operator panel or software
• Reliability
• RS485 field bus communication type
• 1-phase input and 3-phase output converter
• Wide range of output frequency up to 650Hz

Applications


• Motors drives
• Pumps
• Variable frequency drives

Certifications


• CE certified
• C-Tick (RCM) approval
• CUL certified
• IP20 rating
• UL approved
