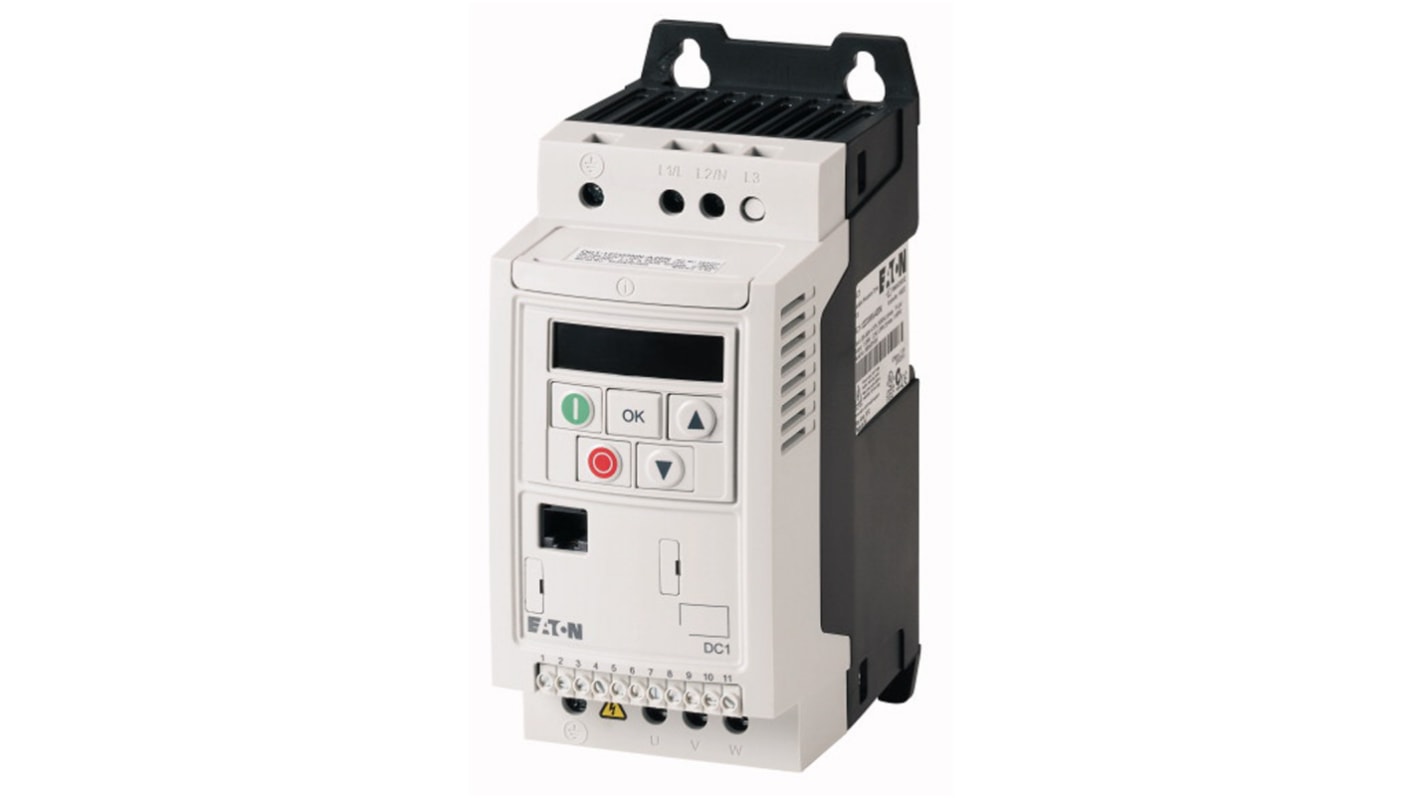

Eaton Inverter Drive, 0.75 kW, 1 Phase, 230 V ac, 7 A

RS Stock No.:: 134-8021
Mfr. Part No.:: 186091 DC1-S27D0FN-A20CE1
Brand:: Eaton

Eaton Inverter Drive, 0.75 kW, 1 Phase, 230 V ac, 7 A

Available to back order for despatch 03/09/2024

Price Each

£476.18

(exc. VAT)

£571.42

(inc. VAT)

Units	Per unit
1 +	£476.18

RS Stock No.:: 134-8021
Mfr. Part No.:: 186091 DC1-S27D0FN-A20CE1
Brand:: Eaton

Technical Reference

Legislation and Compliance

Product Details

Eaton PowerXL Compact Inverter Drives DC1 Series - Single Phase Input 230V

The Eaton DC1 inverter series of compact variable frequency drives have been specifically designed for simple applications. With only 14 basic parameters and simple mounting and installation, the DC1 drives are perfect for quick commissioning. These compact variable frequency drives are ideal for mass production applications in the field of machine building. Expansion modules can be easily plugged into these drives and make it possible to expand the number of I/Os. Typical applications for these drives include fans, pumps, and conveyor systems.

Features and Benefits

• Single-phase input / three-phase motor connection
• Digital LED display
• These drives can be used as stand-alone units directly on-site if they are equipped with a setpoint potentiometer, a selector switch, and a mains transfer switch.
• Fast commissioning with 14 basic parameters
• V/Hz control with start voltage boost and slip compensation
• Integrated PI controller
• Integrated CANopen and Modbus
• Large overload capability: 150% for 60 seconds, 175% for 2 seconds
• A high-performance range of 0.37kW to 22 kW for maximum flexibility
• IP20 & IP66 rated enclosure

How do Inverter Drives Work?

Inverter drive, also known as AC drives, variable frequency drives (VFD) variable speed drives (VSD) or frequency converters, are a type of speed drive that allows you as the user to adjust the speed or output torque of electric motors. Inverter drives are controlled by inputting specific frequencies or parameters into the device to tell it what to do, allowing for greater control over your machinery and operations. These drives have many applications of use from small appliances like a simple fan and pump load all the way through to high torque machine control applications.

Note

Eaton formerly known as Moeller

Eaton PowerXL DC1

Specifications

Attribute	Value
Power Rating	0.75 kW
Phase	1
Supply Voltage	230 V ac
Current Rating	7 A
Series	Eaton Moeller
For Use With	AC Motor, Conveyor Belt Systems, Fan, Pump
Field Bus Communication Type	CANOpen
IP Rating	IP20
STO	No
Drive Type	Vector Control
Mounting Type	Flange Mount
Filter Included	Yes
Overall Depth	184mm
Function	Motor Control
Standards Met	CE, cUL, EAC, RCM, UkrSEPRO, UL
Overall Width	124mm
Special Features	Control of High Efficient IE4 Motors, DC Braking, Detachable Control Signal Terminal Strip, Fast Commissioning with 14 Basic Parameters, Full Short Circuit Protection, Integrated Braking Transistor, Integrated Canopen & Modbus RTU, Integrated EMC Filter, Integrated PI Controller, Large Overload Capability, Sensorless Vector Control, V/F Control, Voltage Boost
Overall Length	81mm
