Danfoss Inverter Drive, 1.5 kW, 3 Phase, FC280 Series 480V 5.9 A
- RS Stock No.:
- 125-0777
- Mfr. Part No.:
- 134U7716
- Brand:
- Danfoss
Subtotal (1 unit)*
£959.39
(exc. VAT)
£1,151.27
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £959.39 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 125-0777
- Mfr. Part No.:
- 134U7716
- Brand:
- Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Danfoss | |
| Product Type | Inverter Drive | |
| Power Rating | 1.5kW | |
| Number of Phases | 3 | |
| Maximum Output Current | 5.9A | |
| Series | FC280 | |
| Mount Type | Panel | |
| Overall Length | 75mm | |
| IP Rating | IP20 | |
| Minimum Supply Voltage | 380V | |
| Output Frequency | 500Hz | |
| Maximum Supply Voltage | 480V | |
| Drive Type | Variable Frequency | |
| Compatible Motor Type | Induction Motor | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed | |
| Overall Width | 168mm | |
| Better World Product | Yes | |
| Better World Claim | Saves Energy | |
| Overall Depth | 210mm | |
| Select all | ||
|---|---|---|
Brand Danfoss | ||
Product Type Inverter Drive | ||
Power Rating 1.5kW | ||
Number of Phases 3 | ||
Maximum Output Current 5.9A | ||
Series FC280 | ||
Mount Type Panel | ||
Overall Length 75mm | ||
IP Rating IP20 | ||
Minimum Supply Voltage 380V | ||
Output Frequency 500Hz | ||
Maximum Supply Voltage 480V | ||
Drive Type Variable Frequency | ||
Compatible Motor Type Induction Motor | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed | ||
Overall Width 168mm | ||
Better World Product Yes | ||
Better World Claim Saves Energy | ||
Overall Depth 210mm | ||
- COO (Country of Origin):
- DK

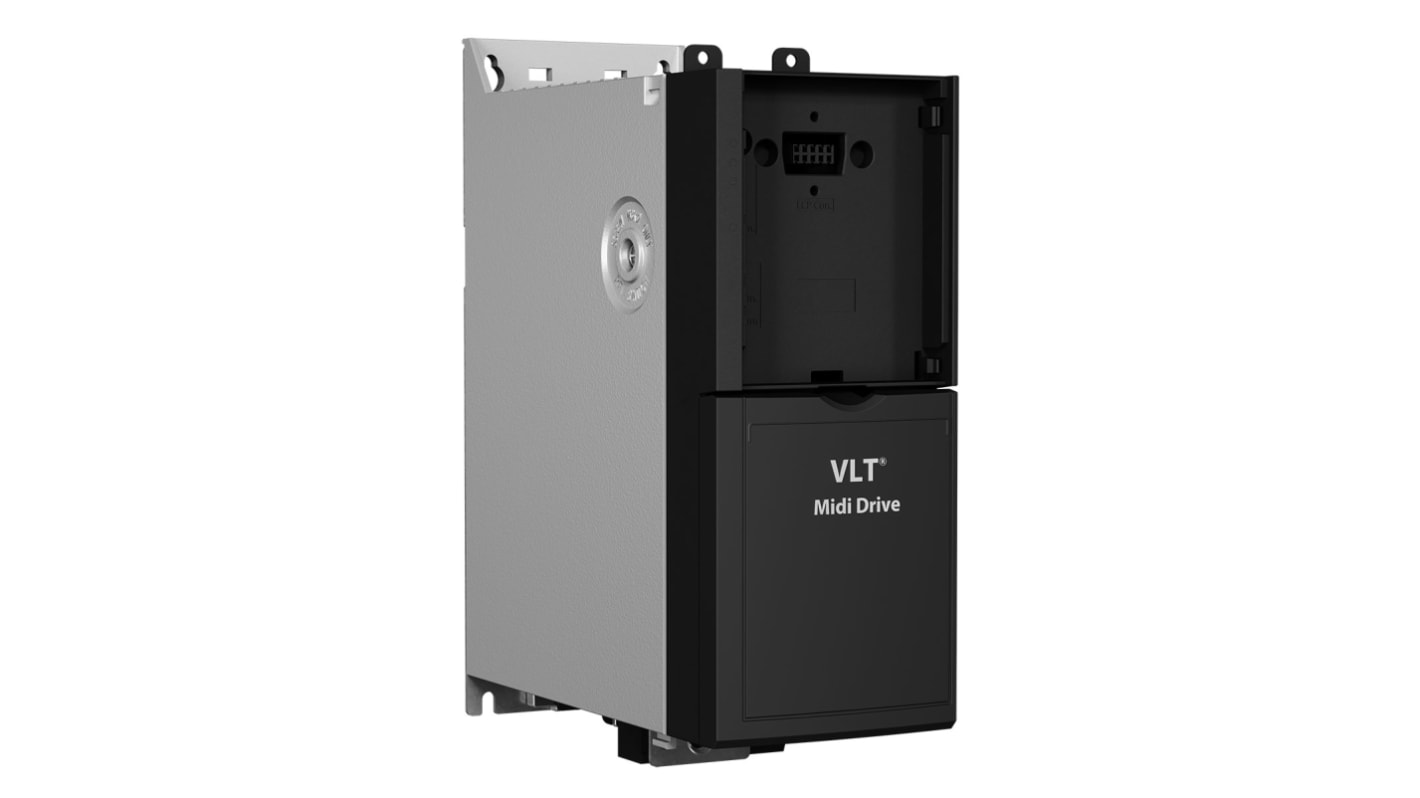

Inverter VLT FC280
The VLT Midi drive FC280 provides a wide range of features that are designed to make installing, using and maintaining the AC drive as simple and easy as possible. The midi inverter drive is an ideal choice in various applications for its strong control performance, functional safety and flexible fieldbus communication.
The drives are prepared for compatibility with the VLT 2800 for a fast, efficient retrofit.
Features and Benefits
• Compact design for easy and fast installation and set-up
• Delivered without Control panel
• Control panel with LCD available in two versions:
• Savings on cost and space
• Flexibility to suit any task
• Pluggable connectors, integrated DC choke, RFI filter and dual-channel STO functional safety
• Integrated PID controller
• Easy PC connection via integrated USB port
• Fieldbus communication options, depending on model:
- Profibus
- Profinet with dual port
- Ethernet/IP with dual port
- CANopen
- Modbus RTU and FC Protocol are integrated as standard
• Programmable digital and analogue inputs and outputs
Danfoss VLT FC280 Range
Note
No control panel is included, to be purchased separately
