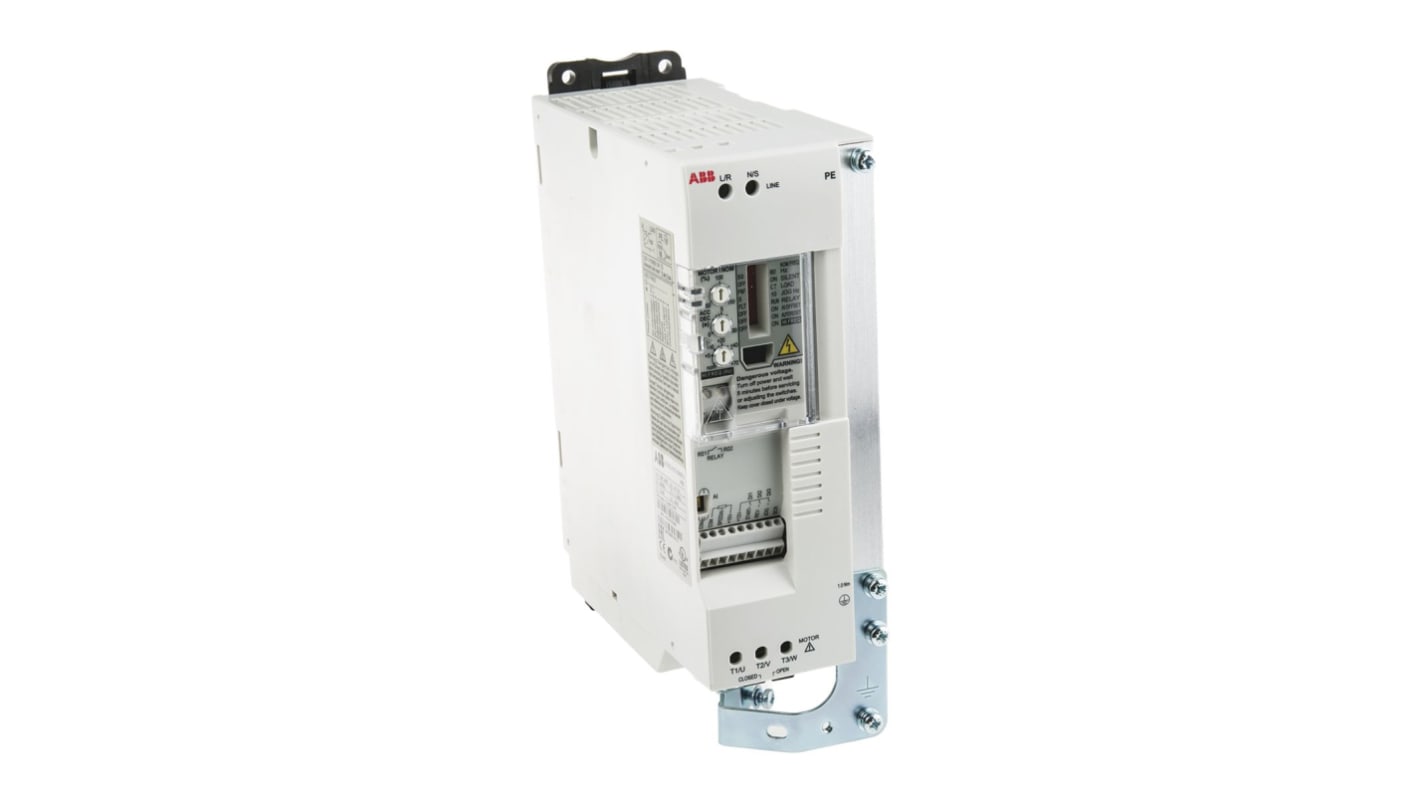

ABB Inverter Drive, 2.2 kW, 1 Phase, 240 V, 9.8 A, ACS55 Series

An easy to use range of drives designed specifically for the control of low-power motors which do not require the control sophistication of more complex drive units, designed to give the benefits of variable control to users of simple motor starters. Easy to set up, programme and control the motor speed when using the optional potentiometer unit (stock no 493-1059)

The motor control is scalar control, so is suitable for simple applications without the need for highly accurate speed or torque control. Like fans, pumps, simple conveyors and simple machines. The simple interface is designed to introduce users of DOL starters to the advantages of variable speed.

No programming required, easy and descriptive interface used to set up the motor control
All drive set-up is done using the 3 panel potentiometers, including motor nominal current
8 dip switches for other parameters including nominal motor frequency, load torque type (for example, pump/fan or constant torque), jog, AI offset (4-20 mA) and auto reset
Possible to access additional parameters via a PC tool (optional), the PC tool also allows programming with no power connected to the drive module
Fault and status indication LEDs
Adjustable switching frequency (for low noise)
Accel and Decel ramp rates, fixed frequencies available to program
Built-in EMC filter, suitable for domestic networks
As it is a VSD, motor protection is on-board, overcurrent, overvoltage, overloads all included
Removable mounting clip for DIN Rail or wall mounting from either the rear or side of the drive.
Please see the data sheets for dimensions etc.
Protection rating IP20

ABB ACS55 drives bring several benefits:
Improves motor speed control compared to DOL
Easy migration for users of simple motor starters
Helps to eliminate starting and stopping problems
May be networked with other automation equipment (via I/O)
Load compensation features
Sophisticated motor protection and control
Single phase supply controlling a 3 phase motor

Motors may require de-rating when used in conjunction with motor speed controllers, as their cooling fans may not provide sufficient cooling when running slower, please contact ABB if help is required.

CE, C-Tick approvals, UL, cUL, GOST R and RoHS compliant

This inverter drive is designed to optimise the performance of AC motors across various applications. With a power rating of 2.2kW and operating at a supply voltage of 240V, it features a compact design that measures 226mm in length, 70mm in width, and has an overall depth of 159mm. The drive is tailored for single-phase use and delivers high efficiency in both commercial and domestic settings.

• Compact design enhances installation flexibility in confined spaces
• Easy configuration using potentiometers and DIP switches
• High switching frequency reduces motor noise for improved operation
• Fast programming allows adjustments without power connection
• IP20 rating ensures protection for indoor installations

• Control of AC motors in automatic gates
• Operation of exercise equipment such as treadmills
• Powering whisper-quiet whirlpool baths
• Managing solar trackers for optimal energy capture
• Driving fans and pumps for HVAC systems

It utilises a scalar U/f control method, which means it adjusts the voltage and frequency together to achieve the desired motor speed and torque characteristics effortlessly. This method ensures efficient motor control in various applications.

It offers a DriveConfig kit that enables advanced configuration through a PC, including programming accelerations, decelerations, and maximum frequency settings. This flexibility is useful for matching specific application requirements.

It operates effectively in temperatures from -20°C to +40°C. With appropriate derating, it can function at temperatures up to +55°C, ensuring versatility for different environments.

Yes, its features and built-in EMC filter make it suitable for a wide range of settings, including residential installations and various commercial applications. Its design ensures compatibility in both environments.

ABB - ACS Range
