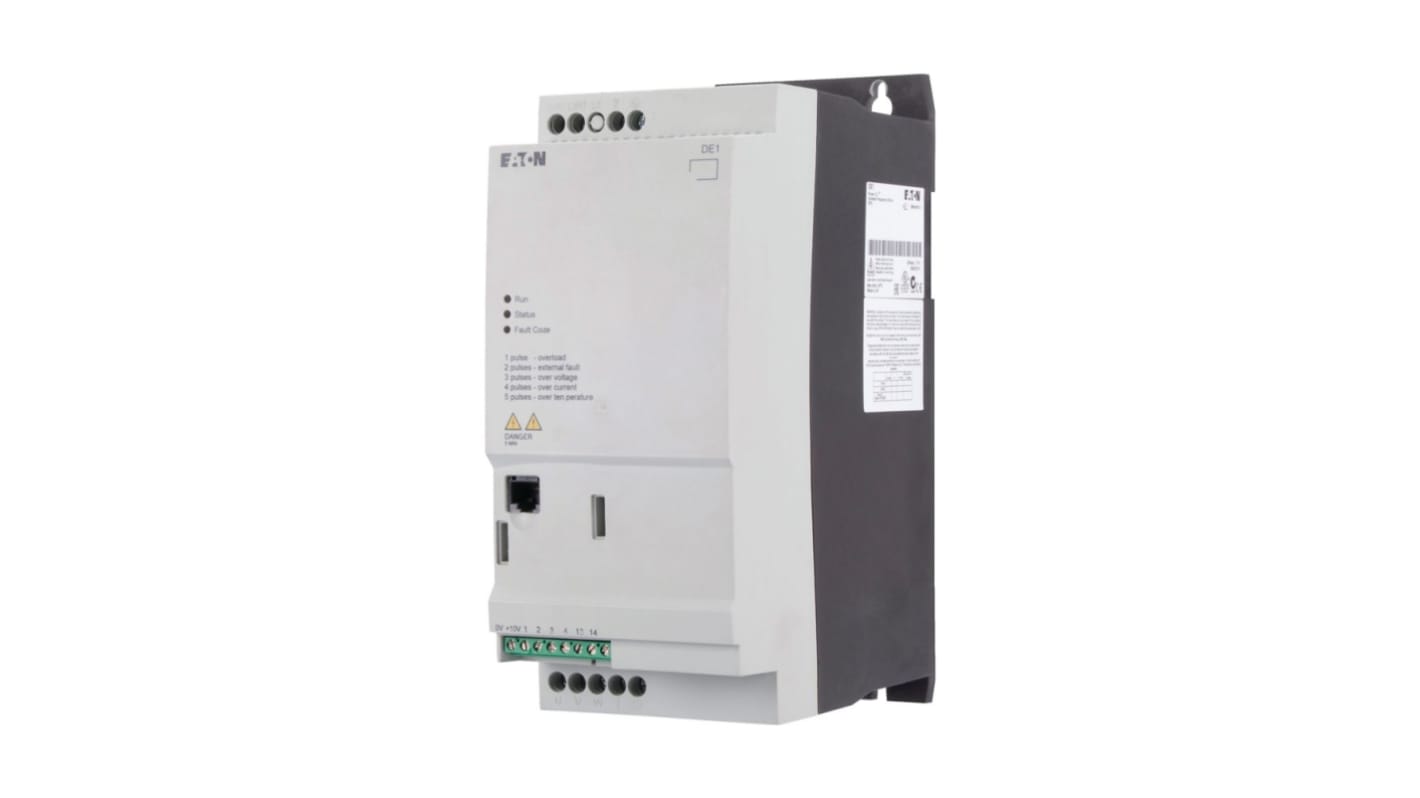

Eaton Variable Speed Starter, 3 kW, 3 Phase, DE1 Series 400V 9.9 A
- RS Stock No.:
- 124-813
- Mfr. Part No.:
- 177369 DE1-346D6NN-N20N
- Brand:
- Eaton
Subtotal (1 unit)*
£380.00
(exc. VAT)
£456.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £380.00 |
*price indicative
- RS Stock No.:
- 124-813
- Mfr. Part No.:
- 177369 DE1-346D6NN-N20N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Variable Speed Starter | |
| Power Rating | 3kW | |
| Number of Phases | 3 | |
| Maximum Output Current | 9.9A | |
| Series | DE1 | |
| Mount Type | Vertical | |
| Overall Length | 169mm | |
| IP Rating | IP20 | |
| Output Frequency | 300Hz | |
| Minimum Supply Voltage | 400V | |
| Maximum Supply Voltage | 400V | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 90mm | |
| Standards/Approvals | UL Report Applies to both US and Canada, UL File No.:E172143, UL Category Control No.:NMMS, UL 508C, UL, Safety requirements:IEC/EN 61800-5-1, RCM, NMMS7, ISO 9001 Specification for general requirements:IEC/EN 61800-2, IEC/EN61800-5, IEC/EN61800-3, IEC/EN 61800-3, cUL, CSA-C22.2 No. 14, CE, by UL for use in Canada | |
| Overall Depth | 169mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Variable Speed Starter | ||
Power Rating 3kW | ||
Number of Phases 3 | ||
Maximum Output Current 9.9A | ||
Series DE1 | ||
Mount Type Vertical | ||
Overall Length 169mm | ||
IP Rating IP20 | ||
Output Frequency 300Hz | ||
Minimum Supply Voltage 400V | ||
Maximum Supply Voltage 400V | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 90mm | ||
Standards/Approvals UL Report Applies to both US and Canada, UL File No.:E172143, UL Category Control No.:NMMS, UL 508C, UL, Safety requirements:IEC/EN 61800-5-1, RCM, NMMS7, ISO 9001 Specification for general requirements:IEC/EN 61800-2, IEC/EN61800-5, IEC/EN61800-3, IEC/EN 61800-3, cUL, CSA-C22.2 No. 14, CE, by UL for use in Canada | ||
Overall Depth 169mm | ||
- COO (Country of Origin):
- GB
The Eaton Variable speed starter features a IP20/NEMA 0 protection. It conforms to international standards, including IEC/EN 61800-2 for general requirements, IEC/EN 61800-3 for EMC compliance, and IEC/EN 61800-5-1 for safety specifications.
RoHS compliant
Climatic proofing
ISO 9001 and IEC/EN61800-5 certified
Electromagnetic compatibility according to EN 61800-3
