The assistant control panel features various assistants and a built in help function to guide the user. It includes a real time clock, which can be used as start/ stop. The control panel can be used for copying parameters for back up or downloading to another drive. A large graphical display and softkeys make it extremely easy to navigate.

Alphanumeric and graphical backlit display
Intuitive “mobile phone like” use
Allows parameters to be displayed and set
Start-up, maintenance and diagnostic assistants
Control of the drive with start, stop, forward and reverse keys
2 ’soft keys’
Help button that gives information from the manual
Gives suggestions to resolve a trip if one occurs
Upload and download capabilities to copy between drives
Real time clock and calendar
Fault logger with time and date stamping of 7 signals
Changed parameters list
I/O connection list
14 languages supported at the same time

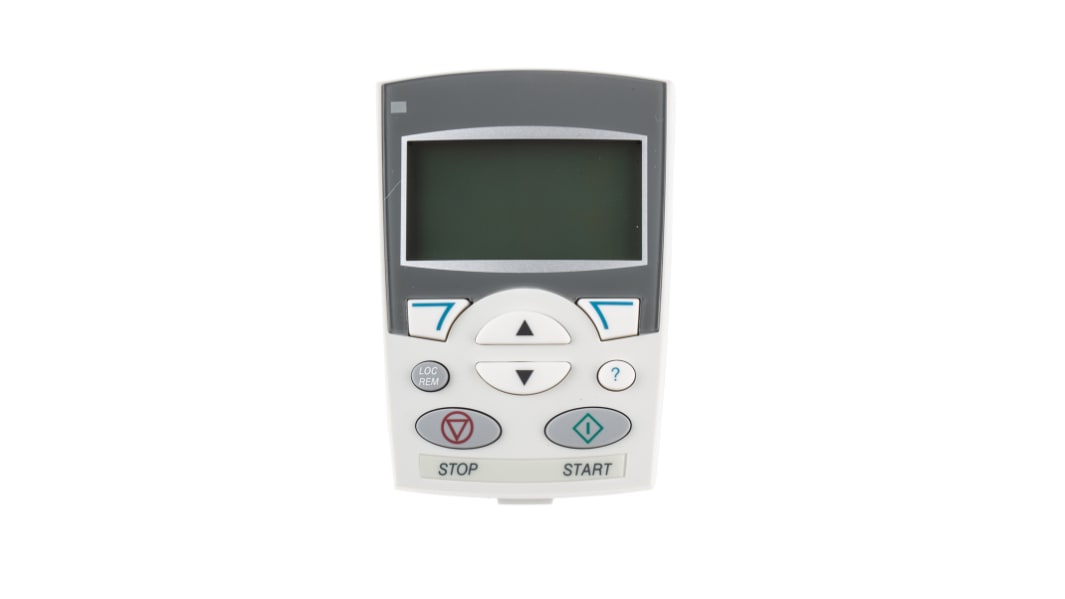

Control your standard drive with this operator panel from ABB. This unit is compatible with drives from the ACS310, ACS350, ACS355 and ACS550 series and can control multiple units at the same time. You can use it to copy parameter data from one drive to another or to back up a drive’s memory. Its large display is easy to read and the interface is simple and intuitive to use, with a built-in help button for easy access to assistance.

• Two soft keys for programming instant access to your most needed features
• Real-time clock to log faults and activate the device at a specific time
• Easy to set up with a new drive for quick device commissioning
• Provides fault diagnosis to heighten safety
• Multi-lingual interface makes operation more accessible

• Food processing machinery
• Conveyors
• Material handling
• Chemical plants

The device is designed to be used in a way you might recognise from using a mobile phone. Its backlit screen displays alphanumerical and graphical information, which you can scroll through using the grippy 'up' and 'down' buttons.

ABB - ACS Range
