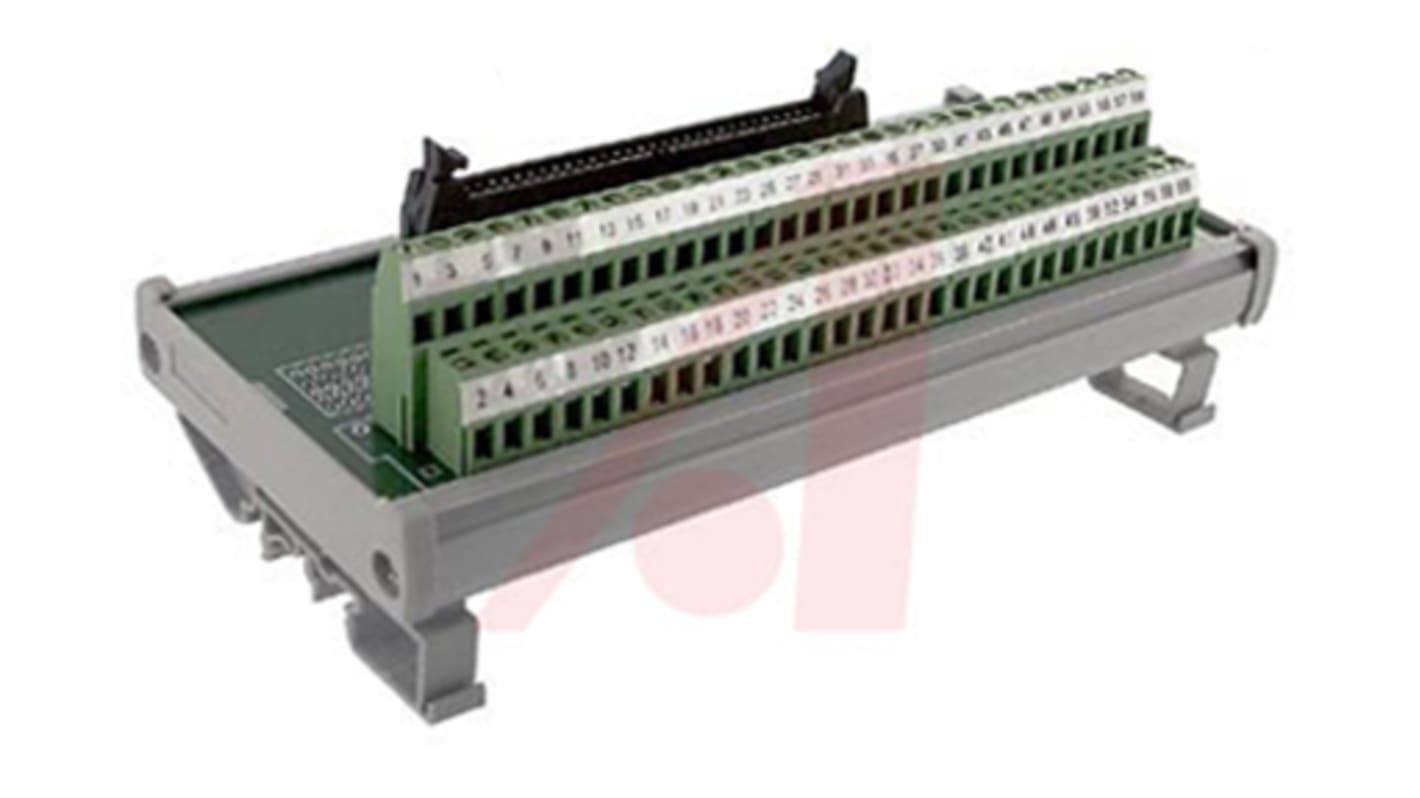

Altech, 60 Pole SD-F37 Connector, Female Interface Module, DIN Rail Mount

  • RS Stock No. 900-1282
  • Mfr. Part No. 5728.2
  • Brand Altech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Altech Ribbon Cable Modules

A series of Altech compact Ribbon Connector Modules. These connector modules provide an interface between multi wire flat cables outfitted with IDC connectors and discrete wires. Up to 64 conductors can be terminated, saving time and eliminating common wiring mistakes. Used in various applications such as communications, data processing and process control they are a remarkable set of products. All models are highly reliable and excellent quality.

Specifications
Attribute Value
Gender Female
Wire Size 0.5 → 4 mm²
Number of Contacts 60
Connector Type SD-F37
Mounting Type DIN Rail Mount
Voltage Rating 250 V ac
Current Rating 3A
Dimensions 180 x 87 x 70 (TS35 x 7.5) mm, 180 x 87 x 75 (TS32 x 15) mm
Depth 70 (TS35 x 7.5) mm, 75 (TS32 x 15) mm
Length 180mm
Width 87mm
Available to back order for despatch 01/05/2020
Price Each
£ 88.18
(exc. VAT)
£ 105.82
(inc. VAT)
Units
Per unit
1 +
£88.18
