- RS Stock No.:
- 607-7911
- Mfr. Part No.:
- 2962609
- Brand:
- Phoenix Contact
Available to back order for despatch 07/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£66.24
(exc. VAT)
£79.49
(inc. VAT)
Units | Per unit |
1 - 10 | £66.24 |
11 - 25 | £64.41 |
26 + | £62.65 |
- RS Stock No.:
- 607-7911
- Mfr. Part No.:
- 2962609
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details

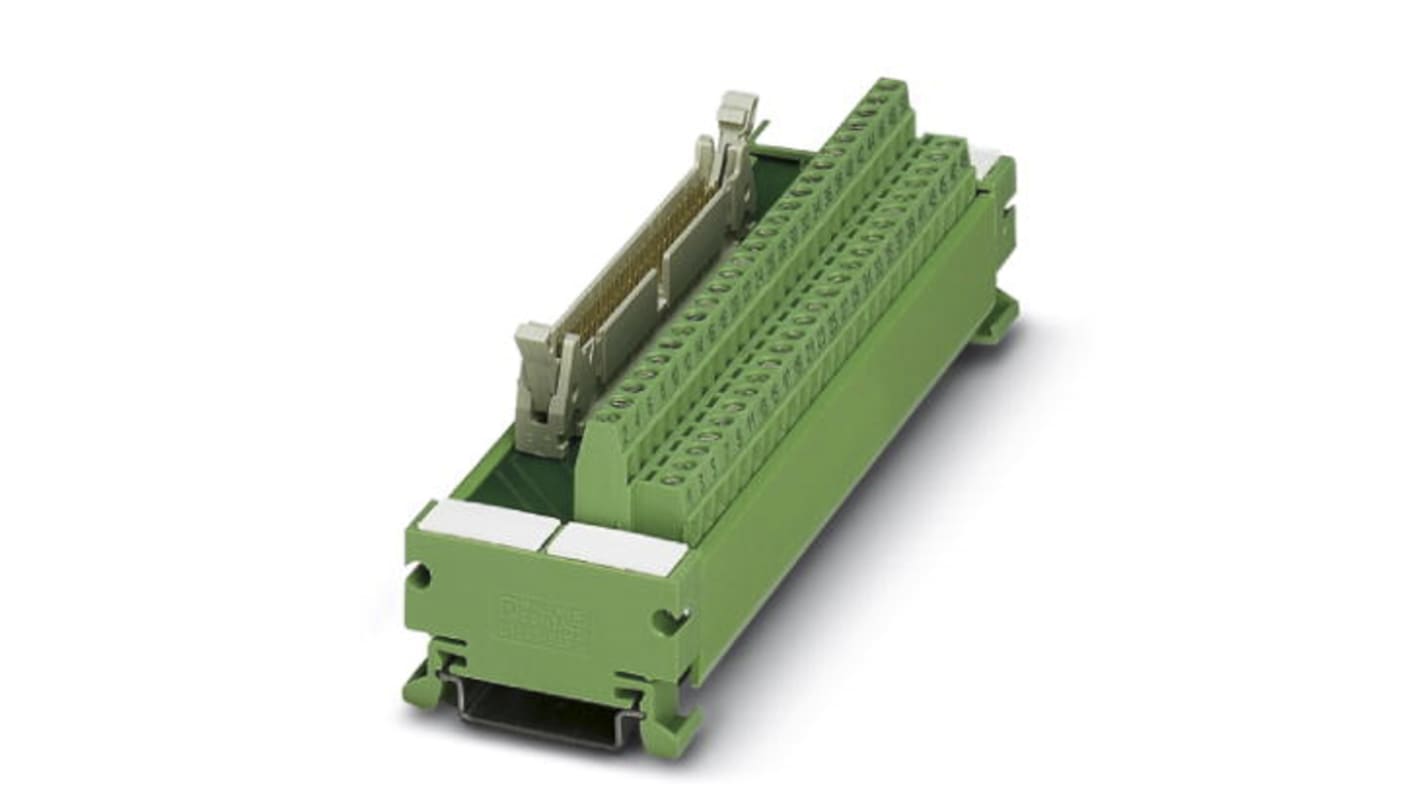

UM 45-FLK 10...64 Wiring Module
Connects ribbon cable socket boards with screw or tension spring terminals (ZFKDS)
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
Standards
IEC 60664, DIN VDE 0110
Approvals
UL, CUL
Specifications
Attribute | Value |
---|---|
Gender | Male |
Wire Size | 26 → 16 AWG |
Number of Contacts | 40 |
Connector Type | Flat Ribbon Cable |
Mounting Type | DIN Rail Mount |
Test Proof Voltage | 500V ac |
Voltage Rating | 25 V ac, 60 V dc |
Current Rating | 1A |
Cable CSA | 0.14 → 1.5mm² |
Dimensions | 126 x 50 x 45mm |
Depth | 45mm |
Length | 126mm |
Minimum Operating Temperature | -20°C |
Width | 50mm |
Maximum Operating Temperature | +50°C |
