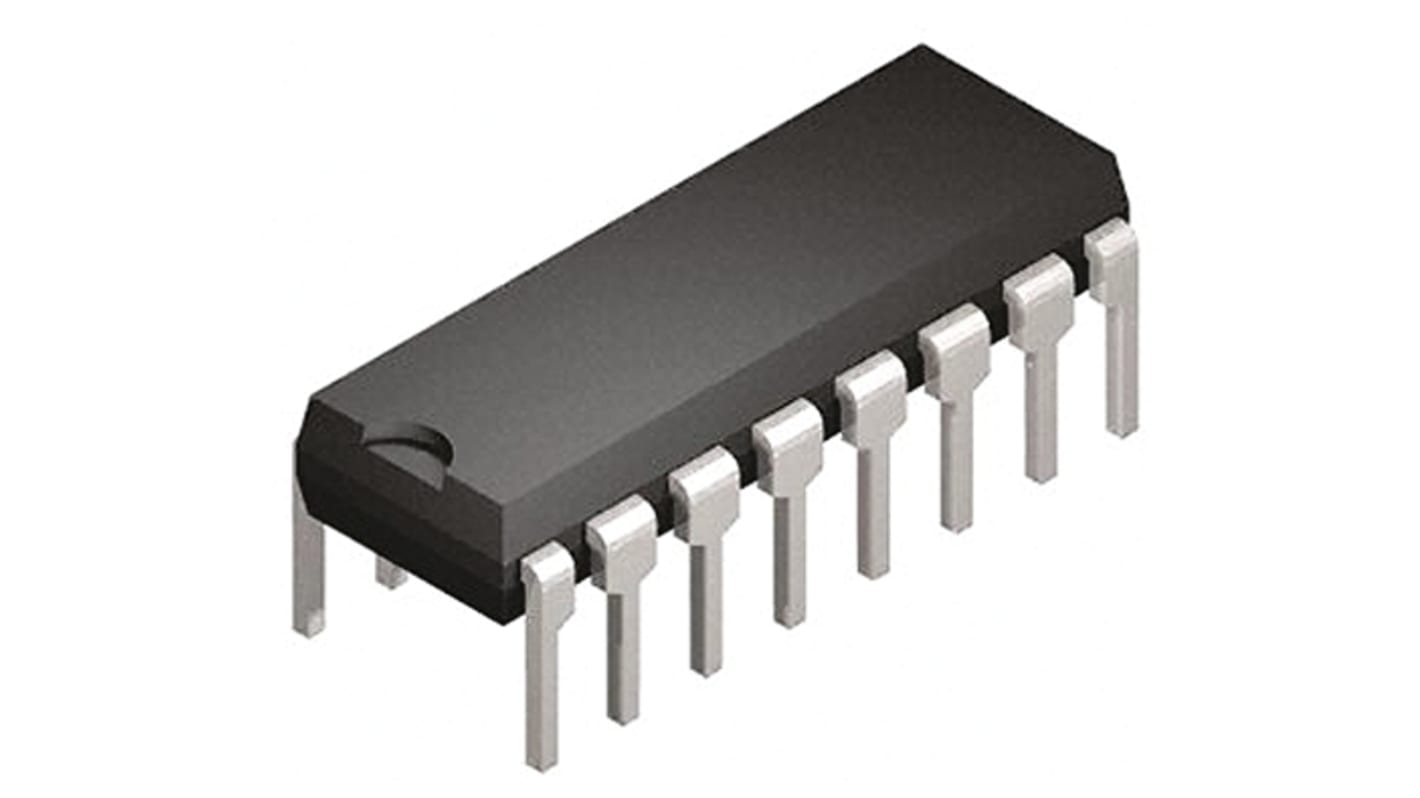

AD524CD Analog Devices, Instrumentation Amplifier, 50μV Offset 25MHz, 16-Pin SBDIP
- RS Stock No.:
- 809-9297
- Mfr. Part No.:
- AD524CD
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 809-9297
- Mfr. Part No.:
- AD524CD
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Power Supply Type | Dual | |
| Package Type | SBDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 16 | |
| Typical Dual Supply Voltage | ±15V | |
| Maximum Input Offset Voltage | 50µV | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Input Resistance | 10GΩ | |
| Minimum CMRR | 120dB | |
| Typical Gain Bandwidth Product | 25MHz | |
| Maximum Supply Current | 10 nA, 15 nA | |
| Dimensions | 21.34 x 7.87 x 3.56mm | |
| Width | 7.87mm | |
| Height | 3.56mm | |
| Length | 21.34mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Power Supply Type Dual | ||
Package Type SBDIP | ||
Mounting Type Through Hole | ||
Pin Count 16 | ||
Typical Dual Supply Voltage ±15V | ||
Maximum Input Offset Voltage 50µV | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Maximum Input Resistance 10GΩ | ||
Minimum CMRR 120dB | ||
Typical Gain Bandwidth Product 25MHz | ||
Maximum Supply Current 10 nA, 15 nA | ||
Dimensions 21.34 x 7.87 x 3.56mm | ||
Width 7.87mm | ||
Height 3.56mm | ||
Length 21.34mm | ||
Non Compliant
Instrumentation Amplifiers, Analog Devices
The Instrumentation Amplifier ICs amplify the difference between two input signal voltages, while rejecting any signals that are common to both inputs. The DC precision and gain accuracy is maintained within a noisy environment, and also where large common-mode signals (AC power line frequency) are present.
Instrumentation Amplifiers, Analog Devices
A range of Instrumentation Amplifiers from Analog Devices. This range of products also includes numerous evaluation and development boards.
