Fluke VT04 Infrared Thermometer, -10°C Min, +250°C Max, °C and °F Measurements
- RS Stock No.:
- 785-1000
- Mfr. Part No.:
- FLUKE-VT04
- Brand:
- Fluke
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 785-1000
- Mfr. Part No.:
- FLUKE-VT04
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Absolute Maximum Temperature Measurement | +250°C | |
| Temperature Scale | Centigrade, Fahrenheit | |
| Best Accuracy | ±2 % | |
| Distance to Spot Ratio | 9:1 | |
| Absolute Minimum Temperature Measurement | -10°C | |
| Emissivity | 0.95 | |
| Model Number p | VT04 | |
| Resolution | 250 mK | |
| Data Storage | Yes | |
| Length | 210mm | |
| Width | 75mm | |
| Height | 55mm | |
| Weight | 300g | |
Select all | ||
|---|---|---|
Brand Fluke | ||
Absolute Maximum Temperature Measurement +250°C | ||
Temperature Scale Centigrade, Fahrenheit | ||
Best Accuracy ±2 % | ||
Distance to Spot Ratio 9:1 | ||
Absolute Minimum Temperature Measurement -10°C | ||
Emissivity 0.95 | ||
Model Number p VT04 | ||
Resolution 250 mK | ||
Data Storage Yes | ||
Length 210mm | ||
Width 75mm | ||
Height 55mm | ||
Weight 300g | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB

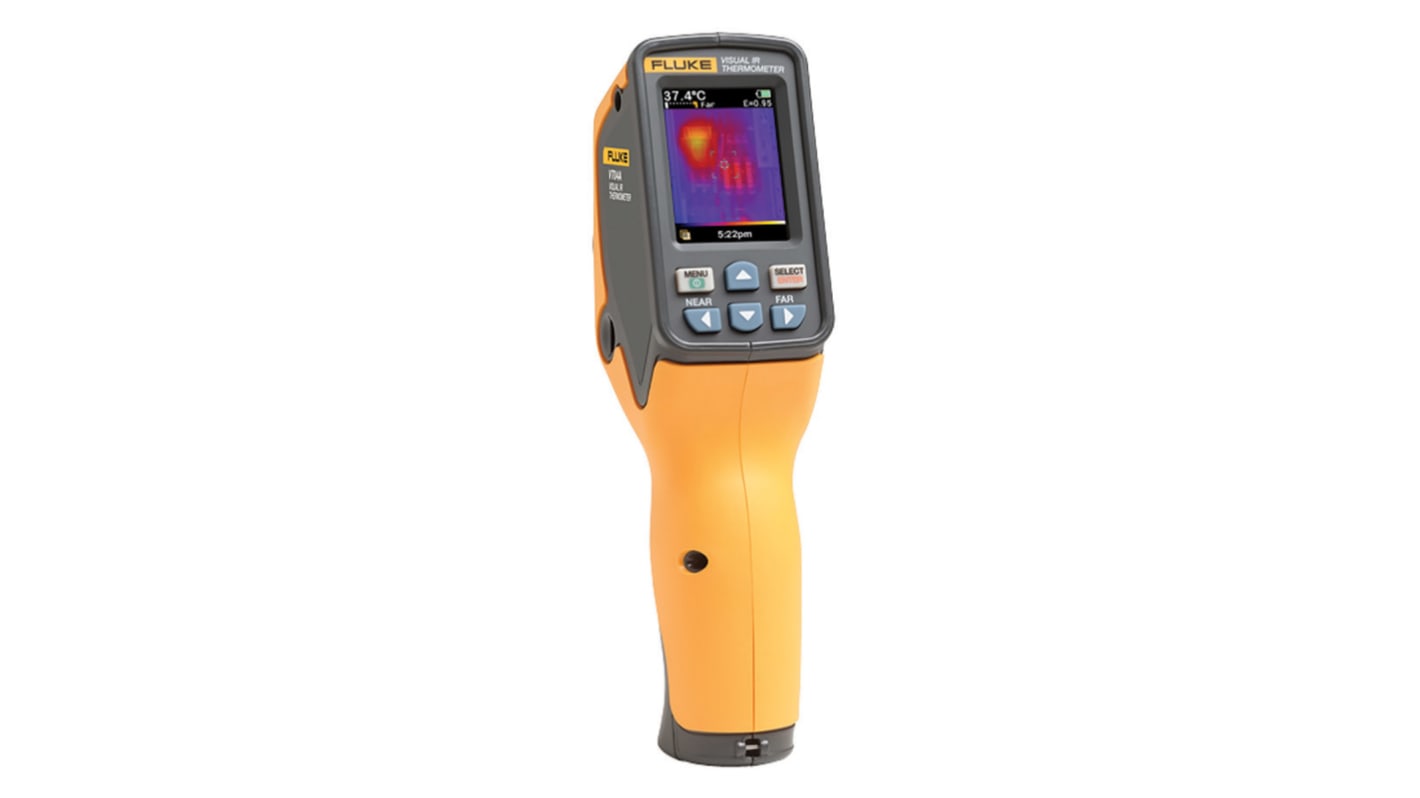

Fluke VT04 Visual IR Thermometer
Fluke visual IR thermometers are widely used for electrical, building services and facilities operation and maintenance applications. They combine surface temperature measurement with real-time thermal and visual images. The thermal image eliminates the time necessary for component-by-component measurement associated with a traditional spot thermometer (radiometer). The Fluke VT04 offers also Hi/Lo temperature alarms, time-lapse image capture and auto-monitoring. Its PyroBlend Plus optics give sharp images (four times sharper than VT02). They also give a wide field of view (28° x 28°) for improved scanning and up-close evaluation. In addition to its use in making professional reports, the SmartView software can be used to store up to 10 000 images per GB on the Micro-SD card 4 GB (included). The SmartView software and the product manual are available for free download at www.fluke.com/vtsmartview and www.fluke.com/vtmanual.
Features & Benefits
Fully automatic with built-in intelligence
Built-in digital camera
Compact, pocket-size design 210 x 75 x 55 mm, 40% smaller than entry-level infrared cameras
Centre point temperature measurement
Single-button blending (5 modes) of digital and thermal images, to instantly indicate exact location of issue
Alarm and time-lapse features
Automatic hot and cold spot trackers
SmartView reporting software
Li-ion rechargeable 3.6 V, 2250 mAh, 8.1 Wh battery (supplied), battery life 8 hours
Low cost instrument with no cost of training or need for additional software
Temperature range -10 °C to +250 °C
Note
Please charge the battery before using the VT04 for the first time
Supplied with
Hard Case, rechargeable battery, Micro-SD card 4 Gb, Micro-SD conversion adaptor to standard, Wall plug with worldwide adaptors, USB to micro-USB cable, Printed quick start guides (English, French, German, Spanish and Simplified Chinese).
