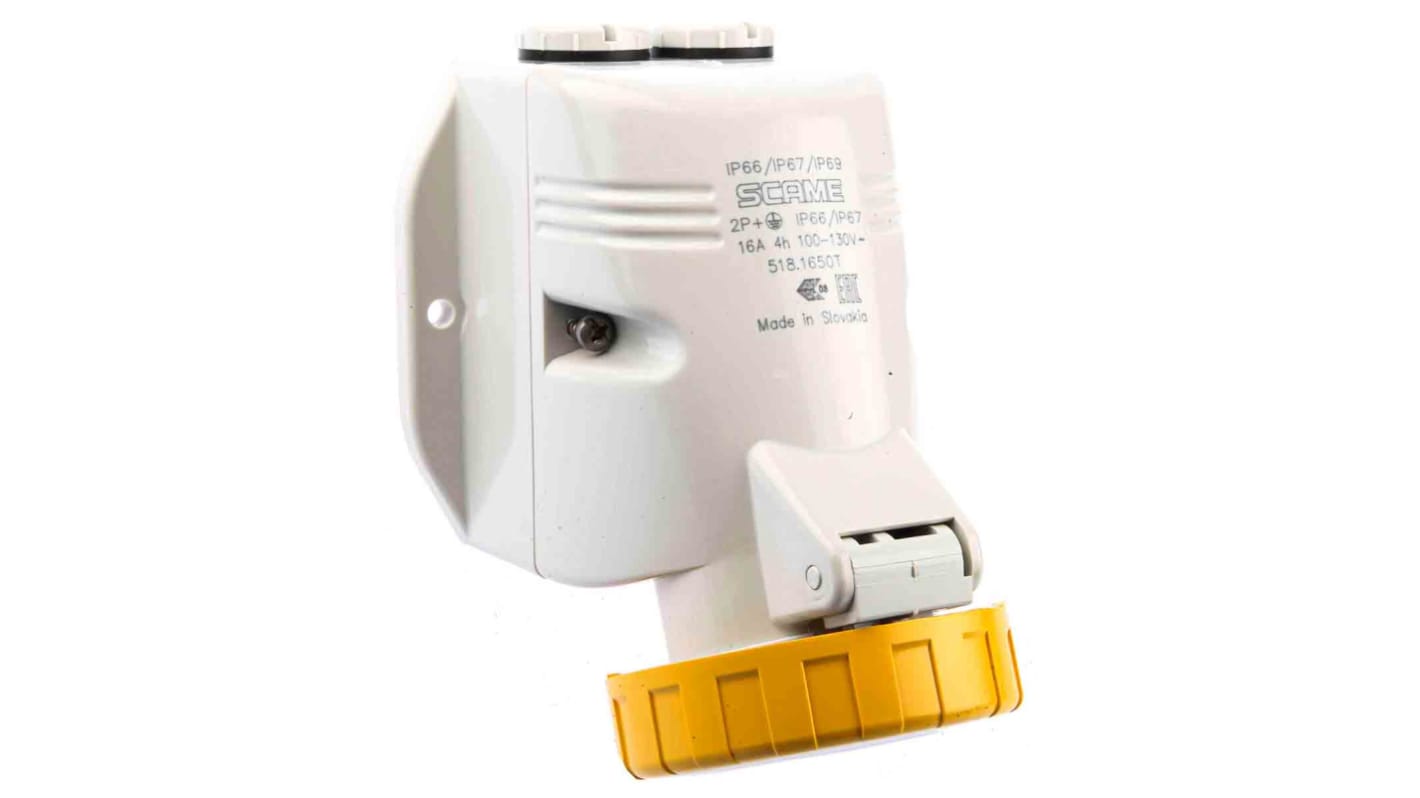

Scame IP66, IP67 Yellow Wall Mount 2P + E Industrial Power Socket, Rated At 16A, 110 V
- RS Stock No.:
- 781-2709
- Mfr. Part No.:
- 518.1650T
- Brand:
- Scame
Bulk discount available
Subtotal (1 unit)*
£33.95
(exc. VAT)
£40.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 156 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £33.95 |
| 10 + | £32.22 |
*price indicative
- RS Stock No.:
- 781-2709
- Mfr. Part No.:
- 518.1650T
- Brand:
- Scame
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Scame | |
| Current Rating | 16A | |
| Plug/Socket | Socket | |
| Pole Format | 2P + E | |
| Voltage Rating | 110 V | |
| Mounting Type | Wall Mount | |
| Gender | Female | |
| Termination Method | Screw | |
| IP Rating | IP66, IP67 | |
| Colour | Yellow | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Scame | ||
Current Rating 16A | ||
Plug/Socket Socket | ||
Pole Format 2P + E | ||
Voltage Rating 110 V | ||
Mounting Type Wall Mount | ||
Gender Female | ||
Termination Method Screw | ||
IP Rating IP66, IP67 | ||
Colour Yellow | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- SK
Scame IP66, IP67 Yellow Wall Mount 2P+E Industrial Power Socket, Rated at 16.0 A, 110.0 V
This 2-pin plus earth power socket from Scame is a practical choice for heavy-duty industrial settings. It comes with hardwearing screw terminals and nickel-plated pins and is encased in special halogen-free engineering plastic that's less likely to emit toxic gases during a fire. Its IP66 and IP67 ratings mean it's certified to keep out dust and won't break if submerged in water.
The wall-mount outlet socket has threaded knockouts that accept 2 x M20 to 3 x M25 cable glands. It's rated 110 V for voltage and 16 A for current, with an insulation resistance of 500/690 V. The socket can operate safely at temperatures between -25˚C and +40˚C.
A quality Scame product, the power connector has been stringently tested for safety. It conforms to European standards EN 60309-1 and EN 60309-2 for sockets suitable for industrial use and Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The wall-mount outlet socket has threaded knockouts that accept 2 x M20 to 3 x M25 cable glands. It's rated 110 V for voltage and 16 A for current, with an insulation resistance of 500/690 V. The socket can operate safely at temperatures between -25˚C and +40˚C.
A quality Scame product, the power connector has been stringently tested for safety. It conforms to European standards EN 60309-1 and EN 60309-2 for sockets suitable for industrial use and Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
Features and Benefits
• Industrial power connector
• Suitable for wall mounting
• Screw termination
• IEC309-type 2-pin plus earth female socket
• Nickel-plated pins
• Housing made from halogen-free engineering plastic polymer
• Voltage rating of 110 V
• Current rating of 16 A
• IP66/67 rated as dust-tight
• Operating temperature range of -25˚C to +40˚C
• Meets European safety standards EN60309-1 and EN60309-2 for plugs, socket-outlets and couplers for industrial purposes
• Suitable for wall mounting
• Screw termination
• IEC309-type 2-pin plus earth female socket
• Nickel-plated pins
• Housing made from halogen-free engineering plastic polymer
• Voltage rating of 110 V
• Current rating of 16 A
• IP66/67 rated as dust-tight
• Operating temperature range of -25˚C to +40˚C
• Meets European safety standards EN60309-1 and EN60309-2 for plugs, socket-outlets and couplers for industrial purposes
