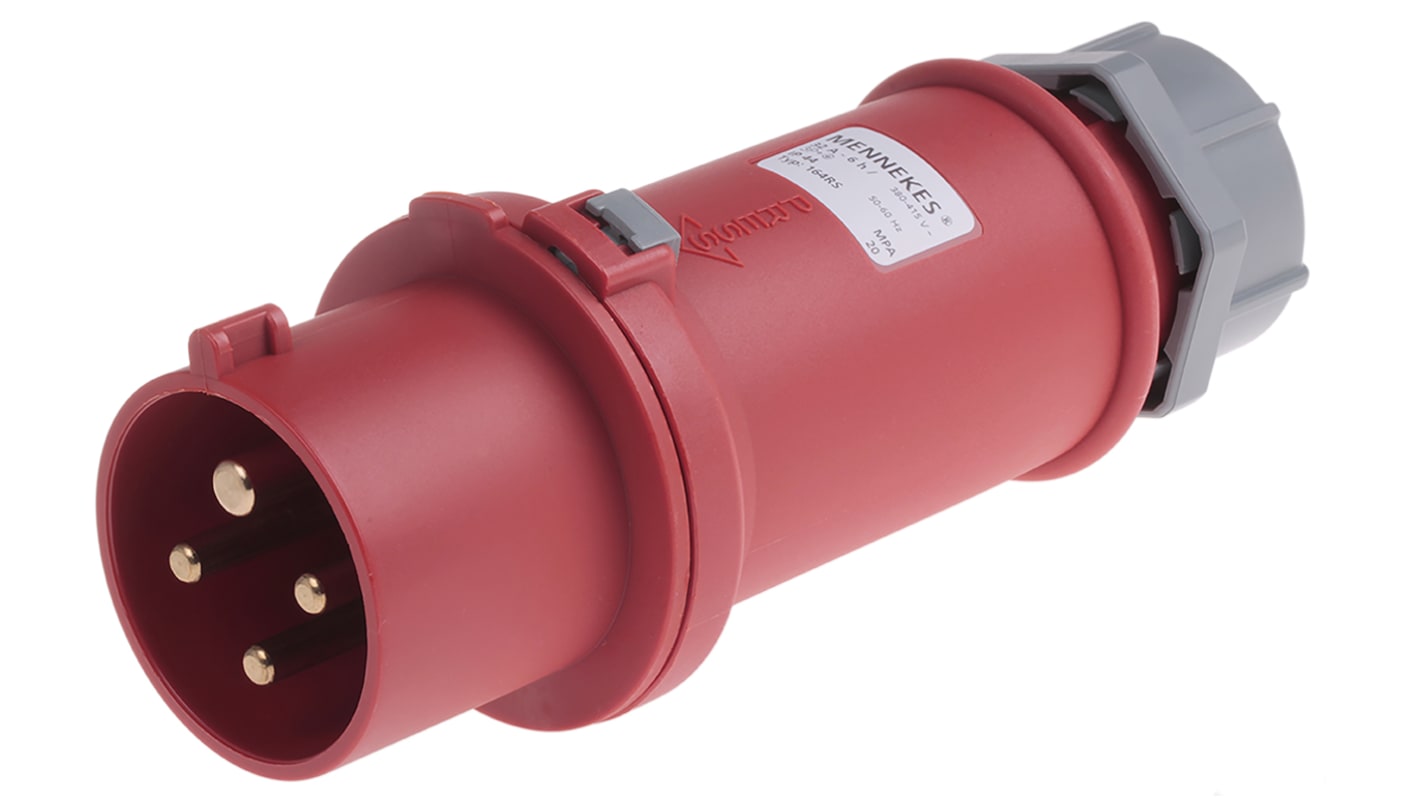

MENNEKES, ProTOP IP44 Red Cable Mount 4P Straight Industrial Power Connector Zone 22, 32A, 400V Phase Inverter
- RS Stock No.:
- 530-6139
- Mfr. Part No.:
- 164
- Brand:
- MENNEKES
Stock information currently inaccessible
- RS Stock No.:
- 530-6139
- Mfr. Part No.:
- 164
- Brand:
- MENNEKES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MENNEKES | |
| Product Type | Industrial Power Connector | |
| Current | 32A | |
| Pole Format | 4P | |
| Connector Gender | Male | |
| Voltage | 400V | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Screw | |
| Series | ProTOP | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 55°C | |
| IP Rating | IP44 | |
| Colour | Red | |
| Standards/Approvals | No | |
| Hazardous Area Certification | Zone 22 | |
| Cable CSA | 2.5, 6mm² | |
| Low Voltage | No | |
| Phase Inverter | Yes | |
| Select all | ||
|---|---|---|
Brand MENNEKES | ||
Product Type Industrial Power Connector | ||
Current 32A | ||
Pole Format 4P | ||
Connector Gender Male | ||
Voltage 400V | ||
Mount Type Cable | ||
Orientation Straight | ||
Minimum Operating Temperature -25°C | ||
Termination Type Screw | ||
Series ProTOP | ||
Contact Gender Male | ||
Maximum Operating Temperature 55°C | ||
IP Rating IP44 | ||
Colour Red | ||
Standards/Approvals No | ||
Hazardous Area Certification Zone 22 | ||
Cable CSA 2.5, 6mm² | ||
Low Voltage No | ||
Phase Inverter Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ProTOP Plugs and Connectors
ProTop connectors have a cable gland with integral protection against kinking
Front and cover fitted with thread lock and safety slide
Open Terminal Screws all facing the same direction
Mennekes ProTOP & StarTOP
Plugs and sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (nylon 6) for excellent mechanical performance from -25°C to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.,Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage.,Products are type tested to VDE.
