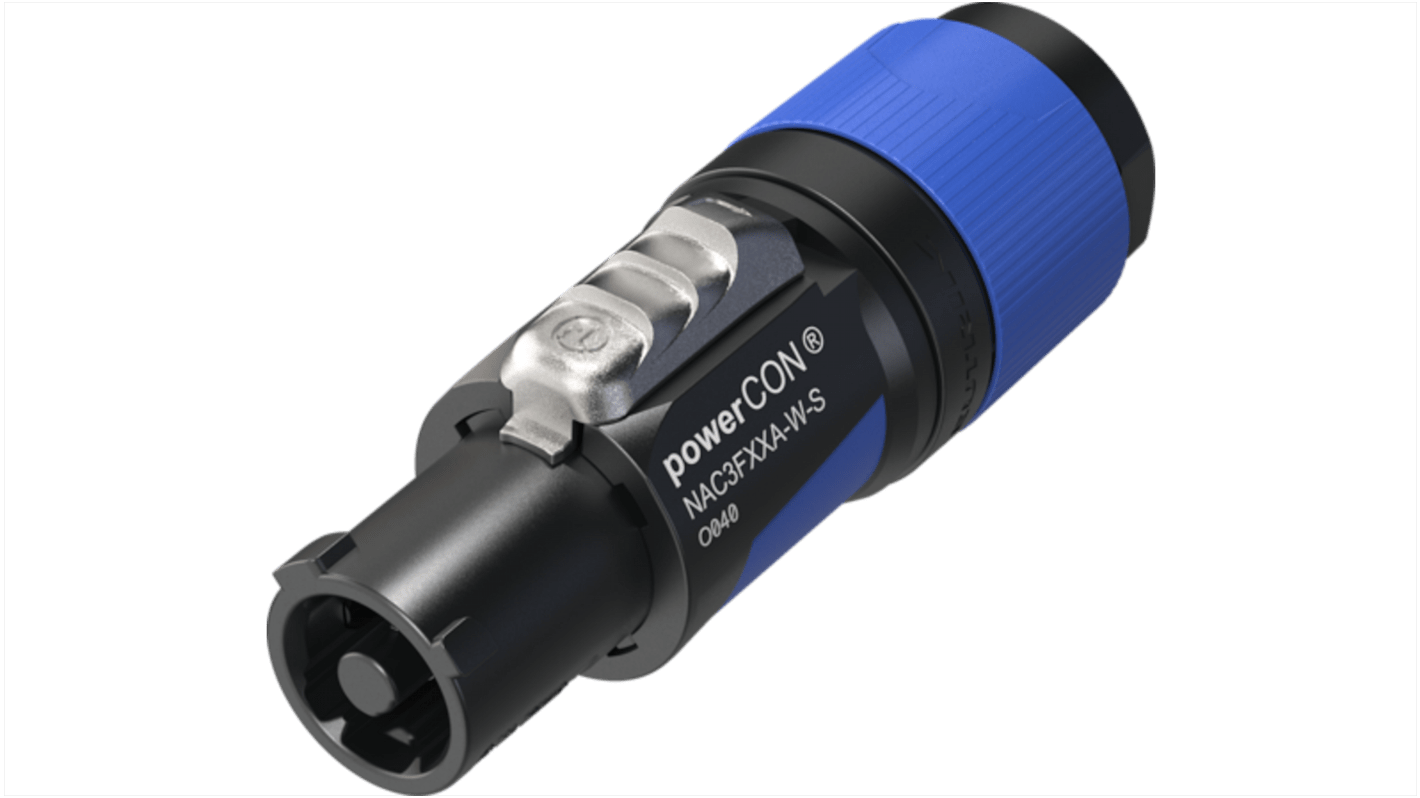

Neutrik, NAC3FX IP20 Grey, Blue Cable Mount 2P+PE Straight Industrial Power Connector, 20A, 250V ac
- RS Stock No.:
- 284-3410
- Distrelec Article No.:
- 304-06-707
- Mfr. Part No.:
- NAC3FXXA-W-L
- Brand:
- Neutrik
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.98
(exc. VAT)
£9.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 36 unit(s) ready to ship from another location
- Plus 140 unit(s) shipping from 28 October 2026
- Plus 100 unit(s) shipping from 12 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.98 |
| 10 - 49 | £7.61 |
| 50 + | £7.33 |
*price indicative
- RS Stock No.:
- 284-3410
- Distrelec Article No.:
- 304-06-707
- Mfr. Part No.:
- NAC3FXXA-W-L
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Product Type | Industrial Power Connector | |
| Pole Format | 2P+PE | |
| Current | 20A | |
| Voltage | 250V ac | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -33°C | |
| Series | NAC3FX | |
| IP Rating | IP20 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CSA C22.2 No. 60320-1, IEC EN 60320-1, UL 60320-1 | |
| Hazardous Area Certification | No | |
| Cable CSA | 1.5mm², 2.5mm² | |
| Colour | Grey, Blue | |
| Select all | ||
|---|---|---|
Brand Neutrik | ||
Product Type Industrial Power Connector | ||
Pole Format 2P+PE | ||
Current 20A | ||
Voltage 250V ac | ||
Mount Type Cable | ||
Orientation Straight | ||
Termination Type Screw | ||
Minimum Operating Temperature -33°C | ||
Series NAC3FX | ||
IP Rating IP20 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CSA C22.2 No. 60320-1, IEC EN 60320-1, UL 60320-1 | ||
Hazardous Area Certification No | ||
Cable CSA 1.5mm², 2.5mm² | ||
Colour Grey, Blue | ||
The Neutrik Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly. The powerCON FXXA/FXXB is a single-phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a rugged solution with a locking device is needed for a safe power connection.
Superior NEUTRIK quality standard, extremely robust and reliable
Easy and reliable twist lock system
Improved kink protection by two component bushing
