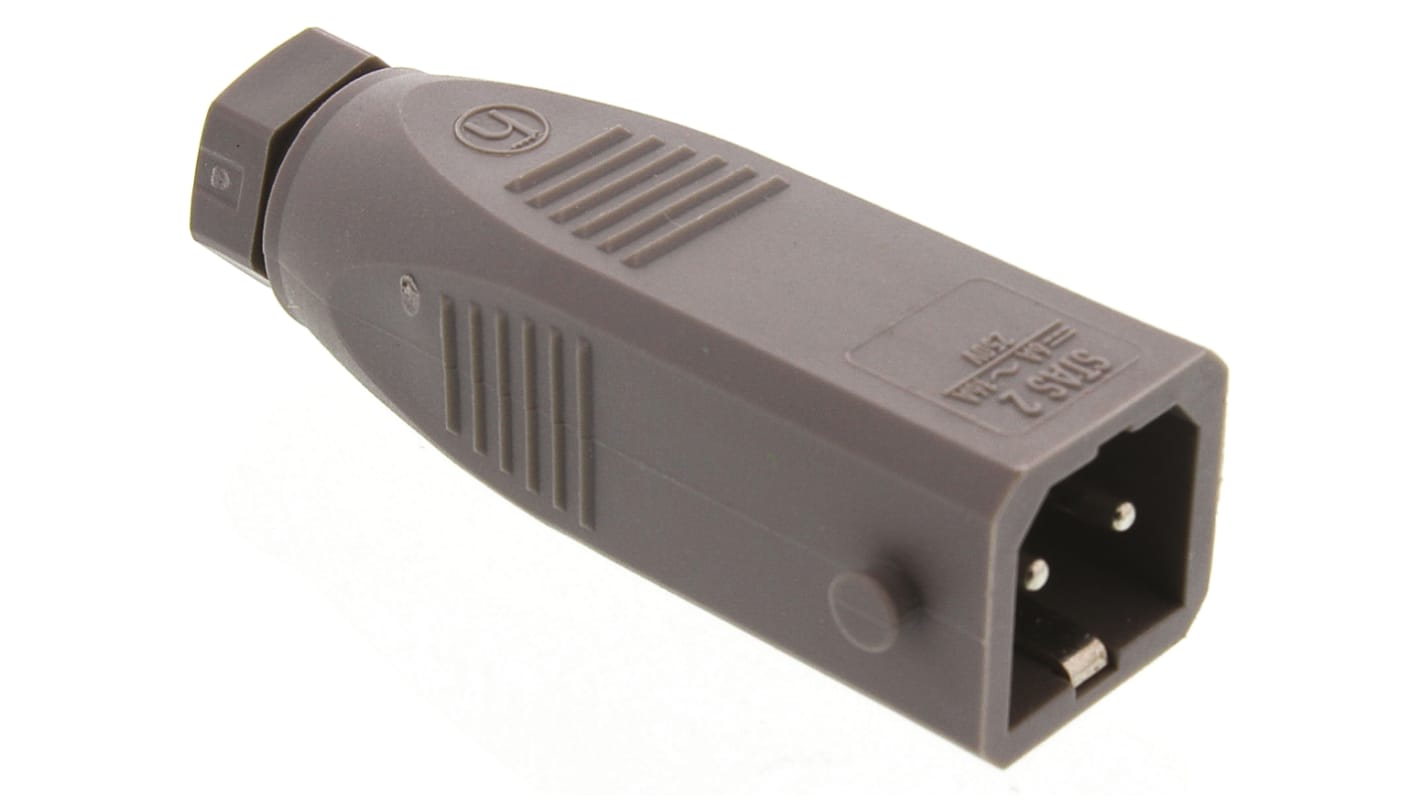

Hirschmann, ST IP54 Grey Cable Mount 2P Industrial Power Plug, Rated At 16A, 250 V
- RS Stock No.:
- 178-6799
- Distrelec Article No.:
- 143-40-501
- Mfr. Part No.:
- 930620106 STAS 2
- Brand:
- Hirschmann
Bulk discount available
Subtotal (1 unit)*
£6.21
(exc. VAT)
£7.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 526 unit(s) ready to ship
- Plus 160 unit(s) ready to ship from another location
- Plus 149 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.21 |
| 10 - 24 | £5.95 |
| 25 - 49 | £5.72 |
| 50 + | £5.46 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.62
(exc. VAT)
£7.94
(inc. VAT)
- RS Stock No.:
- 178-6799
- Distrelec Article No.:
- 143-40-501
- Mfr. Part No.:
- 930620106 STAS 2
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann | |
| Current Rating | 16A | |
| Plug/Socket | Plug | |
| Pole Format | 2P | |
| Voltage Rating | 250 V | |
| Mounting Type | Cable Mount | |
| Gender | Male | |
| Body Orientation | Straight | |
| Termination Method | Screw | |
| IP Rating | IP54 | |
| Series | ST | |
| Colour | Grey | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand Hirschmann | ||
Current Rating 16A | ||
Plug/Socket Plug | ||
Pole Format 2P | ||
Voltage Rating 250 V | ||
Mounting Type Cable Mount | ||
Gender Male | ||
Body Orientation Straight | ||
Termination Method Screw | ||
IP Rating IP54 | ||
Series ST | ||
Colour Grey | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- DE
Cable Plugs & Sockets
These Hirschmann brand cable mounted connectors are robust and compact, ideal for mains and control lead connection.
Rated at IP54, they are protected against dust and splashes and approved for world-wide use. Each connector is also vibration proof, and can be assembled as required.
Plugs are available with strain relief, safety brackets and in straight or right angle variants. There are also panel mounted and surface mounted socket variants available.
Rated at IP54, they are protected against dust and splashes and approved for world-wide use. Each connector is also vibration proof, and can be assembled as required.
Plugs are available with strain relief, safety brackets and in straight or right angle variants. There are also panel mounted and surface mounted socket variants available.
Belden Hirschmann Male Industrial Power Plug, 16A, 250V AC/DC - ST Series - 930620106 STAS 2
Maintain a stable connection to machines with this rugged power plug from Belden Hirschmann. It's specifically designed for high voltage applications up to 250V AC/DC. The contact material is made of CuZn (zinc-copper), which has excellent conductivity for reliable power transmission. Thanks to the durable PA (polyamide) housing material, it's able to operate safely in temperatures ranging from -30ºC to +90ºC. This unit comes with an earth pin that boosts safety by protecting users from electric shocks.
Features & Benefits
• Low 5mOhm (megaohms)contact resistance for reliable signal transmission
• Vibration-proof design makes it suited for installation in industrial settings
• Vibration-proof design makes it suited for installation in industrial settings
Applications
• Computer networks• Telecommunications• Electrical appliances• Office buildings• Maritime equipment
Is this cable connector protected against dust and water?
Yes, it is. This unit has an IP54 (ingress protection) rating, which means it has partial protection from dust contamination and can resist splashes of water from all directions.
What are the dimensions of this connector?
This connector has an overall length of 48mm, a height of 17mm and a width of 18mm.
ST Series
Mains power and control lead connectors for use with small drives, lighting systems, power supplies with more stringent requirements and power and control lead connections to appliances and machinery.,All contacts are screw termination. Cable plugs and sockets are available with or without internal strain relief and panel and surface mount connectors come with rubber sealing gaskets. All connectors are protected to IP54 when plugged together using the security clip.
