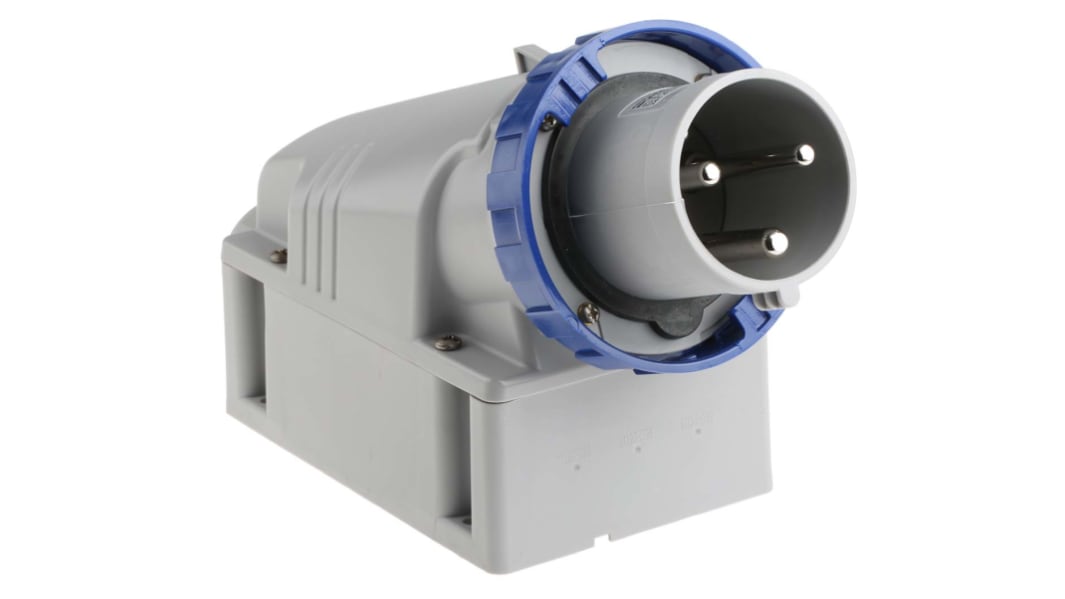

Scame IP67 Blue Wall Mount 2P + E Industrial Power Plug, Rated At 63A, 230 V
- RS Stock No.:
- 125-4468
- Mfr. Part No.:
- 245.6393T
- Brand:
- Scame
Subtotal (1 unit)*
£188.13
(exc. VAT)
£225.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 66 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £188.13 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£142.46
(exc. VAT)
£170.95
(inc. VAT)
- RS Stock No.:
- 125-4468
- Mfr. Part No.:
- 245.6393T
- Brand:
- Scame
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Scame | |
| Current Rating | 63A | |
| Plug/Socket | Plug | |
| Pole Format | 2P + E | |
| Voltage Rating | 230 V | |
| Mounting Type | Wall Mount | |
| Gender | Male | |
| Body Orientation | Straight | |
| IP Rating | IP67 | |
| Colour | Blue | |
Select all | ||
|---|---|---|
Brand Scame | ||
Current Rating 63A | ||
Plug/Socket Plug | ||
Pole Format 2P + E | ||
Voltage Rating 230 V | ||
Mounting Type Wall Mount | ||
Gender Male | ||
Body Orientation Straight | ||
IP Rating IP67 | ||
Colour Blue | ||
- COO (Country of Origin):
- IT
Scame IP67 Blue Wall Mount 2P+E Industrial Power Plug, Rated At 63.0 A, 230.0 V
Need a secure power connection for use in an industrial environment? This panel-mounted plug from the Scame range will stand up to the kind of environmental stresses found in a plant or fabrication facility. It's housed in durable high-strength plastic and its IP67-rated housing means it stays watertight at a depth of one metre for up to 30 minutes.
This IEC309-type 2-pin plus Earth industrial power connector is voltage rated at 230 V and amp rated at 63 A. It has a straight body orientation and is fitted with a colour-coded locking ring to identify it as a component in the 200-250 V range.
The plug has been exhaustively tested to ensure its safety. That means it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS).
These plugs are designed for wall mounting in industrial settings and commercial environments.
This IEC309-type 2-pin plus Earth industrial power connector is voltage rated at 230 V and amp rated at 63 A. It has a straight body orientation and is fitted with a colour-coded locking ring to identify it as a component in the 200-250 V range.
The plug has been exhaustively tested to ensure its safety. That means it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS).
These plugs are designed for wall mounting in industrial settings and commercial environments.
Features and Benefits
• Industrial power connector plug
• 2-pin + Earth
• Suitable for wall mounting
• Voltage rating of 230 V
• Current rating of 63 A
• Rated as an IP67 watertight enclosure
• Cable outlet dimension of M40 x 1.5 mm
• 2-pin + Earth
• Suitable for wall mounting
• Voltage rating of 230 V
• Current rating of 63 A
• Rated as an IP67 watertight enclosure
• Cable outlet dimension of M40 x 1.5 mm
