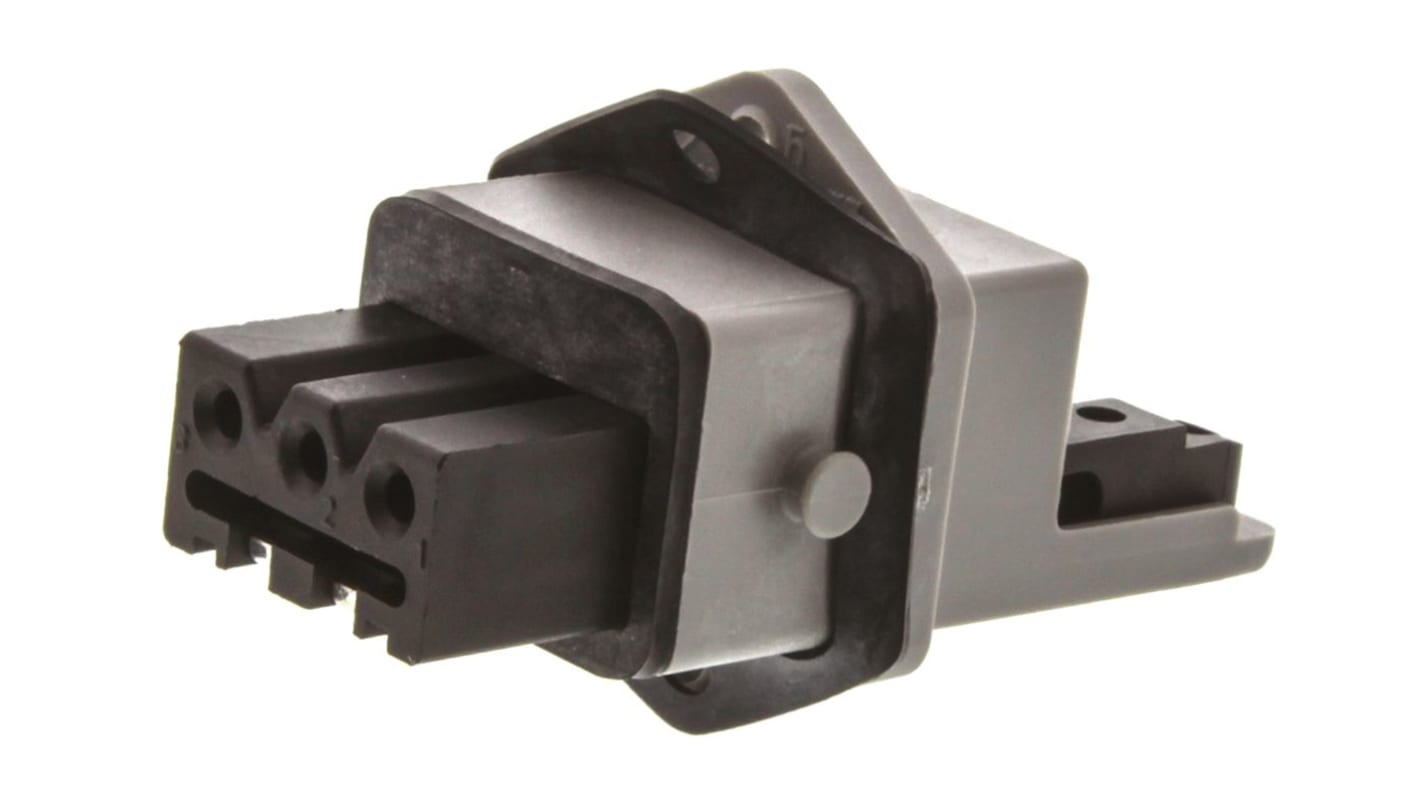

Belden Series ST Industrial Power Connector, 16A Current Rating, 3P + E Pole Format - 932142106 STAKEI 3 N

This industrial power connector is designed for reliable and robust electrical connections in demanding environments. The female socket type features a 3P + E format, supporting a current rating of 16A and voltage ratings of 250V and 400 V. With IP54 protection, it ensures resistance to dust and splashes, making it suitable for various applications. This front mount socket accommodates conductor sizes up to 1.5 mm² and operates effectively within a temperature range of -30 °C to +90 °C.

Features & Benefits

• Designed for a maximum current rating of 16A for various applications
• IP54 rating ensures protection against dust and moisture
• Capable of handling voltage ratings of 250V and 400V
• Straight body orientation allows easy installation and maintenance
• Utilises screw termination for secure and reliable connections
• Suitable for use in high-temperature environments up to +90 °C

Applications

• Utilised in machinery and automation equipment
• Effective for power distribution in electrical installations
• Compatible with industrial settings requiring reliable connections
• Ideal for environments with exposure to moisture and dust
• Used in electrically powered tools and devices

How does the IP rating influence usage in various environments?

The IP54 rating ensures the connector is protected against limited dust ingress and splashing water, making it suitable for various industrial settings. This feature enhances its durability and reliability in challenging conditions.

What type of materials are used in the construction of electrical contacts?

The contacts are made from Cu Zn (copper-zinc) with a Sn (tin) surface finish, providing excellent conductivity and corrosion resistance, essential for maintaining reliable electrical connections.

What maximum conductor size can be accommodated for connections?

The connector is designed to handle conductor sizes up to 1.5 mm², allowing flexibility in electrical applications while ensuring secure terminations.

Can this connector be mounted in tight spaces?

Yes, the straight body orientation and compact design of the connector make it suitable for installation in various environments, including restricted spaces, where front mounting can be beneficial.

ST Series

Mains power and control lead connectors for use with small drives, lighting systems, power supplies with more stringent requirements and power and control lead connections to appliances and machinery.,All contacts are screw termination. Cable plugs and sockets are available with or without internal strain relief and panel and surface mount connectors come with rubber sealing gaskets. All connectors are protected to IP54 when plugged together using the security clip.

Units	Per unit
1 - 9	£5.06
10 - 24	£4.85
25 - 49	£4.65
50 +	£4.43

Select all	Attribute	Value
	Brand	Hirschmann
	Current Rating	16A
	Plug/Socket	Socket
	Pole Format	3P + E
	Voltage Rating	250 V, 400 V
	Mounting Type	Panel Mount
	Gender	Female
	Body Orientation	Straight
	Termination Method	Screw
	Series	ST
	IP Rating	IP54
	Colour	Black, Grey
	Maximum Operating Temperature	+90°C
	Minimum Operating Temperature	-30°C

	Select all
	Brand Hirschmann
	Current Rating 16A
	Plug/Socket Socket
	Pole Format 3P + E
	Voltage Rating 250 V, 400 V
	Mounting Type Panel Mount
	Gender Female
	Body Orientation Straight
	Termination Method Screw
	Series ST
	IP Rating IP54
	Colour Black, Grey
	Maximum Operating Temperature +90°C
	Minimum Operating Temperature -30°C

Hirschmann, ST IP54 Black, Grey Panel Mount 3P + E Industrial Power Socket, Rated At 16A, 250 V, 400 V
